microphone using the full zinc alloy body, dual USB interface, dual headset interface. The main features are: support for 8 conference modes, support for video tracking, conference services, check-in, voting, 3-language display, 48V dual backup.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
HUAIN
-
Model Number:
-
HY-S85DKA1
-
Product Name:
-
Conference System Microphone
-
Technology:
-
DSP/DDOV
-
Lcd Screen:
-
3.5 "LCD touch screen
-
Certificate:
-
CE RoHS FCC Certificate
-
Suitable for:
-
Multimedia Conference Room
-
Color:
-
Black
-
Material:
-
Aluminum Alloy
-
Control mode:
-
Touch glass panel
-
Input/Output Interface:
-
8 PIN XLR
-
Application:
-
Conference Room Meeting Solution
Quick Details
-
Type:
-
Audio Conference System
-
Function:
-
discussion
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
HUAIN
-
Model Number:
-
HY-S85DKA1
-
Product Name:
-
Conference System Microphone
-
Technology:
-
DSP/DDOV
-
Lcd Screen:
-
3.5 "LCD touch screen
-
Certificate:
-
CE RoHS FCC Certificate
-
Suitable for:
-
Multimedia Conference Room
-
Color:
-
Black
-
Material:
-
Aluminum Alloy
-
Control mode:
-
Touch glass panel
-
Input/Output Interface:
-
8 PIN XLR
-
Application:
-
Conference Room Meeting Solution
Product Description
HUAIN Audio Conference System

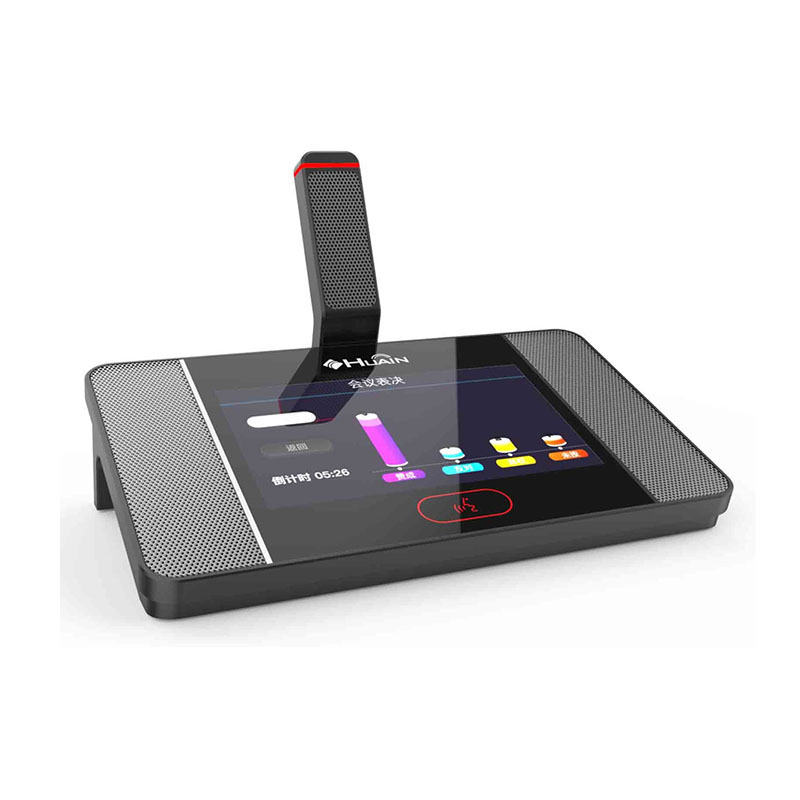

This conference system supports 240 conference microphone units, the microphone has a 3.5 "LCD fully laminated touch screen and magnetic S-type microphone pole, the effective pickup distance of up to 60-100cm.
Feature：
- Dual backup design, support for hand-in-hand meetings with phantom power or Dante dual-system audio signal output at the same time.
- Magnetic pluggable microphone pole, built-in high-fidelity 2 × 9.7 mm gold-plated condenser pickup head.
- Zinc-aluminum alloy microphone pole, microphone pole with 0.4mm high-density acoustic interference holes, built-in auto-gain AGC function, the effective pickup distance up to 60-100cm.
- All zinc aluminum alloy body, 6 level touch glass panel, with waterproof and dustproof function.
- Support the "ring hand" connection, the microphone comes with a professional 8-core or CAT5 cable.
- Support the number of limitations, first-in-first-out, last-in-first-out, the chairman allows (application to speak), voice-activated, time-limited speech, queuing up to speak, free discussion of the eight conference modes.
- Built-in multi-channel internal communication and conference services, support for sending tea, paper, pens, waiters and other demand notification, support for Web page service screen to handle requests for services.
- Expandable simultaneous interpretation function, support up to 64 languages.
|
Models
|
Longitudinal beam array conference unit
|
|
System capacity
|
Single channel 20 sets
|
|
Type of microphone
|
2 x 9.7mm gold-plated microphone core
|
|
Frequency response
|
30Hz~20KHz
|
|
Signal to noise ratio
|
>92dB
|
|
Dynamic range
|
98dB
|
|
The connection method
|
T-shaped head, ring hand in hand ’PNP'
|
|
Connect the head
|
Large 8-core (or mesh)
|
|
Number of units opened
|
1/2/3/4/5/6/7/8/9 or all
|
|
Number of the function
|
You can customize the ID number
|
|
The power consumption of the unit
|
2.5 W.
|
|
Equivalent noise
|
20 the dba (SPL)
|
|
Maximum loudest pressure level
|
136 db (THD < 3%)
|
|
Headphone output interface
|
Φ3.5mm solid jack
|
|
Chairman of the number
|
150 units
|
|
VIP number
|
More than one
|
|
color
|
Dark blue (black glass panel)
|
|
The weight of the
|
1.35 Kg
|
|
Installation dimensions
|
Mm (excl. microphone)
|
|
installation
|
Desktop type
|
