Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JNDO
-
Model Number:
-
JNDO
-
Motor:
-
6.8hp/5.0kw 12V, Series Wound motor.Usd2 more for 24V
-
Certification:
-
CE
-
Gear train:
-
3-Stage Planetary
-
Gear reduction ratio:
-
364:1
-
Cable:
-
D7/16''x92''(d11mmx28m)
-
Drum size:
-
D89mmx224mm
-
Gross weight:
-
108lbs(49kg)
-
Color::
-
Customized
-
Sling Type::
-
Wire/Synthetic Rope
-
Voltage::
-
12v/24v
Quick Details
-
Power Source:
-
Electric
-
Application:
-
truck
-
Capacity:
-
15000lbs
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
JNDO
-
Model Number:
-
JNDO
-
Motor:
-
6.8hp/5.0kw 12V, Series Wound motor.Usd2 more for 24V
-
Certification:
-
CE
-
Gear train:
-
3-Stage Planetary
-
Gear reduction ratio:
-
364:1
-
Cable:
-
D7/16''x92''(d11mmx28m)
-
Drum size:
-
D89mmx224mm
-
Gross weight:
-
108lbs(49kg)
-
Color::
-
Customized
-
Sling Type::
-
Wire/Synthetic Rope
-
Voltage::
-
12v/24v
Product Description
Product Application
China JNDO Winch Manufacture Co., Ltd is a professional manufacturer of electric winches for custom off-road vehicles, utility vehicles, ATVs, boats and yachts, electric winch, electric winches etc.We provide a wide range of electric winches from 2000lbs to 16800lbs, hand winches and custom off-road accessories. We sincerely welcome clients at home and abroad to visit and cooperate with us. Our products, electric winch, electric winches are widely exported to Europe, America, Oceania and Middle East, etc, and are well received by auto wholesalers, large supermarkets and off-road vehicle manufacturers.
|
SPECIFICATIONS FOR 12V 15000LBS ELECTRIC WINCH
|
|
|
|
|||
|
Rated Line Pull
|
|
15000LB(6804kg) single-line
|
|
|||
|
Motor
|
|
6.8hp/5.0kw 12V, Series Wound motor Usd2 more for 24V
|
|
|||
|
Gear Train
|
|
3-stage planetary
|
|
|||
|
Gear Reduction Ratio
|
|
364:1
|
|
|||
|
Clutch
|
|
turn 180°
|
|
|||
|
Cable
|
|
synthetic ropeφ7/16”×92” (φ11mm×28m)
|
|
|||
|
Drum Size
|
|
φ3.5”×8.82”(φ89mm×224mm)
|
|
|||
|
Overall Dimensions
|
|
(L×W×H)22.3”×8.5”×9.7”(567×215×246mm)
|
|
|||
|
Gross Weight
|
|
108lbs(49kg)
|
|
|||
|
Duty Cycle
|
|
Intermittently
|
|
|||
|
Fairlead
|
|
4-way roller fairlead
|
|
|||
|
Package
|
|
1pc/box, 25.7" ×10.7"×16.2"(650×270×410mm)
|
|
|||
|
Mounting Bolt Pattern
|
|
10”x4.5”(254mm x 114.3mm )
|
|
|||
|
Remote Control
|
|
Included
|
|
|||
|
Note
|
|
clutch style, solenoid, brake system can be chosen, different cost
|
|
|||
|
Noice
|
|
|
|
|||
|
1) Do not use winch as a hoist, do not use for transportaion of people.
|
|
|
|
|||
|
2) Don't operate and spool under full load over one minute continuously.
|
|
|
|
|||
|
3) While motor is overtheating, please stop for a while to cool down.
|
|
|
|
|||
|
4) Limited warranty.
|
|
|
|
|||

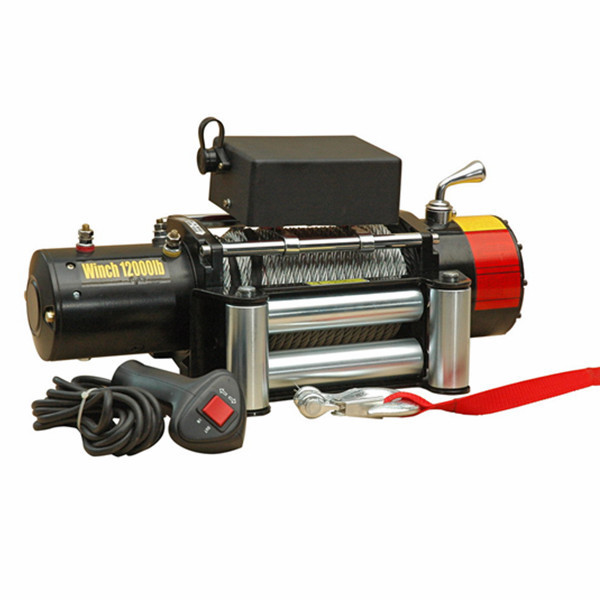

Detailed Images
