Quick Details
-
Type:
-
Wiring
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Cantrack
-
Model Number:
-
TK08A_4G
-
Network:
-
LTE/GSM/GPRS
-
Frequency(4G+2G):
-
LTE-FDD B1/B2/B3/B4/B5/B7/B8/B28/B66 GSM :850/900/1800/1900Mhz
-
Module & Chipset:
-
SIMCom LTE Cat 1 Module A7670 Series+AT6558R
-
Working voltage:
-
9-90VDC
-
GPRS Protocol:
-
Class12, TCP/IP
-
APP name:
-
SecumorePlus
-
Certification:
-
CE
-
Size:
-
85*45*17mm
Quick Details
-
Positioning Mode:
-
GSM, GPS, GPRS, LBS, AGPS, Beidou, Real-Time Positioning, Emergency Positioning, Power Saving Mode
-
Function:
-
ANTI-SHOCK, Fast Charging, Voice Monitor, street view, ACC Detection, Over-Speed Warning, Wheel Path Playback, Geofence, antitheft Alarm, SOS alarm, Cut fuel
-
Data Storage:
-
Cloud Storage
-
Type:
-
Wiring
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Cantrack
-
Model Number:
-
TK08A_4G
-
Network:
-
LTE/GSM/GPRS
-
Frequency(4G+2G):
-
LTE-FDD B1/B2/B3/B4/B5/B7/B8/B28/B66 GSM :850/900/1800/1900Mhz
-
Module & Chipset:
-
SIMCom LTE Cat 1 Module A7670 Series+AT6558R
-
Working voltage:
-
9-90VDC
-
GPRS Protocol:
-
Class12, TCP/IP
-
APP name:
-
SecumorePlus
-
Certification:
-
CE
-
Size:
-
85*45*17mm

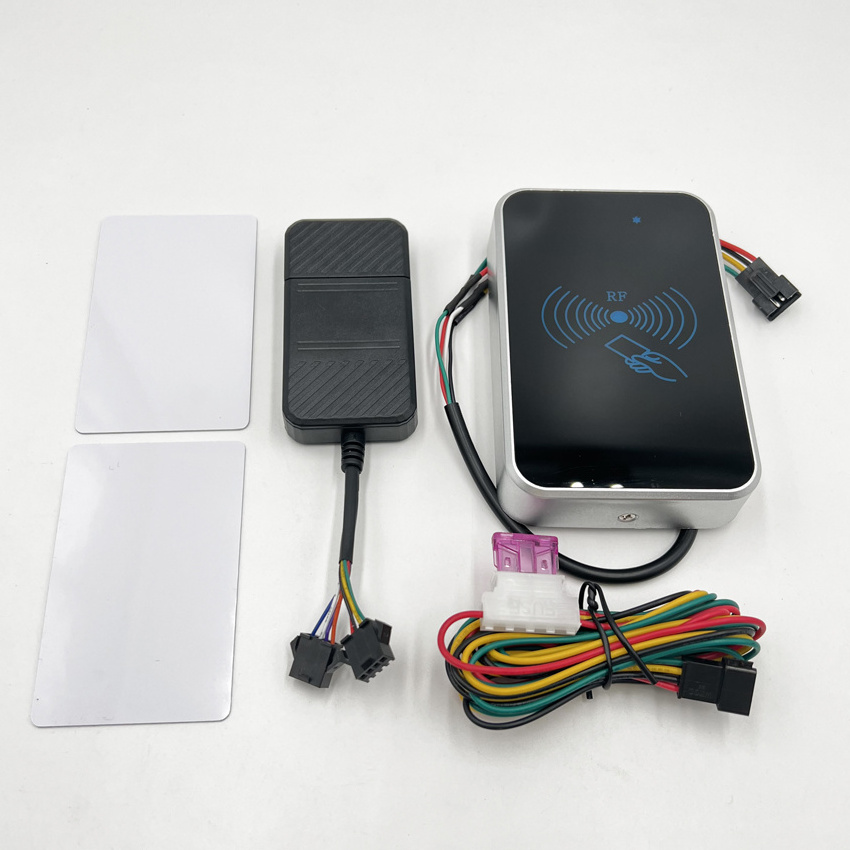

4G RFID reader GPS for Driver Identification RFID gps tracking sticker control Ignition ON OFF
Special designed RFID with GPS for Driver identification, Supply electricity of car after swiping the Card on Reader.
Description
TK08A_4G is a GPS Tracker working based on GSM/GPRS network and GPS satellites, this product can locate and monitor any remote targets with built-in antennas by SMS or GPRS.With its compact design, the device can easily connect with car battery to acquire real time data, such as car position, ignition status, speed data, also can remotely disable the engine to stop car for anti-theft purpose and trigger SOS alarm via pressing button. And all these information will be upload via GPRS to server for further analysis, statistics, storage and more extensive application.
Production Application
* Car service shop
* Vehicle insurance
* Motorcycle and electric bike anti-theft
* Working range 9-90V DC
Production Features
* Positioning and Tracking: Through the on-line Platform or the APP to locates at times, and get the working status.
* Remote Controlling oil and circuit: you can control the oil and circuit via the unit by SMS in anywhere and anytime.
* Power cut-off Alert: When the device removed from car battery, the unit will send the power cut-off alert to authorized
numbers.
* Overspeed Alert: Send SMS to the unit to start the movement alert function. When the vehicle is overspeed, the unit will send the overspeed alert to authorized numbers.
* Geo-fence: Set up a geo-fence for the unit to restrict its movements within a district. The unit will send the message to
authorized numbers when it breaches the district.
* Resume the unit: send SMS to resume the default of unit.
* ACC statuc checking; ACC on alarm, cutting off power alarm.
* Press SOS button to trigger the emergency alarm to APP and server in urgent case.
* Alarm speaker for alarm sound in real time
|
Content
|
Specs.
|
|
Dim.
|
85*45*17mm
|
|
Network
|
LTE/GSM/GPRS
|
|
Frequency(4G+2G)
|
LTE-FDD B1/B2/B3/B4/B5/B7/B8/B28/B66
GSM :850/900/1800/1900Mhz |
|
Module & Chipset
|
SIMCom LTE Cat 1 Module
A7670 Series+AT6558R |
|
GPS channel
|
66
|
|
Tracking sensitivity
|
-165dBm
|
|
Location accuracy
|
<5 meters CEP
|
|
Time To First Fix(open sky)
|
Cold status <35s
Hot status <1s |
|
Working voltage
|
9-90VDC
|
|
GPRS Protocol
|
Class12, TCP/IP
|
|
Operating temp.
|
-20°C to +70°C
|
|
Back up battery
|
200mAh /3.7V Li-Polymer battery
|
|
Standby & Working consumption
|
5mA~50mA
|
|
GSM / GPS antenna
|
Built-in
|
|
G-Sensor
|
Support
|
|
Memory storage
|
Support
|
|
Ignition status detection
|
Support
|
|
Configuration Mode
|
PC – USB/GPRS /SMS
|
|
OTA
|
Support
|
FAQ
Cantrack 4G gps tracker Gps Tracking Device for Vehicles with remote controller RFID anti theft alarm SOS alarm
GPS Tracking system
GPS Tracking device
4G GPS tracker
Vehicle GPS tracker Tracking device for car
A: Yes, Cantrack is the real final manufacturer have been in GPS field since 2010 till now, focusing
on OEM & ODM Customize project. Not like some companies only assemble without technology.
on OEM & ODM Customize project. Not like some companies only assemble without technology.
Welcome you visit or Video call anytime.
Q: What should i prepare to use GPS tracker?
A: 2G /4G SIM card with data activated (SIM type depends on which GPS device you will order)
Q: What is the main using for GPS Tracker?
A: Car/Scooter/Ebike/Kids/Elderly people/Asset/Container/Pet/Animal Tracking and anti-lost, Cantrack has different tracking solutions no matter anything you want to track.
Q: How to use GPS tracker to get location ?
A: Web-based GPS tracking system. Android APP/IOS APP tracking
Q: Can i monitor more targets at a time?
A: Yes, you can monitor more targets at the same time after we created an admin manage account for you. Also support create Sub-user for your customer.
Q: Is it possible to make customzation according our demand?
A: Yes, Cantrack will offer OEM ODM for Print LOGO on Product case/BOX, or make your own design mold.
Q: Order minimum quantity
A: You can test samples before bulk orders.
Q: Payment Method
A: Paypal, Alibaba order,Bank transfer
Q: GPS tracker warranty
A: 1 year
Q: Certifications?
A: CE/FCC/GSMA/RoHS/MSDS/UN38.3
Q: Shipping Method
A: Express: DHL/Fedex/UPS/Aramex etc; By Air or By sea.
Delivery time : 4-7 days depends on which exress you choose.
