- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
XINXIANG GREAT FILTER
-
Dimension(L*W*H):
-
595x595x500
-
Weight:
-
1 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-

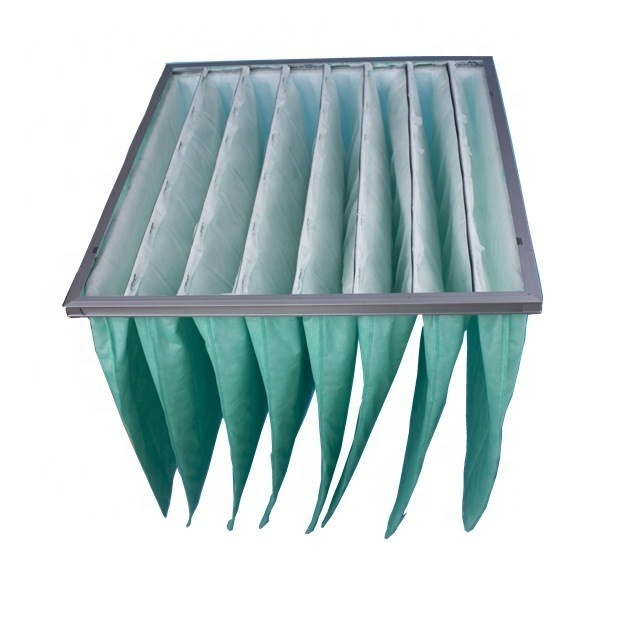

Panel Air Pocket medium efficiency filter 595x595x500 8bags
-
Size:
-
595x595x600
-
Bag:
-
8bags
-
Frame:
-
Aluminium
-
Application:
-
Cleanroom
-
Usage:
-
to clean air
-
Stype:
-
Panel filter ,Pleat filter ,pocket filter
-
Protect Net:
-
with double spray wire and double-sided galvanized wire mesh
-
Mainly used in:
-
Central air conditioning and central ventilation system pre filtration
Quick Details
-
Core Components:
-
Filter element
-
Efficiency:
-
45%-95%
-
Porosity:
-
5um
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
XINXIANG GREAT FILTER
-
Dimension(L*W*H):
-
595x595x500
-
Weight:
-
1 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
Panel Air Pocket medium efficiency filter 595x595x500 8bags
-
Size:
-
595x595x600
-
Bag:
-
8bags
-
Frame:
-
Aluminium
-
Application:
-
Cleanroom
-
Usage:
-
to clean air
-
Stype:
-
Panel filter ,Pleat filter ,pocket filter
-
Protect Net:
-
with double spray wire and double-sided galvanized wire mesh
-
Mainly used in:
-
Central air conditioning and central ventilation system pre filtration
Welcome to Inquiry .Welcome to Comstomize.
Please tell us following information Photo , Efficiency, Precision,Life working time , Filter Media , Frame Materials
|
Efficiency
|
primary
|
medium
|
high
|
|||
|
Precision
|
5um
|
3um
|
0.3um
|
|||
|
Efficiency
|
45%-95%
|
45%-95%
|
95%-99.99995%
|
|||
|
|
G1 45%-60%
|
F5 45%-55%
|
H10
|
|||
|
|
G2 60%-70%
|
F6 55%-65%
|
H11 9
|
|||
|
|
G3 70%-80%
|
F7 65%-75%
|
H12
|
|||
|
|
G4 80%-95%
|
F8 75%-85%
|
H13
|
|||
|
|
|
F9 85%-95%
|
H14
|
|||
|
Life
|
About 2 months
|
6-8months
|
1year
|
|||
|
Filter Media
|
Filter cotton
|
Rayon
|
HV Fiber Glass
|
|||
|
|
Non-woven
|
Filter Cotton
|
Wood pulp Paper
|
|||
|
|
Nylon Mesh
|
Filter Cotton
|
Wood pulp Paper
|
|||
|
Type
|
Pocket or Panel
|
Pocket or Panel
|
Panel or V-W type
|
|||
|
Frame Materials
|
Paper, aluminum alloy, ABS plastic (high price) galvanized sheet, stainless steel
|
|
|
|||
|
Activated carbon air filter Yes or NO
|
|
|
|
|||
|
High Temperature Yes or NO
|
|
|
|
|||
Application：Panel Air Pocket medium efficiency filter 595x595x500 8bags
1. Capture 1-5um particles dust and various suspended solids.
2. Adopting thermal melting technology, the structure is stable, and the risk of breaking leakage is reduced.
3. Large air flow.small resistance.High dust holding capacity.
4.reusable clean use.
5. type: frameless and frame bag type
6.filter material: special non-woven fabric or glass fiber
7.efficiency: 60% ~ 95%@1 ~ 5um (colorimetric method)
8.use the highest temperature, humidity: 80, 80%
Application for Panel Air Pocket medium efficiency filter 595x595x500 8bags
Application:The primary filter is suitable for primary filtration of air conditioning system. It is mainly used to filter dust particles above 5 um.
Style : Panel filter ,Pleat filter ,pocket filter
Frame material : paper frame, aluminum frame, galvanized iron frame,
filtration materials: non-woven nylon nets, activated carbon filters, metal mesh, protective net :with double spray wire and double-sided galvanized wire mesh
Advantage:for Panel Air Pocket medium efficiency filter 595x595x500 8bags
1.large effective filter area , large dust content, small resistance , the large ventilation capacity
2.the frame and the supporting frame can be used repeatedly; you can only change, and the operation cost is greatly reduced. Widely used in the electronic, pharmaceutical, medical, food and other industries filtration system, is the best structure of the medium efficiency filter.
It has the advantages of low price, light weight, good versatility and compact structure.
Mainly used:for Panel Air Pocket medium efficiency filter 595x595x500 8bags
1.Central air conditioning and central ventilation system pre filtration
2.Large scale air compressor pre filtration
3.Clean air return system
4.Pre filtration of local HEPA filters
5.High temperature air filter, stainless steel frame, high temperature resistance, filtration efficiency of 250-300 degrees
6.This efficiency filter is commonly used for primary filtration of an air conditioning and ventilation system, and is suitable for simple air conditioning and ventilation systems requiring only primary filtration.
7.G series of coarse effect air filter is divided into eight varieties, namely: G1, G2, G3, G4, GN (nylon mesh filter), GH (metal mesh filter), GC (activated carbon filter), GT (high temperature coarse effect filter).
Parameters for Pocket Primary Efficiency Filter
|
Dimension
|
Bag No
|
Flow m3 /h
|
Filtration Efficiency m2
|
|
595×595×600
|
8
|
3600
|
4.32
|
|
595×295×600
|
6
|
3400
|
2.16
|
|
595×595×500
|
6
|
3000
|
3.6
|
|
595×259×500
|
3
|
1500
|
1.8
|
|
495×495×500
|
5
|
2000
|
2.45
|
|
495×295×500
|
3
|
1200
|
1.47
|
|
495×595×600
|
6
|
3000
|
3.54
|
|
595×495×600
|
5
|
3000
|
3.54
|
Pocket medium efficiency filter Pramaters
|
Dimension
|
Bag No
|
Flow
|
Initial resistance
|
Final Resistance
|
Filtration Area
|
Dust holding Capacity
|
|
（W×H×D mm)
|
8
|
(m³/h)
|
(≤pa)
|
(≤pa)
|
m2
|
（g)
|
|
595*595*600
|
8
|
2950
|
55
|
250-300
|
6.3
|
1480
|
|
595*595*600
|
8
|
2950
|
70
|
250-300
|
6.3
|
1310
|
|
595*595*600
|
8
|
2950
|
100
|
300-400
|
6.3
|
1150
|
|
595*595*600
|
8
|
2950
|
130
|
300-400
|
6.3
|
990
|
|
595*595*500
|
8
|
2500
|
55
|
250-300
|
5.3
|
1240
|
|
595*595*500
|
8
|
2500
|
70
|
250-300
|
5.3
|
1100
|
|
595*595*500
|
8
|
2500
|
100
|
300-400
|
5.3
|
970
|
|
595*595*500
|
8
|
2500
|
130
|
300-400
|
5.3
|
830
|
|
Item
|
Flow(m³ /min)
|
Dimension（size) mm
|
|
|
|
|||
|
|
|
A
|
B
|
C
|
D
|
|||
|
15/30
|
18
|
61
|
397
|
381
|
86
|
|||
|
20/30
|
32
|
61
|
524
|
508
|
86
|
|||
|
30/30
|
40
|
61
|
776
|
760
|
86
|
|||
|
30/50
|
48
|
89
|
776
|
760
|
140
|
|||
|
Size
|
Flow
|
Initial resistance
|
Filtration Area
|
Removal odor rate
|
|
（W×H×D mm)
|
(m³/h)
|
(≤pa)
|
m2
|
（>）
|
|
592*592*21
|
1150
|
40
|
0.09
|
135
|
|
287*592*21
|
550
|
40
|
0.47
|
207
|
|
490*592*21
|
970
|
40
|
0.77
|
112
|
|
592*592*46
|
1200
|
40
|
0.97
|
67
|
|
287*592*46
|
650
|
40
|
0.52
|
112
|
|
490*592*46
|
1080
|
40
|
0.86
|
173
|
|
495*295*21
|
504
|
40
|
0.4
|
115
|
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
|
Packaging
|
|
|
|
Size
|
60 (L) * 60 (W) * 60(D)
|
|
|
Weight
|
15KG
|
|
|
Packaging Details
|
The normal package is carton box(Size: L*W*H).we will use pe film for packing or pack it according to customers special request.
|
|
1.Our Engineer have 15 years experience on filtration area
2.Full experience on exporting business .With us your money in safe,your business in safe!!
3.Fast Delivery Time:5-7days
4.Special Price
5.7*24hours after-service
6.Imported Micro Glass from USA HV Company
7.99.99% filtration efficiency !&100% Inspection Management System
