Quick Details
-
Brushless DC motor:
-
3 kW (4 hp) at 10,000 rpm
-
Drilling diameter:
-
from 5 to 40 mm
-
Drill stroke:
-
25 mm
-
Axle bore:
-
19.05 mm
-
Max rail hardness (carotadin HSS):
-
350 HB
-
Lubrication tank capacity:
-
5 L
-
Machine weight (Battery included):
-
15 KG
-
Noise level:
-
72 dB
-
Spindle rotation speed:
-
300 rpm
Quick Details
-
Dimensions (L x W x H) (mm):
-
L 430 mm*W 100 mm*H 340 mm
-
Place of Origin:
-
China
-
Product name:
-
Battery Powered Rail Drilling Machine
-
Brushless DC motor:
-
3 kW (4 hp) at 10,000 rpm
-
Drilling diameter:
-
from 5 to 40 mm
-
Drill stroke:
-
25 mm
-
Axle bore:
-
19.05 mm
-
Max rail hardness (carotadin HSS):
-
350 HB
-
Lubrication tank capacity:
-
5 L
-
Machine weight (Battery included):
-
15 KG
-
Noise level:
-
72 dB
-
Spindle rotation speed:
-
300 rpm
Product Description

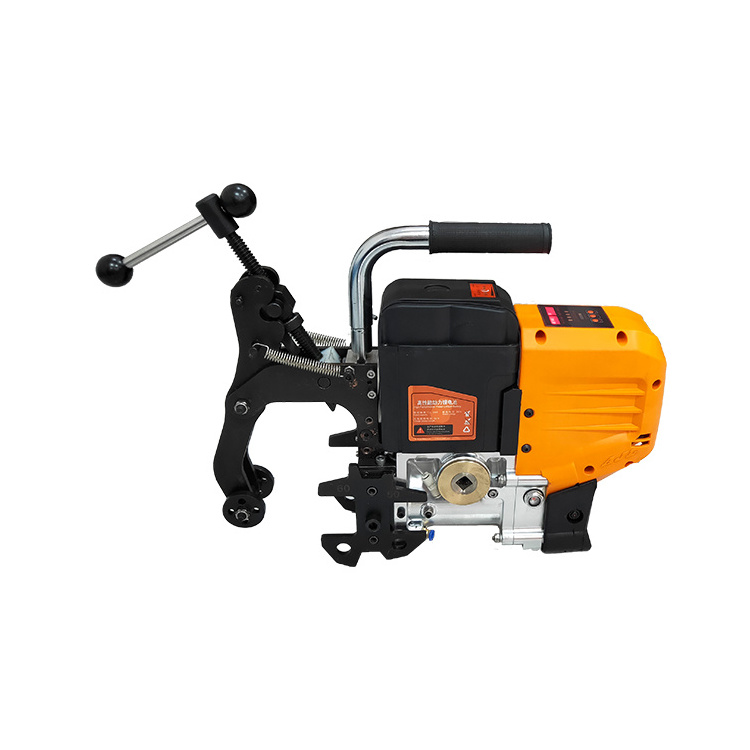

Battery Powered Rail Drilling Machine
LDZ1501 Battery powered rail drilling machine, a portable mechanization tool designed to drill holes in various types of rails, including industrial rail, railway, crane rail, subway track and tram track.
Battery powered rail drilling machine has the advantages of energy saving, environmental protection and low cost. Powerful battery technology combined with reliable mechanics. Alternative drives giving clean, quiet and sustainable power for all your track work activities.
PRODUCT FEATURES
1.Verified by strict IP rating, support working in rainy and snowy weather;
2.CE certified lithium power, ultra-long life;
3.Work normally under extremely cold weather and high-altitude area;
4.Lightweight design, more convenient to carry and transfer;
Equipment related information is as follows:
This equipment uses a drill shank with a diameter of 19.05mm;
Use an external cooling pressure bottle to inject coolant into the center of the spindle, or use a special drill bit that can be used continuously in an environment without coolant;
The equipment's rail-clamping device can be quickly installed and removed, taking only about two to three seconds;
Equipped with a manual feed device, which can be installed on the left and right sides of the equipment;
It consists of the following main elements:
A lithium battery pack,Voltage 36V, capacity 12Ah, energy 432Wh;
A brushless DC motor and its driver can meet the IP56 usage environment requirements and provide a maximum instantaneous power of 3kw;
A set of reduction devices to reduce the brushless DC motor speed to a speed suitable for drilling;
A set of single or double templates for 1 type of rail that ensures fast and accurate fixing of the drilling machine (the drawing of the rail and drilling height must be attached to the order);
A lever to control the manual advance of the spindle;
A spindle for the core;
A pressure lubrication and cooling system for the core through the center of the shaft, with a separate reservoir;
A universal quick-clamping vice with lever for flat-bottom rails or grooved rails.
The equipment host provides professional aviation aluminum box packaging.
ACCESSORY
Core drill
According to customer requirements
Set of templates
According to customer requirements (the drawing of the rail and drilling height must be attached to the order);
Indexing accessory
According to customer requirements (Drilling horizontal spacing requirements must be attached to the order);
Specification
|
TECHNICAL DATA
|
|
|
|
Model
|
LDZ-1501
|
|
|
Brushless DC motor
|
3 kW (4 hp) at 10,000 rpm
|
|
|
Drilling diameter
|
from 5 to 40 mm
|
|
|
Drill stroke
|
25 mm
|
|
|
Axle bore
|
19.05 mm
|
|
|
Max rail hardness (carotadin HSS)
|
350 HB
|
|
|
Lubrication tank capacity
|
5 L
|
|
|
Dimensions
|
L 430 mm*W 100 mm*H 340 mm
|
|
|
Machine weight (Battery included)
|
15 KG
|
|
|
Weight of the lubrication tank (empty)
|
1.2KG
|
|
|
Noise level
|
72 dB
|
|
|
Spindle rotation speed
|
300 rpm
|
|
|
Operation Temperature(℃)
|
-40~50℃
|
|
|
Battery capacity
|
60 holes with 31mm drill bit
|
|
Why Choose Us
ZHONGSHENG RUIDA offers proven tools and machines for the professional execution of work on railway tracks. The products work efficiently, precisely. Special equipment ensures more safety, availability and comfort during operation.
ZHONGSHENG RUIDA develops and produces tools and machines in track construction, track maintenance and unique special tools for thermite welding processes. We are constantly working on the improvement and further development of our tools and machines, for a long service life of rails.
