Quick Details
-
Mounting Type:
-
onboard, DIP
-
Description:
-
Tilt Angle detection
-
Model Number:
-
SCMA-800
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ADI
-
Output:
-
TTL/UART
-
Brand:
-
IMU
-
Voltage - Supply:
-
3 V to 5.1 V
-
Current - Supply:
-
3ma
-
Operating Temperature:
-
-40-+85
-
Resolution (Bits):
-
Digitally controlled sample rate, up to 819.2 SPS
-
Current - Supply (Max):
-
5.1
-
Frequency:
-
330 Hz bandwidth
-
Size / Dimension:
-
31mm*23mm*8.88mm
-
Measuring Range:
-
±3 g measurement range
-
Product name:
-
IMU sensor
-
Precision:
-
0.8°
-
Angular resolution:
-
0.1°
-
Angle range:
-
1°~45°
-
Communication interface:
-
TTL/UART
-
Power supply:
-
3.0V~5.1V
-
Size:
-
16mm*10mm
-
Baudrate:
-
9600bps
-
Application:
-
Tilt Angle detection
-
Operating temperature range:
-
-20°C to +80°C
Quick Details
-
Usage:
-
Platform control Navigation
-
Series:
-
IMU
-
Features:
-
14bit digital, 1200SPS
-
Mounting Type:
-
onboard, DIP
-
Description:
-
Tilt Angle detection
-
Model Number:
-
SCMA-800
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ADI
-
Output:
-
TTL/UART
-
Brand:
-
IMU
-
Voltage - Supply:
-
3 V to 5.1 V
-
Current - Supply:
-
3ma
-
Operating Temperature:
-
-40-+85
-
Resolution (Bits):
-
Digitally controlled sample rate, up to 819.2 SPS
-
Current - Supply (Max):
-
5.1
-
Frequency:
-
330 Hz bandwidth
-
Size / Dimension:
-
31mm*23mm*8.88mm
-
Measuring Range:
-
±3 g measurement range
-
Product name:
-
IMU sensor
-
Precision:
-
0.8°
-
Angular resolution:
-
0.1°
-
Angle range:
-
1°~45°
-
Communication interface:
-
TTL/UART
-
Power supply:
-
3.0V~5.1V
-
Size:
-
16mm*10mm
-
Baudrate:
-
9600bps
-
Application:
-
Tilt Angle detection
-
Operating temperature range:
-
-20°C to +80°C

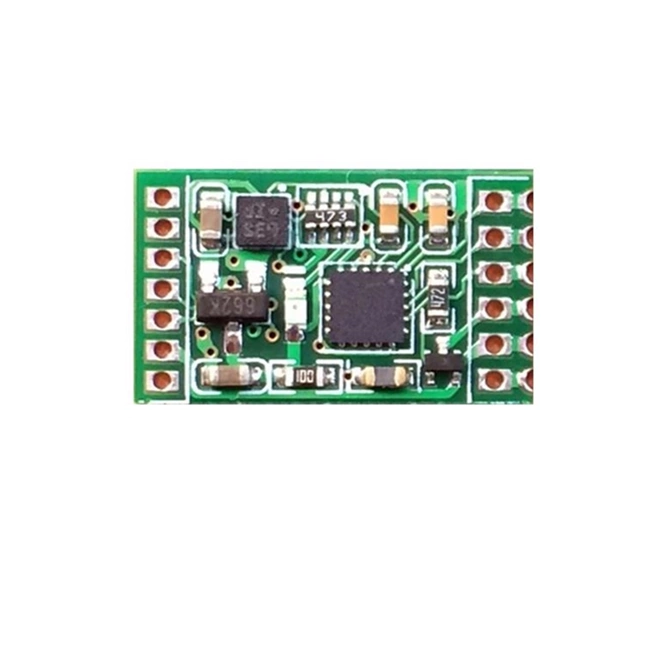

Product Description
Describe
An inclination sensor is an instrument used to measure the tilt Angle of an object relative to the plane. Inclination sensor is also known as inclination meter, inclinometer, inclinometer, level, inclinometer, often used for the precise measurement of the horizontal Angle change of the object, using it to measure the inclination of the measured plane relative to the horizontal position, the parallelism and perpendicularity of the two components; It has become an indispensable and important measuring instrument in bridge construction, railway laying, civil engineering, oil drilling, aviation and navigation, industrial automation, intelligent platform, machining and other fields.
Detail description
Angle and orientation definition (Tilt alarm Angle e defaults to 16 degrees
Specification
|
Specification
|
|
|
Description
|
|
|
|||
|
Power
|
|
|
3.3V~5.0V
|
|
|
|||
|
Electric current
|
|
|
2.8mA
|
|
|
|||
|
Operating temperature
|
|
|
-20-80℃
|
|
|
|||
|
Main function
|
|
|
1. non-mechanical pure digital Angle sensor, 3D XY/Z axis detection2.Horizontal/tilt detection (using the Z-axis), front/back
detection 3.TTL UART serial port Angle output (9600bps,8,N,1) 4.Tilt Angle resolution 0.1°, accuracy 0.8° 5.Tilt alarm Angle 9 values can be set via configurator (range 1°-45°) 6.On-board indicator, steady horizontal, tilting slowly blinking |
|
|
|||
|
Application scenario
|
|
|
1.Item tilt detection2.Horizontal detection, positive and negative detection
3.Tilt Angle detection |
|
|
|||
|
Note
|
|
|
This tilt sensor is only suitable for static Angle detection, not for vibration, jitter, rotation and other occasionsBecause
the silicon mass in the chip is very light and susceptible to vibration, it is recommended to install or adhere the tilt sensor module to the plate and object with a larger mass, which can increase inertia and reduce vibration interference to avoid false output |
|
|
|||
