Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BS
-
Model Number:
-
2.875inch OD*0.25inch
-
Material:
-
Steel
-
Round pipe Size:
-
2.875 OD or 3.0 OD or 3.5OD
-
Square bar size:
-
1 1/2" square bar or Square1 3/4" Square bar
-
Length:
-
3ft or 7ft or 10ft or According to your demand
-
Surface treatment:
-
Hot Dipped Galvanized or Painted
-
Name:
-
Helical screw piers or Helical anchor
-
Helix Blade:
-
8", 10", 12" and 14" in diameter
-
Blade thickness:
-
3/8" or 1/2"
Quick Details
-
Project Solution Capability:
-
graphic design
-
Application:
-
Outdoor
-
Design Style:
-
Modern
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BS
-
Model Number:
-
2.875inch OD*0.25inch
-
Material:
-
Steel
-
Round pipe Size:
-
2.875 OD or 3.0 OD or 3.5OD
-
Square bar size:
-
1 1/2" square bar or Square1 3/4" Square bar
-
Length:
-
3ft or 7ft or 10ft or According to your demand
-
Surface treatment:
-
Hot Dipped Galvanized or Painted
-
Name:
-
Helical screw piers or Helical anchor
-
Helix Blade:
-
8", 10", 12" and 14" in diameter
-
Blade thickness:
-
3/8" or 1/2"

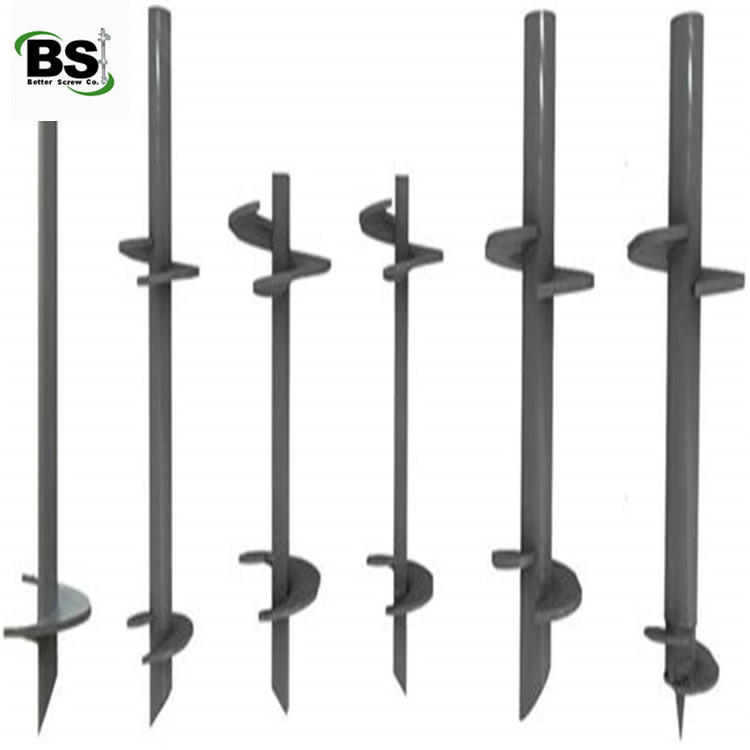

Galvanized mooring square bar helical screw anchors
Usage:
Helical piers, also known as anchors, piles or screw
piles, are deep foundation solutions used to secure new or repair existing foundations. Due to their design and ease to install, they are most commonly used whenever soil conditions prevent standard foundation solutions. Instead of requiring large excavation work, they thread into the ground. This minimizes installation time, requires little soil disturbance, and most importantly transfers the weight of the structure to load bearing soil.
Round Shaft Helical Piers
Round Shaft Piers are used in compression applications.
|
Product name |
Round Shaft Helical Piers |
|
Pipe M aterial |
The round pipe shaft materia l: C1020 seamless wall |
|
Helix plate material |
ASTM A36 plate |
|
Pipe size |
2.875 OD / 3.00 OD / 3.50 OD. |
|
Helix leading edges |
Sharpened and rock cut and 45 degree |
|
Helices thickness |
3/8” and 1/2” |
|
Corrosion protection |
ASTM A153 standard for hot dip galvanization or Color painted |
|
Lead sections |
Available in 3, 5 and 7-foot lengths. |
|
Extensions |
Available in 3, 5, 7 and 10-foot lengths. |
|
OEM service |
Accepted |
|
Bolt and nuts |
Available |
|
Helix numbers |
Single Helix Double Helix Triple Helix |
ALL ITEMS LISTED GO THROUGH A QUALITY ASSURANCE INSPECTION.
Shaft Material:
2 7/8” OD. Certified Pipe with 70,000 yield and 90,000 tensile with an installation torque rating of 12,500 ft. lb and ultimate load limit of 100,000 lbs. Shaft lengths of 60”, 72”, 84”, and 120” standard.
Helices:
ASTM hot rolled carbon steel 3/8", 1/2", 3/4" thick plate, ASTM A570 Structural grade 50, Configuration 8", 10, 12", 14", 16". ASTM A123 Galvanized.
Couplers
are cut from 3 1/2" O.D. Certified .254w welded in place forming consistent strength equivalencies with the shaft. The welding design and welding fabrication of steel will be in accordance with the AWS D1.1.
Pakaging and Shipping:
1. Packaging:
Usually we shipping the products in 20ft’ container, or according to your demand.
2. Shipping:
15-30 days after confirming your order
About us:
We are a professional Helical screw piles manufacturer of China. We have been producing all kinds of Helical screw piles,helical screw extension,helical screw brackets and
caps for our
North American ,Australian and Asian
customers for more than ten years with very good reputation.
We made many containers of helical anchors every month and we are very familiar with customers’ requirements on these products. We can produce according to our customers specific demand.
Square bar Shaft Helical Piers
|
Product name |
Square bar Shaft Helical Piers |
|
Square bar M aterial |
C onforms to 40Cr cold drawn steel round corner square bar |
|
Helix plate material |
ASTM A36 plate |
|
Square bar size |
1 1/2 " square bar or Square1 3/4" Square bar |
|
Helix leading edges |
Sharpened and rock cut and 45 degree |
|
Helices thickness |
3/8” and 1/2” |
|
Corrosion protection |
ASTM A153 standard for hot dip galvanization or Color painted |
|
Lead sections |
Available in 3, 5 and 7-foot lengths. |
|
Extensions |
Available in 3, 5, 7 and 10-foot lengths. |
|
OEM service |
Accepted |
|
Bolt and nuts |
Available |
|
Helix numbers |
Single Helix Double Helix Triple Helix |
Our Service:
1. We ensure you that we will reply your inquiry in 24 working hours.
2 . Competitive pricing, good quantity and timely service.
3.Door to door service.
We can also give you
DDU prices
including the freight to your company.
4
. OEM and ODM service are available here.
5 . Sample: Available.
H ope we can build a long-term business relationships with you.
If you have any interest in our products, please do not hesitate to contact us. We look for ward to the future cooperation with you.
