Quick Details
-
Model Number:
-
CBT-F4
-
Place of Origin:
-
Hebei, China
-
Rated pressure:
-
20mpa
-
Gear Modulus:
-
4
-
Displacement(ml/r):
-
6/8/10/12/14/16/20
-
Rotation:
-
L(counterclockwise)/R(clockwise)
-
Speed:
-
rated1800r/min
-
Speed max:
-
3000r/min
Quick Details
-
Application:
-
Other
-
Pressure:
-
High Pressure
-
Brand Name:
-
HANJIU
-
Model Number:
-
CBT-F4
-
Place of Origin:
-
Hebei, China
-
Rated pressure:
-
20mpa
-
Gear Modulus:
-
4
-
Displacement(ml/r):
-
6/8/10/12/14/16/20
-
Rotation:
-
L(counterclockwise)/R(clockwise)
-
Speed:
-
rated1800r/min
-
Speed max:
-
3000r/min

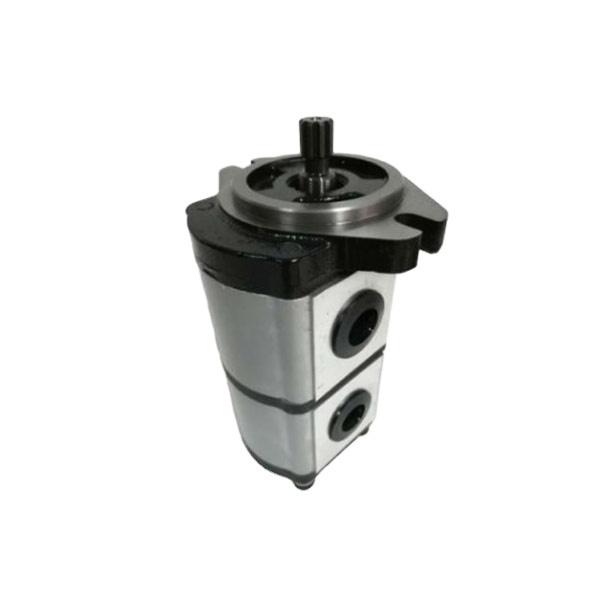

hidrolik pompa hydraulic pumps High Performance Hydraulic Gear Pump Tractor Pump 15-20Mpa
Product Description
We design & make huge range of gear pumps with many options . Also customize according to customers' samples.
- Fine finished steel gears,Hi-resistant Extruded alluminum body, Hi-resistant Die cast alluminum cover(BAP2) or cast-iron cover(BHP2), Low-friction die casting alluminum bushes,and DU slide bearing,all these keep low pulsation,low noise and long life.
- Full option of shafts,flanges and ports as for European,German and America standards
- Nitrile seals as standard and viton seals available for high temperature application,high pressure shaft seals are also available.
- Motor and bi-direction pump available
- Available as multiple pump either of the same or different group
- We test 100% of the pumps and motors after assambling to ensure the high standard performance.
- Our team have worked in hydraulics for about 20 years. Our technical people are very skilled in producing gear pump.
- We have supplied to many world-famous company all over the world.
| Type | Displacement | Max.pressure | Max.speed | Min.speed | ||
| P1 | P2 | P3 | ||||
| cm 3 /rev | bar | bar | bar | r/min | r/min | |
| CBT | 3 | 270 | 285 | 300 | 4000 | 800 |
| CBT | 4 | 270 | 285 | 300 | 4000 | 600 |
| CBT | 6 | 270 | 285 | 300 | 4000 | 600 |
| CBT | 8 | 270 | 285 | 300 | 3500 | 500 |
| CBT | 10 | 270 | 285 | 300 | 3000 | 500 |
| CBT | 12 | 270 | 285 | 300 | 3000 | 500 |
| CBT | 14 | 250 | 265 | 280 | 4000 | 500 |
| CBT | 16 | 250 | 265 | 280 | 4000 | 500 |
| CBT | 18 | 250 | 265 | 280 | 3600 | 400 |
| CBT | 20 | 220 | 235 | 250 | 3200 | 400 |
| CBT | 22 | 220 | 235 | 250 | 3000 | 400 |
| CBT | 25 | 200 | 215 | 230 | 3000 | 400 |
| CBT | 28 | 180 | 190 | 200 | 2500 | 400 |
| CBT | 30 | 160 | 170 | 180 | 2500 | 400= |
Our Services
Customize Services
We design & make huge range of gear pumps with many options
. Also customize according to customers' samples.
Had service Argentina, Chile, Peru, Brazil, Poland, France,
Italy,
Germany, Bulgaria,
Turkey, UK,
also hope to earn your business.
