Quick Details
-
Warranty:
-
1 years
-
Brand Name:
-
Wingoil
-
Model Number:
-
WYGT
-
Place of Origin:
-
Chongqing, China
-
Horsepower:
-
/
-
Cable Length:
-
Customised
-
Outlet Size:
-
HF6
-
Power:
-
Pneumatic, Pneumatic
-
Name:
-
1200Bar Double Acting Pneumatic Driven Chemical Injection Pump
-
Material:
-
Aluminum alloy & stainless steel
-
Used for:
-
CNC Processing Machine
-
Theory:
-
Reciprocating Pump
-
Usage:
-
Air Pump
-
Package:
-
Wooden Case Package
-
MOQ:
-
1 Set
Quick Details
-
Application:
-
Automotive Industry, Developing World Water Solutions, Drinking water treatment, Family Homes, Industrial Utilities, Mining industry, Washing and Cleaning, Water Treatment Solutions
-
Pressure:
-
Ultra High Pressure
-
Voltage:
-
Pneumatic
-
Warranty:
-
1 years
-
Brand Name:
-
Wingoil
-
Model Number:
-
WYGT
-
Place of Origin:
-
Chongqing, China
-
Horsepower:
-
/
-
Cable Length:
-
Customised
-
Outlet Size:
-
HF6
-
Power:
-
Pneumatic, Pneumatic
-
Name:
-
1200Bar Double Acting Pneumatic Driven Chemical Injection Pump
-
Material:
-
Aluminum alloy & stainless steel
-
Used for:
-
CNC Processing Machine
-
Theory:
-
Reciprocating Pump
-
Usage:
-
Air Pump
-
Package:
-
Wooden Case Package
-
MOQ:
-
1 Set
Product Description

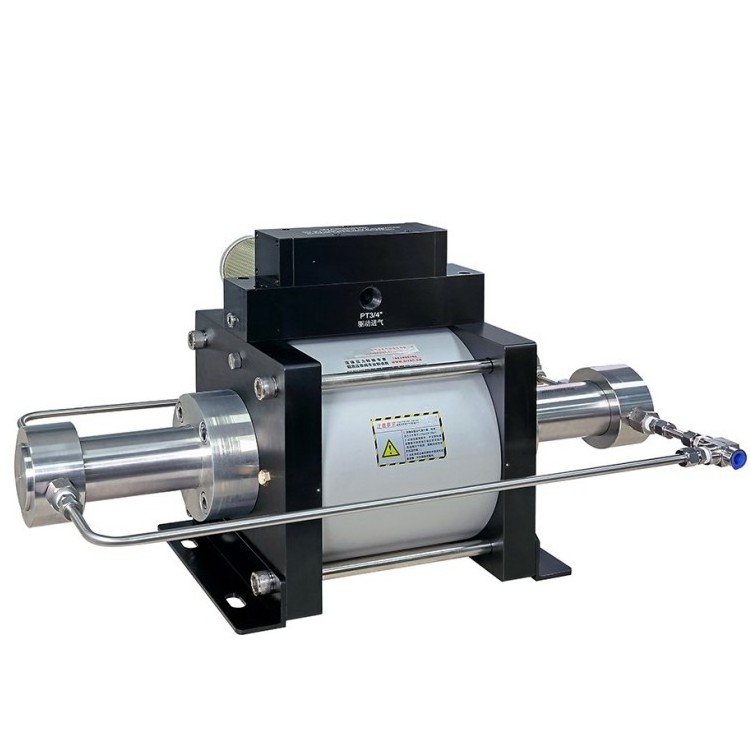

WYGT
series gas-liquid booster pump is a single-drive double-acting liquid booster pump with compressed air, which has the advantages of high output pressure, large output flow and suitable for various media.
Features
1.
Output pressure can be up to 2116bar. The output flow is larger than the GH series under the same pressure;
2.
Drive is gas, no heat, sparks, and supercharging are safe;
3.
Suitable for most liquids;
Main Features
1.
WYGT series is based on static pressure, when the driving air pressure is 7bar, the air consumption is 2m3/min;
2.
Driving pressure is 1bar-8.3 bar (14.5-120.35psi), and the WYGT series driving piston is Φ250mm;
3.
High-pressure end can be customized with special materials, such as: 17-4PH, 44OC, 316, etc.;
4.
Control method of WYGT series is pilot air control, which is more reliable than traditional control and more convenient to control with related valves.
Description of Special Products
WYGT series can provide threads other than standard interface, order code such as: WYGT25-G (series code + boost ratio + thread code)
How to order special media:
WYGT series can be used for liquid carbon dioxide, order code such as: WYGT25-CO2 (series code + boost ratio + boost medium)
Application Scenarios
1.
Large volume pressure test or burst test;
2.
Pre-filling of the medium in the test container;
3.
Water cutting applications in the paper industry;
4.
Application of organic jet cleaning;
5.
Oil and gas wellhead chemical reagent injection;
6.
Interfering with the pressure of the shaft sleeve and the cylinder liner, press out the power;
7.
Fluid transportation in explosion-proof environment;
8.
Pre-filling of the medium in the test container;
9.
CO2 filling, refrigerant filling.
