Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CNSN
-
Model Number:
-
SB2-EG21
-
Temperature:
-
Operation: - 25 ~ +70 °C, Storage: - 40 ~ +70 °C
-
Standard:
-
IEC60947-5-1,EN60947-5-1,GB/T14048.1-93,GB/14048.5-93
-
Rated capacity:
-
AC-15 125V/10A 200V/6A 380V/4A 660V/2A
-
Rated capacity2:
-
DC-14: 24V/6A 48V/3A 110V/1A 440V/0.25A
-
Contact resistance:
-
Hard sliver contact≤50mΩ
-
Life:
-
≥5*1000 cycles
-
Rated insulation voltage:
-
Ui 660V
Quick Details
-
Protection Level:
-
IP40
-
Max. Current:
-
10A
-
Max. Voltage:
-
Ui 660V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CNSN
-
Model Number:
-
SB2-EG21
-
Temperature:
-
Operation: - 25 ~ +70 °C, Storage: - 40 ~ +70 °C
-
Standard:
-
IEC60947-5-1,EN60947-5-1,GB/T14048.1-93,GB/14048.5-93
-
Rated capacity:
-
AC-15 125V/10A 200V/6A 380V/4A 660V/2A
-
Rated capacity2:
-
DC-14: 24V/6A 48V/3A 110V/1A 440V/0.25A
-
Contact resistance:
-
Hard sliver contact≤50mΩ
-
Life:
-
≥5*1000 cycles
-
Rated insulation voltage:
-
Ui 660V

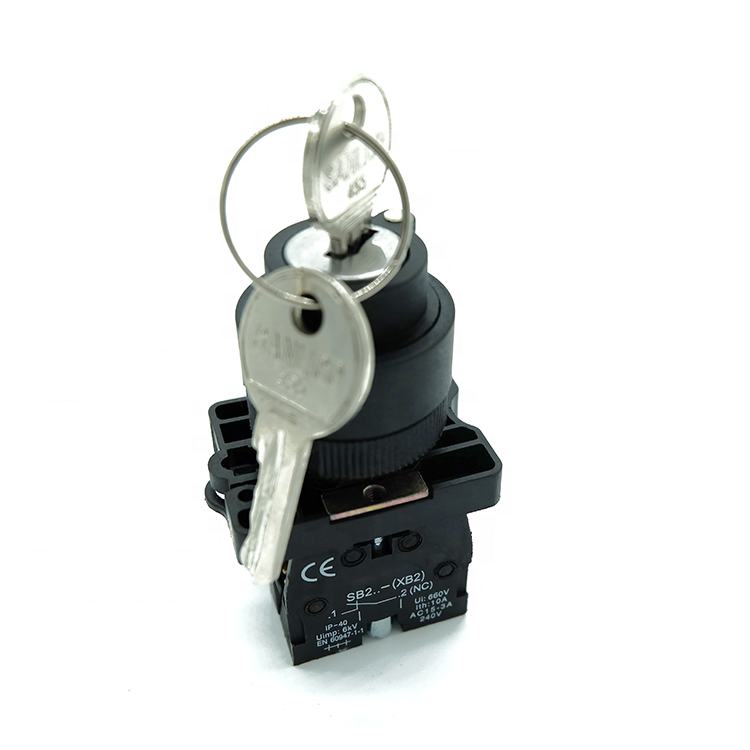

SB2-EG21 2 Position and 3 Position Key Rotary Selector Switch
·
The structure design of the pushbutton complies with safety attestation of national standard and European CE, the pushbutton is produced and test according to
IEC947 and EN60947, and CCC National GB14048.5-2001 standards .
· It is mounted by nut for fixing, contact switch designed as module structure, loop closed structure, prevent finger touched, stacking structure.
Each part is of selflocked type without fastening device as popular in the world, easy to dismantle, safe operation, good figure. It provides the terminals with anti-shock self-elevating screw.The screw will not fall down.
It is an ideal substitute for those old ones with competitive price.
| Description | Size |
Type of Contact
|
Reference | Weight |
| NO NC | ||||
|
Key Switch 2-position/3position
|
1 - |
SB2-EG21 |
0.07 | |
| 1 1 |
SB2-EG25 |
0.09 | ||
| 1 - |
SB2-EG41 |
0.0 7 | ||
| 1 1 | SB2-EG45 | 0.0 9 | ||
| 1 - |
SB2-EG61 |
0.0 9 | ||
| 1 1 |
SB2-EG65 |
0.05 | ||
| 2 - |
SB2-EG33 |
0.0 9 | ||
| 2 - |
SB2-EG53 |
0.0 9 | ||
| 2 - |
SB2-EG03
|
0.0 9 | ||
| 2 - |
SB2-EG73 |
0.0 9 |
