Quick Details
-
Place of Origin:
-
China, Guangdong China
-
Brand Name:
-
hanbeter
-
Voltage:
-
380V/50HZ
-
Dimension(L*W*H):
-
480*520*1040mm
-
Weight (KG):
-
300 KG
-
Marketing Type:
-
Grinder, New Product 2023
-
After-sales Service Provided:
-
Video technical support
-
Output Size (mesh):
-
20 - 120 mesh
-
Product name:
-
Universal Pulverizer
-
Range of Spindle Speed(r.p.m):
-
3800 - 4200 r.p.m
-
Feeding Size (mm):
-
2 - 50 mm
Quick Details
-
Output (kg/h):
-
75 - 400 kg/h, 20 - 75 kg/h
-
Power (kW):
-
3
-
Product Type:
-
Grinder, Detergent Powder
-
Place of Origin:
-
China, Guangdong China
-
Brand Name:
-
hanbeter
-
Voltage:
-
380V/50HZ
-
Dimension(L*W*H):
-
480*520*1040mm
-
Weight (KG):
-
300 KG
-
Marketing Type:
-
Grinder, New Product 2023
-
After-sales Service Provided:
-
Video technical support
-
Output Size (mesh):
-
20 - 120 mesh
-
Product name:
-
Universal Pulverizer
-
Range of Spindle Speed(r.p.m):
-
3800 - 4200 r.p.m
-
Feeding Size (mm):
-
2 - 50 mm
| Product parameter | |||||
| Model | XJT-FS180A | XJT-FS250A | XJT-FS350A | XJT-FS400A | XJT-FS500A |
| Voltage/frequency | 380v-50hz | 380v-50hz | 380v-50hz | 380v-50hz | 380v-50hz |
| Power | 3kw | 5.5kw | 7.5kw | 11kw | 15kw |
| Rotating speed | 4200rpm/min | 4200rpm/min | 4200rpm/min | 4200rpm/min | 4200rpm/min |
| Yield | 25-75kg/h | 75-250kg/h | 250-550kg/h | 300-600kg/h | 400-800kg/h |
| Product size | 480*520*1040mm | 750*600*1260mm | 780*700*1350mm | 800*900*1500mm | 1200*1000*2000mm |
| Product weight | ≈75kg | ≈180kg | ≈260kg | ≈320kg | ≈400kg |
product description
-Product use-
General pulverizer: This machine is suitable for crushing and processing of many kinds of Chinese herbal medicine, precious medicinal materials, minerals and chemical raw materials in pharmaceutical, food, chemical, metallurgical, geological, agricultural, scientific research and other units. 304 stainless steel is used for the whole machine and the contact material of the product. The horizontal vertical blanking is fast, and the fineness can reach 20-120 mesh. The working principle is that the main shaft of the motor drives the machine to rotate at high speed. The movable plate and the fixed plate collide and rub with each other, and impact with each other to obtain powder. The crushed material enters the collecting bag after being screened through the sieve hole by the action of rotating centrifugal force.

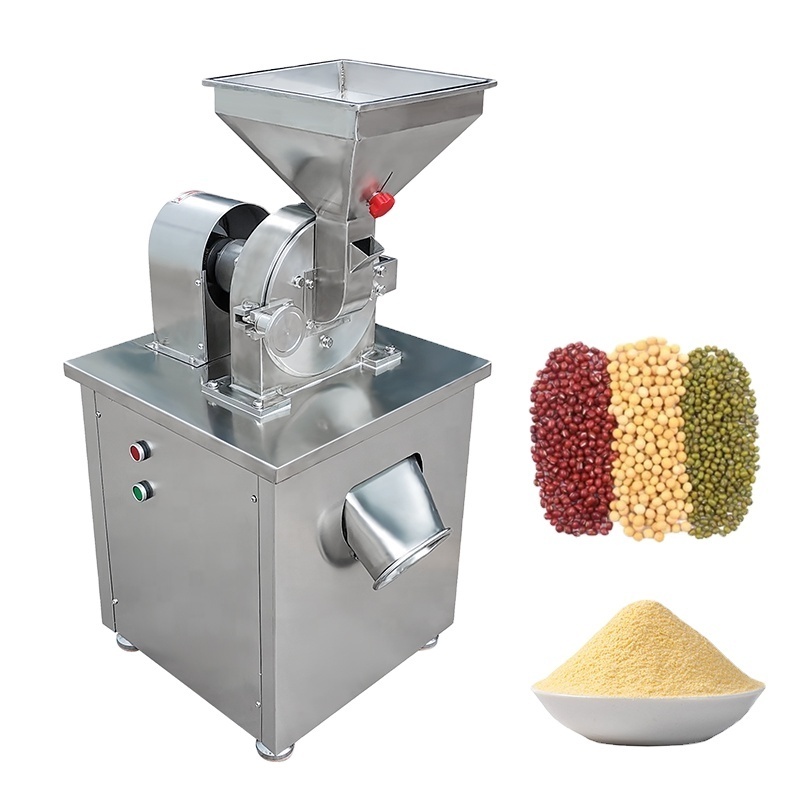

Product display
-Refuse to over beautify the product-
