Quick Details
-
Product name:
-
digital yarn length counter meter
-
Measure the frequency:
-
2~10KHz
-
Feed output:
-
DC12V
-
Power consumption:
-
≤4.5VA
-
Control output capacity:
-
3A/250VAC Impedance load
-
Impulse level:
-
Low level ,high level
-
Triggered:
-
Low level active(NPN active)
-
Power supply:
-
85~264VAC
-
Style:
-
Luxury
-
Function:
-
count
Quick Details
-
Brand Name:
-
AISET/YATAI
-
Place of Origin:
-
Shanghai, China
-
Model Number:
-
JY-Z
-
Product name:
-
digital yarn length counter meter
-
Measure the frequency:
-
2~10KHz
-
Feed output:
-
DC12V
-
Power consumption:
-
≤4.5VA
-
Control output capacity:
-
3A/250VAC Impedance load
-
Impulse level:
-
Low level ,high level
-
Triggered:
-
Low level active(NPN active)
-
Power supply:
-
85~264VAC
-
Style:
-
Luxury
-
Function:
-
count
Products Description
|
Installation form
|
Disk mounted embedded or socket mounted installation
|
|
Anti-interference strength
|
Level 3 (IEC-61000-4)
|
|
Input signal
|
(1) Contact signals: relays, travel switches, microswitches, etc
(2) Contactless signals: proximity switches, photoelectric switches, etc
(3) Pulse signal: TTL circuit, etc
Note: In the terminal wiring diagram, CP1 terminal represents negative pulse counting
(NPN) signal input terminal, CP2 terminal is a positive pulse signal
(PNP) input, pulse signal voltage: low level
VL=0-1.3V, high-level VH=4.5-30V.
|
|
Signal input impedance
|
5kΩ
|
|
Reset (reset) method
|
(1) After the meter reaches the set value, the control point outputs and continues counting;
(2) After the meter reaches the set value, the control point outputs and stops counting;
(3) After the meter reaches the set value, continue to meter and control the contact output；
(4) After the meter reaches the set value, stop the meter measurement and control the contact output；
|
|
Input signal should choose counting frequency
|
Reset the panel reset key
Terminal reset (RST, COM pin short circuited)
|
|
Provide external sensor power supply
|
DC12V
|
|
power supply
|
See type spectrum
|
|
Maximum counting frequency
|
High speed (H): 5000 times/s
Medium speed (n): 250 times/s
Low speed (L): 25 times/s
(Frequency signal duty cycle is 1:1)
|
|
work environment
|
Temperature 0-50 ° C Relative humidity ≤ 95%
|
General Description

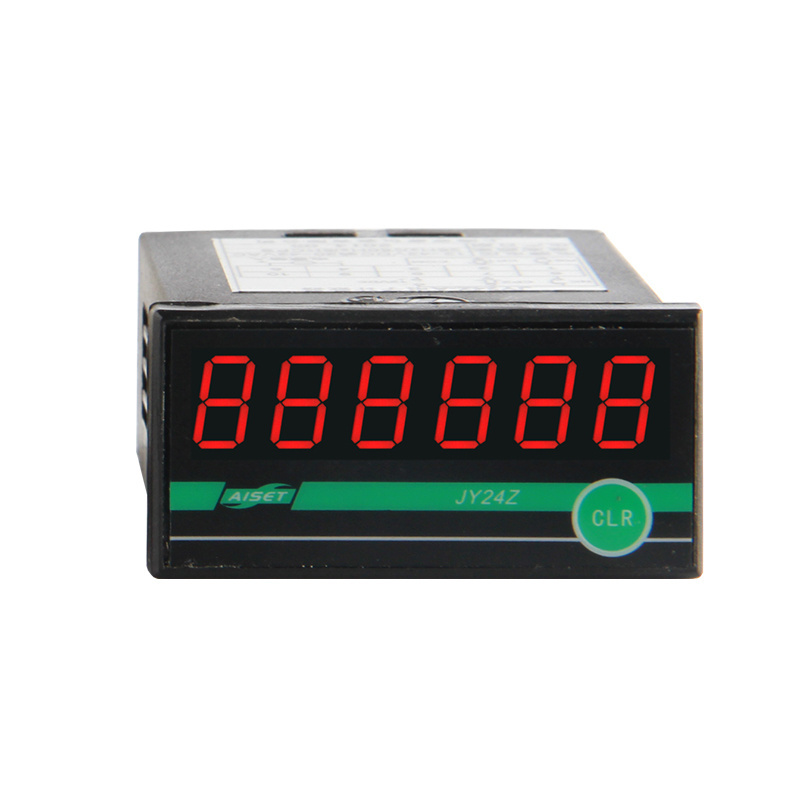

JY-Z series digital display electronic counter adopts the micro-computer with excellent performance as its main control component.It has many merits, such as high accuracy, large range of number counting, digital display, permanent retention time for power cut, strong capability in anti-disturbance, pretty appearance,etc.
