Quick Details
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
19 inch Display
-
Brand Name:
-
Wisecoco
-
Diagonal Size:
-
19 inch
-
Pixel Format:
-
1920(RGB)*360, 102PPI
-
Active Area:
-
476.64(W)*89.37(H) mm
-
Outline Size:
-
491.5(W)*109.4(H)*12.8(D) mm
-
Viewing Angle:
-
89/89/89/89 (Typ.)(CR≥10)
-
Treatment:
-
Antiglare (Haze 25%)
-
Contrast Ratio:
-
1200:1 (Typ.) (TM)
-
Screen Signal Interface:
-
LVDS (2 ch, 8-bit) , 30 pins Connector
-
Frame Rate:
-
60Hz
-
Operating Temperature:
-
0 ~ 50 °C
Quick Details
-
Type:
-
TFT LCD
-
Display Size:
-
19 inch
-
Supplier Type:
-
Original
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
19 inch Display
-
Brand Name:
-
Wisecoco
-
Diagonal Size:
-
19 inch
-
Pixel Format:
-
1920(RGB)*360, 102PPI
-
Active Area:
-
476.64(W)*89.37(H) mm
-
Outline Size:
-
491.5(W)*109.4(H)*12.8(D) mm
-
Viewing Angle:
-
89/89/89/89 (Typ.)(CR≥10)
-
Treatment:
-
Antiglare (Haze 25%)
-
Contrast Ratio:
-
1200:1 (Typ.) (TM)
-
Screen Signal Interface:
-
LVDS (2 ch, 8-bit) , 30 pins Connector
-
Frame Rate:
-
60Hz
-
Operating Temperature:
-
0 ~ 50 °C
Product Description

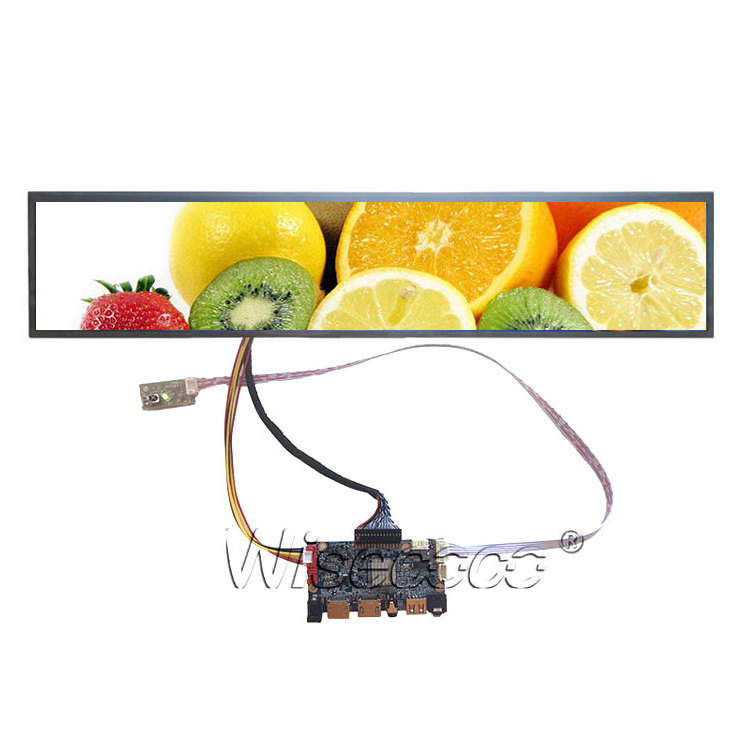

19 inch 1920*360 IPS Panel LCD Display arcade cabinet ultra-wide aspect ratio digital signage 19" advertising display screen
|
General Features |
|||
|
Diagonal Size |
19 inch |
Type |
LCM , a-Si TFT-LCD |
|
Pixel Format |
1920(RGB)×360 81PPI |
Configuration |
RGB Vertical Stripe |
|
Active Area |
476.64(W)×89.37(H) mm |
Treatment |
Antiglare (Haze 25%) |
|
Outline Size |
491.5(W)×109.4(H) ×12.8(D) mm |
Contrast Ratio |
1200:1 (Typ.) (TM) |
|
Luminance |
300 cd/m² (Typ.) |
Response Time |
30 (Typ.)(Tr+Td) |
|
View Direction |
Symmetry |
Operating Mode |
ADS, Normally Black, Transmissive |
|
Viewing Angle |
89/89/89/89 (Typ.)(CR≥10) |
Light Source |
WLED , 30K hours , W/O Driver |
|
Support Color |
16.7M 72% NTSC |
Designed For |
Automotive display, Advertising display. Digital signage.stretch bar LCD. |
|
Weight |
-- |
|
|
|
Interface Type |
LVDS (2 ch, 8-bit) , 30 pins Connector |
||
|
Voltage Supply |
3.3V (Typ.) |
||
|
Environment |
Operating Temperature: 0 ~ 50 °C ; Storage Temperature: -20 ~ 60 °C |
||
NOTE
:
This 19” LCD come with high resolution 1920 x 360 and ultra-wide aspect ratio 16:3. It can be adjusted between h
orizontal mode and vertical mode.
LED backlight. It's used for digital signage, public transportation, exhibition hall, department store, arcade cabinet and vending machine.
Full display kit includes: 19 inch LCD + controller board + Remote control
Application fields:
1.
public transportation
field:
- Road map display in bus, subway, Metro, Train station;
- Queuing screen in Hospital and bank;
2. Comercial Advertising display field:
- Horizontal mode or vertical mode advertising display screen in shopping mall, supermarket, Cosmetic store, clothing store, pharmacy, jewelry store, restaurant, train station and metro etc.
- Elevator advertising display.
3. Smart home field:
Air sterile products,display status information.
4. Industrial field:
Instrumentation, Automotive instrument display.
6. Entertainment field:
Marquee display, arcade cabinet.
