Quick Details
-
Voltage:
-
Refer to specification.
-
Dimension(L*W*H):
-
Refer to specification.
-
Weight:
-
100000 KG
-
Marketing Type:
-
Hot Product
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
Iron Ore Mining Process Chrome Ore Beneficiation Plant
-
Supply:
-
crusher, ball mill, raymond mill, rotary kiln, ore-dressing equipment.
-
Main crusher:
-
jaw crusher, cone crusher, hammer crusher, impact crusher
-
Grinding machine:
-
raymond mill, ball mill, coal mill.
-
Ore dressing machine:
-
ball mill, magnetic separator, flotation machine, spiral classifier.
-
Building equipment:
-
rotary kiln, cement plant equipment, dryer, cooler.
-
Experts team:
-
more than 80 with senior engineering technicians.
-
Certification:
-
ISO9001:2008,CE,BV
Quick Details
-
Production Capacity:
-
Refer to specification.
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
H X J Q
-
Voltage:
-
Refer to specification.
-
Dimension(L*W*H):
-
Refer to specification.
-
Weight:
-
100000 KG
-
Marketing Type:
-
Hot Product
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Name:
-
Iron Ore Mining Process Chrome Ore Beneficiation Plant
-
Supply:
-
crusher, ball mill, raymond mill, rotary kiln, ore-dressing equipment.
-
Main crusher:
-
jaw crusher, cone crusher, hammer crusher, impact crusher
-
Grinding machine:
-
raymond mill, ball mill, coal mill.
-
Ore dressing machine:
-
ball mill, magnetic separator, flotation machine, spiral classifier.
-
Building equipment:
-
rotary kiln, cement plant equipment, dryer, cooler.
-
Experts team:
-
more than 80 with senior engineering technicians.
-
Certification:
-
ISO9001:2008,CE,BV
Iron Ore Mining Process Chrome Ore Beneficiation Plant
Overview of Iron Ore Mining Process Chrome Ore Beneficiation Plant
| Chrome Ore Beneficiation Plant | |

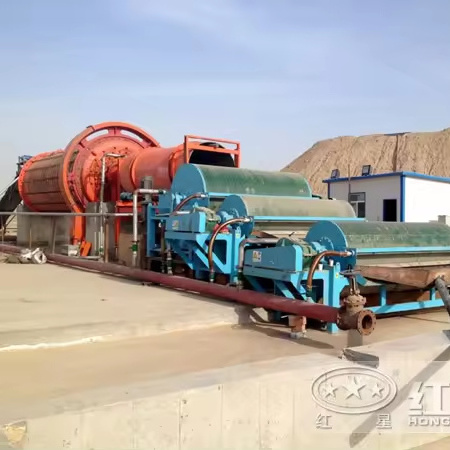

| Overview | Ore beneficiation line is mainly composed of jaw crusher, ball mill, spiral classifier, magnetic separator, flotation machine, ore concentrator and dryer machine combining with ore feeder, bucket elevator and belt conveyor which formed a complete ore beneficiation production line. |
| Advantage |
1.Low noise in construction site, high air quality.
2.High crushing efficiency with excellent production performance. 3.Our components are all purchasing from famous brands, with good wear resistance. |
Working Process of Iron Ore Mining Process Chrome Ore Beneficiation Plant
Firstly, the material ore is sent to the
Jaw Crusher
for primary crushing.
Then the ore with a proper size will be sent into the
Ball Mill
for fine crushing and grinding.
After that,the ore powder goes into the next procedure: classifying .
The Spiral Classifier can clean and group the ore mixture for different sedimentation rate due to the varied specific gravity .
Immediately following, the cleaned and grouped mixture is sent to Magnetic Separator , magnetic substance can be separated from the mixture under magnetic and mechanical force.
Next, the mixture is sent to Flotation Machine . According to the features of different ores, we can add different additive into the mixture to separate the ore which we want from the mixture.
After the separation from the mixture, the ore we want always contains a lot of water, so we need Concentrator to have it concentrated and then dried by a Dryer , eventually we can get dry ore.
Successful Cases
1)150t/h iron ore production line in Russia:
•BL1000 feeder
•2 sets of PE400×600 jaw crusher
•PY900 spring cone crusher
•GZG63-4 feeder
•2YK1237 circular vibrating screen
•ZKR1545 liner vibrating screen
•Ball mill
•3 sets of mixers (1.5m/ 2m/ 2.5m )
2)
6000 t/d
Molybdenum ore beneficiation line:
•2 sets of 3200X5400 ball mills
•FG3000 classifier
•SF16m3Flotation machine
3) 2000t/d copper lead zinc beneficiation production line in Tibet
•4 sets of 2700*3600 ball mills
•4 sets of FG2400 spiral classifies
•SF-8 flotation machine
•PE900X1200 jaw crusher
•Mixer
•Thickener
Delivery of Iron Ore Mining Process Chrome Ore Beneficiation Plant
We have developed long-term and excellent relationship with many ocean freight partners, such as APL, COSCO, OOCL, CSCL, MSC, etc. And train carrying is also available.The complete mode of shipping and best service with lowest price are always provided for customers.
