Quick Details
-
Output Speed:
-
100~400RPM
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ever-power
-
Color:
-
Blue / Grey / Customer requirement
Quick Details
-
Gearing Arrangement:
-
Helical
-
Output Torque:
-
256-7449N.m
-
Input Speed:
-
1400rpm
-
Output Speed:
-
100~400RPM
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ever-power
-
Color:
-
Blue / Grey / Customer requirement

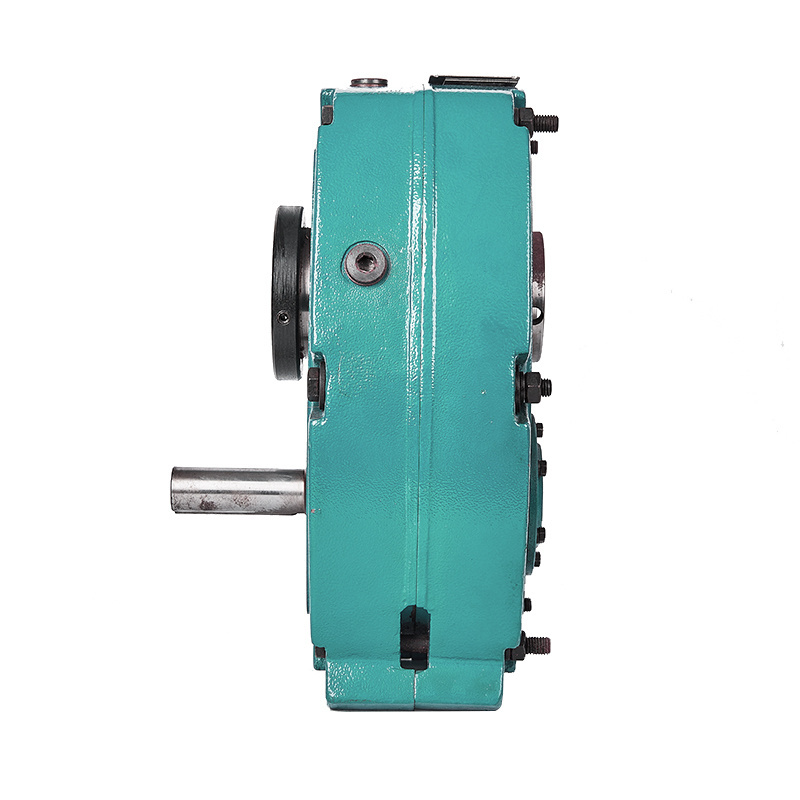

Product Description
Components:
1. Housing: High-strength Gray Cast Iron Gearboxes
2. Gears: Helical Involute Gears, Carburizing, Quenching, Grinding
3. Shafts: High-strength Hardening Alloy Steel
4. Input Configurations: Keyed Solid Shaft Input
5. Output Configurations: Keyed Hollow Shaft Output
6. Oil Seal : Double Lips Skeleton Seal
7. Spare Parts: Torque arm, Optional Backstop
1. Housing: High-strength Gray Cast Iron Gearboxes
2. Gears: Helical Involute Gears, Carburizing, Quenching, Grinding
3. Shafts: High-strength Hardening Alloy Steel
4. Input Configurations: Keyed Solid Shaft Input
5. Output Configurations: Keyed Hollow Shaft Output
6. Oil Seal : Double Lips Skeleton Seal
7. Spare Parts: Torque arm, Optional Backstop
Models:
1 Stage(Ratio 5): B05, C05, D05, E05, F05, G05, H05, J05
2 Stage(Ratio 13/20): B13/20, C13/20, D13/20, E13/20, F13/20, G13/20, H13/20, J13/20
Features:
1. High strength of gear box, gears and shafts, sturdy and durable
2. 2 metric output shaft bore diameters(Standard and Optional)
3. Optional backstop to prevent backdriving. Backstop is not recommended for the gear ratio 5
4. Double lips skeleton oil seal combines the functions of seal and dust-proof
5. Widely used in belt conveyor and pulley drive system
1 Stage(Ratio 5): B05, C05, D05, E05, F05, G05, H05, J05
2 Stage(Ratio 13/20): B13/20, C13/20, D13/20, E13/20, F13/20, G13/20, H13/20, J13/20
Features:
1. High strength of gear box, gears and shafts, sturdy and durable
2. 2 metric output shaft bore diameters(Standard and Optional)
3. Optional backstop to prevent backdriving. Backstop is not recommended for the gear ratio 5
4. Double lips skeleton oil seal combines the functions of seal and dust-proof
5. Widely used in belt conveyor and pulley drive system
Applications:
Conveyors in Mine, Quarry, Gravel Transport, Baggage & Bulk Handling, Animal Feeding, etc.
Conveyors in Mine, Quarry, Gravel Transport, Baggage & Bulk Handling, Animal Feeding, etc.
Installation:
1. Hanging Shaft Mounted
2. Output Flange MountedLubrication:
Oil-bath and Splash
1. Hanging Shaft Mounted
2. Output Flange MountedLubrication:
Oil-bath and Splash
Lubrication
Lubricating Oil: Mineral Oil and Synthetic Oil
Extreme pressure oil is not recommended, unless in case of with backstop
Lubricating Oil: Mineral Oil and Synthetic Oil
Extreme pressure oil is not recommended, unless in case of with backstop
Cooling:
Natural Cooling
Natural Cooling
|
Models
|
Output Shaft Bore
|
|
Max. Torque*
|
Nominal Ratio
|
|
|
|
Standard
|
Optional
|
|
|
|
|
SMR-B
|
30mm
|
40mm
|
277N.m
|
5
13 20 |
|
|
SMR-C
|
40mm
|
50mm
|
468N.m
|
|
|
|
SMR-D
|
50mm
|
55mm
|
783N.m
|
|
|
|
SMR-E
|
55mm
|
65mm
|
1194N.m
|
|
|
|
SMR-F
|
65mm
|
75mm
|
1881N.m
|
|
|
|
SMR-G
|
75mm
|
85mm
|
2970N.m
|
|
|
|
SMR-H
|
85mm
|
100mm
|
4680N.m
|
|
|
|
SMR-J
|
100mm
|
120mm
|
7449N.m
|
|
|
