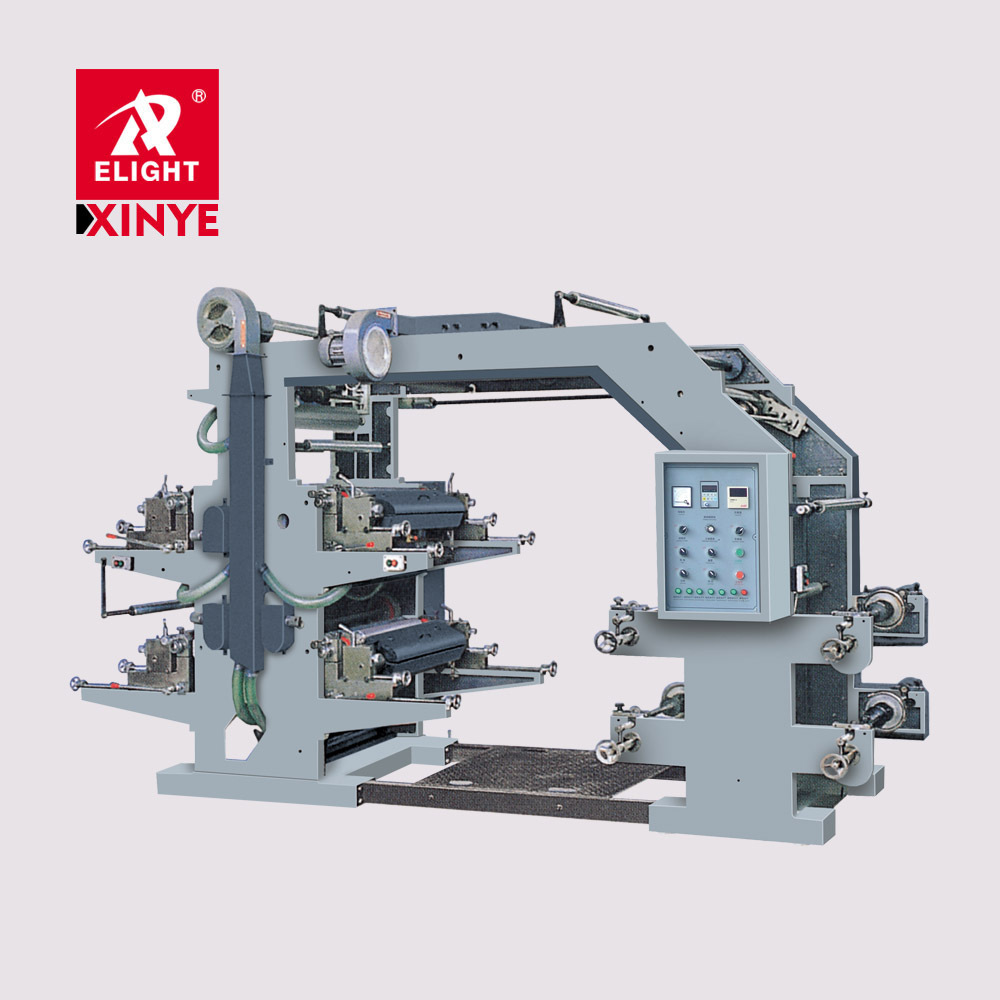

Four-colour flexographic printer,flexible bag printing machine

Four-colour flexible printing machine

YT-4600/4800/4100

1. Easy operation, flexible starting, accurate color register.

2. The meter counter can set printing quantity according to the requirements Stop the machine automatically at the set quantity or whe

n the material is cut off.

3. Lift and lower the printing plate cylinder manually, it will automatically stir the printing ink after lifting.

4. The printing ink is spread by the knurled cylinder with even ink color.

5. Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.

6. 360 continuous and adjustable register device.

7. The imported frequency control of motor speed adapts to different printing speeds,

8. There are Inching/Stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.

*.Main Technical Variables:

Model of Machine	YT-4600	YT-4800	YT-41000
Max. Width of Printing material	600mm	800mm	1000mm
Max. Printing Width	560mm	760mm	960mm
Length Range of Printed Product	191-914mm	191-914mm	191-914mm
Max. Diameter of Roll Material	450mm	450mm	450mm
Printing Speed	5~50m/min	5~50m/min	5~50m/min
Thickness of plate(Including Two-sided Glue Paper)	2.38mm	2.38mm	2.38mm
Total Power	10.87kw	12.5kw	14.37kw
Weight of machine	3000kg	3500kg	4000kg
Overall Dimensions(L*W*H)	4200mmX1600mmX2400mm	4200mmX1800mmX2400mm	4200mmX2000mmX2400mm

Details:

Plates:

Samples:

Certificates:

Our workshop:

Exhibitions:

Loading:

Our office:

Wooden case, wooden block, or nude packing(packing with foam film and pp film).

The finished goods would be sent from our factory to Ningbo by Van,then shipping from Ningbo to customers' country.

Any thing could be discussed as your requirement.

.Installation Services

Installation Services are available with all new machine purchases. We will provide the technical know-how for your operation smooth transition and support for installing, debugging, operation of the machine, it will indicate you how to use this machine well.
