Petroleum Coal Testing Machine Automatic Calorific Value Measuring Instrument Equipment Oxygen Bomb Calorimeter Price
Petroleum Coal Testing Machine Automatic Calorific Value Measuring Instrument Equipment Oxygen Bomb Calorimeter Price
Petroleum Coal Testing Machine Automatic Calorific Value Measuring Instrument Equipment Oxygen Bomb Calorimeter Price
Petroleum Coal Testing Machine Automatic Calorific Value Measuring Instrument Equipment Oxygen Bomb Calorimeter Price
Petroleum Coal Testing Machine Automatic Calorific Value Measuring Instrument Equipment Oxygen Bomb Calorimeter Price
Petroleum Coal Testing Machine Automatic Calorific Value Measuring Instrument Equipment Oxygen Bomb Calorimeter Price
Petroleum Coal Testing Machine Automatic Calorific Value Measuring Instrument Equipment Oxygen Bomb Calorimeter Price
Petroleum Coal Testing Machine Automatic Calorific Value Measuring Instrument Equipment Oxygen Bomb Calorimeter Price

Petroleum Coal Testing Machine Automatic Calorific Value Measuring Instrument Equipment Oxygen Bomb Calorimeter Price

FOB Reference Price: Get Latest Price
≥5 Pieces
US $1400
≥10 Pieces
US $1200
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Brand Name:
GOLDSU
Model Number:
ZDHW-8E
Product name:
Coal Calorific Value Meter Laboratory Bomb Calorimeter

Quick Details

Warranty:
1 Year
Power:
Electronic
Place of Origin:
Shanghai, China
Brand Name:
GOLDSU
Model Number:
ZDHW-8E
Product name:
Coal Calorific Value Meter Laboratory Bomb Calorimeter
Product Description

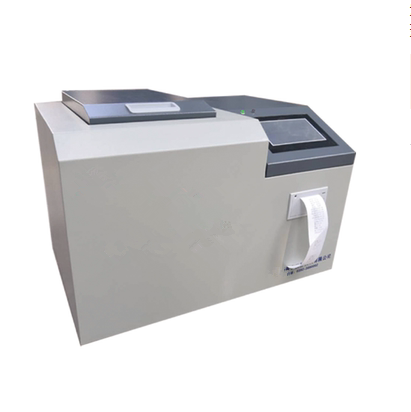

High Precision Microcomputer Automatic Oxygen Bomb Calorimeter

I.Overview
This instrument is used to measure the calorific value of solid, liquid and other combustible materials (coal, petroleum food, wood, biomass).
The instrument is a new type of energy-saving analysis instrument developed by our company. The calculation program carefully compiled improves the measurement accuracy greatly. Color and touch display, all Chinese display, good user interface.
The measurement process is automatically controlled to reduce human error. Print cartridge, dry base high position
The results are clear and clear.

II.Technical features
1. It has the advantages of simple structure, reliable performance and strong anti-interference ability.
2. The test steps such as flushing, discharging, water level setting, mixing, ignition, temperature recovery, correction,
calculation and printing are completed automatically to avoid human error and improve the accuracy and precision.
3. The unique calibration technology makes the requirements of the instrument to the environment relatively relaxed. The accuracy of the test is improved while the stability of the long-term operation is ensured.

III.Working principle
0.9-1.1g of the substance to be tested is put into a heat crucible (heat-resistant and anti-corrosion), and the crucible is placed in an oxygen bomb added with 2.8-3.2mpa oxygen, and put into the inner cylinder of the calorimeter. The inner cylinder is added with quantitative distilled water. The heat output of the combustible can be calculated according to the rise of water temperature and the heat capacity of the calorimetry system.

IV.Technical index

Heat capacity: About 10500 J / K
Oxygen bomb capacity: 300ml
Oxygen charging pressure: 2.8 ~ 3.2 MPa
Pressure resistance: water pressure 20MPa
Weight: 2.5 kg
Overall dimension: 650 * 450 * 500 mm
Temperature range: 0 ~ 40 ℃
Response time: < 4 S
Resolution: 0.0001 ℃
Linearity: < 0.08% per 5 ℃ temperature rise range
Temperature measurement error: ± 0.003 ℃ for every 5 ℃ temperature rise range
Power supply voltage: AC220V ± 10%
Humidity: ≤ 80%
Power: 30W
Ignition voltage: AC24 V
Ignition time: 5S



To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Our Services
If you encounter with any problems during the testing process,we promise providing urgent guidence and after-sales sevice within 48 hours and solution providing within 3 working days. If customers require on-site service, the transport and travel expense shall be responsible for the cost.
1. Pre-service 24 Hours online service for customers' consultation.
2. Middle service
- -Fullfill customer's request:
--Payment method depends on customer.
--Promptly production and delivery
--Can provide invoice value if you want to decrease your tax.
3. After sale service

--One year warranty service and all life maintenance.
--Technical Egineer are avalible for oversea trainning.
--Remote control technical consult
