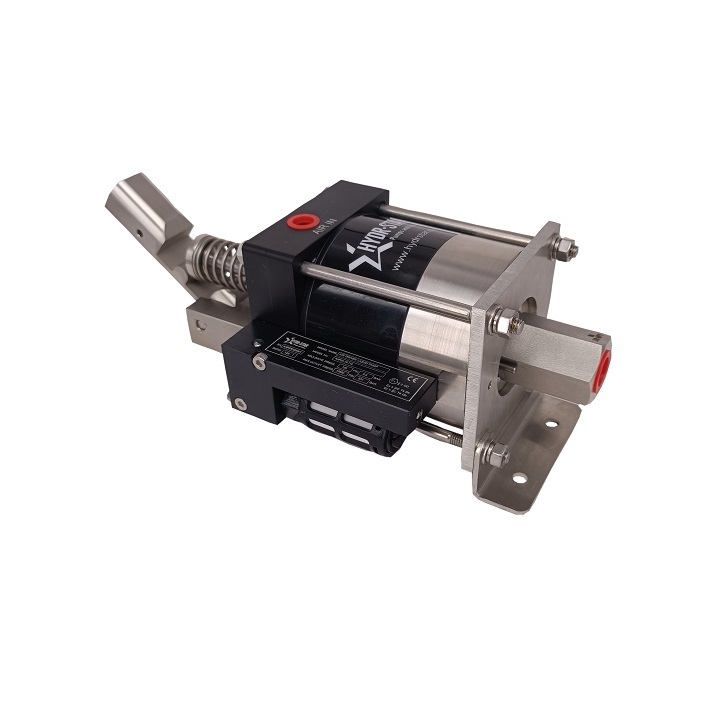

Good quality HYDR-STAR AHP03-1S-21-H Mini pneumatic driven water pressure testing pump with handle

Good quality HYDR-STAR AHP03-1S-21-H Mini pneumatic driven water pressure testing pump with handle

FOB Reference Price: Get Latest Price

≥1 Sets

US $556

≥10 Sets

US $500.4

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Warranty:: 1 year

Brand Name:: HYDR-STAR

Model Number:: AHP03-1S-21-H, AHP03-1S-21-H

Place of Origin:: Hubei, China

Horsepower:: pneumatic

Cable Length:: /

Outlet Size:: 3/8'', 1/4''

Power:: /

motor:: /

Product name:: Air driven liquid pump

Max. out press.:: 2600 psig

Max. Flow:: 2.13 l/min

Outlet port:: 1/4'' NPT

Inlet port:: 3/8'' NPT

Standard or Nonstandard:: Standanrd

Medium:: hydraulic fluids, water

Certification:: ISO9001: 2015, CE, ATEX

Quick Details

Application:: Pharmaceutical industry, Pressure testing, Jacking and Lifting, Hydraulic cylinder actuation, Liquefied gas transfer, Well Control Panel

Pressure:: High Pressure

Voltage:: /

Warranty:: 1 year

Brand Name:: HYDR-STAR

Model Number:: AHP03-1S-21-H, AHP03-1S-21-H

Place of Origin:: Hubei, China

Horsepower:: pneumatic

Cable Length:: /

Outlet Size:: 3/8'', 1/4''

Power:: /

motor:: /

Product name:: Air driven liquid pump

Max. out press.:: 2600 psig

Max. Flow:: 2.13 l/min

Outlet port:: 1/4'' NPT

Inlet port:: 3/8'' NPT

Standard or Nonstandard:: Standanrd

Medium:: hydraulic fluids, water

Certification:: ISO9001: 2015, CE, ATEX

Products Specification

Air Driven Liquid Pump

Air driven liquid pumps operate on the principle of differential working areas. An air piston drives a smaller diameter plunger or piston to provide a pressure ratio.The pressure ratio is the method of determining maximum outlet pressure available. HYDR-STAR model numbers reflect the nominal pressure ratio of the pumps.

HYDR-STAR liquid pumps will cycle automatically when compressed air is first applied to the drive. It will start cycling at its maximum speed thus producing maximum fluid flow. At this stage, the pump is acting as a transfer pump, filling the pressure system with fluid. As resistance increases in the system (creating back pressure to the pump), the pump will decrease its reciprocating action. Back pressure in the system finally balances with the incoming air drive pressure times the ratio. At this point, the pump will stall and maintain pressure without consuming any energy. If there is further demand on the system for flow, the pump will automatically start cycling again.

Features

☆ Up to 100,000 psi (7000 bar) capability.

☆ Infinitely variable cycling speed. Stall feature at pre- determined pressure to hold that pressure without consuming power .

☆ Easily automated, with many modification and control options available.

☆ Suitable for most liquids and liquefied gases.

☆ Can bemanufactured to meet CE, ATEX and NACE.

☆ Robust, reliable, compact and easy to maintain proven design.

☆ Unbalanced cycling spool provides immediate response to pressure changes.

☆ Also available in standard, Configuration required by customer.

☆ No need for air-line lubrication, which saves costs and prevents contamination.

☆ Special design can be chosen, this design can replace the high pressure seal without disassembling the pump

☆ Air Drive line lubrication not required.

☆ Compatible with all hydraulic fluids, plain water, distilled & deionized water, solvents, mild chemicals and most liquefied aerosol type gases.

☆ Range of models to provide up to 100,000 psi intermittent output pressure.

☆ Alternative gases that can drive the pump include nitrogen,vapor from liquefied gas,pipeline natural gas and sour natural gas with proper modifications.

☆ Hydraulic pressure is held without energy consumption.

☆Explosion proof ,requires no electrical power or connections.

☆ Intrinsically safe.

☆ Compact, lightweight and weatherproof.

☆ Easy to adapt automatic controls.

☆ Contamination tolerant.

☆ Ideal for stop-start applications under full load.

Good quality HYDR-STAR AHP03-1S-21-H Mini pneumatic driven water pressure testing pump with handle

Features

★ Choice of 9 ratios. ★ Flows to 13.6 l/min. ★ Choice of wet materials. ★ Pressures to 25000 psi(1723bar) ★ All hydraulic fluids, water(plain or DI),solvents, mild chemicals,liquefied gases.
