Quick Details
-
Power:
-
0-80kw
-
Dimension(L*W*H):
-
various in different tank
-
Weight:
-
2800 KG
-
Machinery Capacity:
-
1000L/Batch
-
Key words:
-
Beer equipment
-
Capacity:
-
1000L
-
Material:
-
Stainless Steel 304/316
-
Brewhouse:
-
Two vessels or three vessels brewhouse
-
Thickness of Tanks:
-
Inner 3mm/external 2mm
-
Insulation thickness:
-
80mm/customized
-
Application:
-
Brewpub Beer Brewery Restaurant
-
Heating method:
-
Steam Electric Fire
-
Inner Polishing Precision:
-
0.4~0.6um
-
Control system:
-
PID or PLC controller
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Meto
-
Voltage:
-
380V/50Hz
-
Power:
-
0-80kw
-
Dimension(L*W*H):
-
various in different tank
-
Weight:
-
2800 KG
-
Machinery Capacity:
-
1000L/Batch
-
Key words:
-
Beer equipment
-
Capacity:
-
1000L
-
Material:
-
Stainless Steel 304/316
-
Brewhouse:
-
Two vessels or three vessels brewhouse
-
Thickness of Tanks:
-
Inner 3mm/external 2mm
-
Insulation thickness:
-
80mm/customized
-
Application:
-
Brewpub Beer Brewery Restaurant
-
Heating method:
-
Steam Electric Fire
-
Inner Polishing Precision:
-
0.4~0.6um
-
Control system:
-
PID or PLC controller

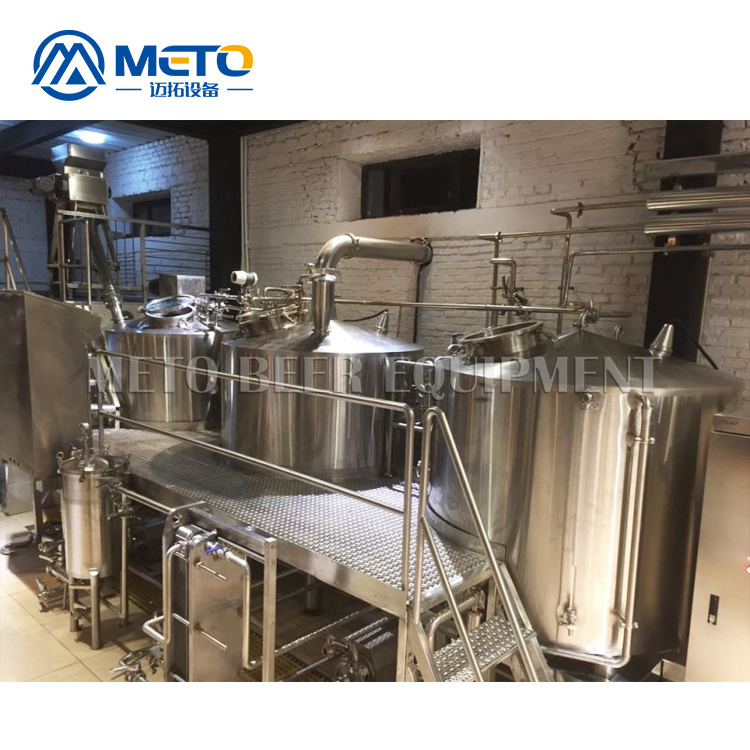

1000 liter microbrewery beer brewery equipment brewing machine to make craft beer
| 1000L For Example | |||
| Milling System | Miller | 300 KG/H | Double Roller,Noise<60db |
| Heating System | Boiler | 100 KG/H | Electric,Gas,Oil,Coal Type/CE certification |
| Brewhouse System | Mash/Lauter tun | 1000L |
Mashing Process:Decoction.Infusion.Multi-step infusion
|
|
Brew Kettle/
Whirlpool Tank |
1000L | ||
| Hot Water Tank | 1500L | ||
| Heat exchanger | 10 SQM | Stainless steel plate | |
| Fermentation System | Fermentation Tank | 1000L |
Top manway/Side manway; Drying hop port to brew IPA Dimple Plate Cooling jacket; Carbonation port to fill CO2 |
| Cooling System | Glycol Water tank | 3000L | Equiped with PU level indicator |
| Chiller | 10HP | UCE certified electric elements,Copeland compressor | |
| Pump | 5T | ||
| Cleaning System | Disinfection Tank | 100L | SUS304 full welded |
| Alkali Tank | 100L | ||
| Control System | Control Cabinet | PID / PLC | Manual/Semi-automatic/Automatic |
| Optional | Auger System/ Grain Case/Grist Hydrator /Piping flow panel for Brewhouse | ||
Shandong Meto Beer Equipment Company Limited is the professional beer equipment manufacture which integrates design, research and development, production, sales, installation & commission, and after-sales service. Meto Beer Equipment is started from 2013 , based on the professional teams & business experiences , Meto make the rapid development , until now we have 15000 Square meters workingshop , 1000 Square meters office area and 1 4 0 employees .
1.Q: Are you a manufacturer?
A: Yes, we have been in providing the professional products in this field for 10 years.
2.Q:What exactly does the 36 month warranty cover?
A:36 month warranty cover all the main tank.one years for the accessories and spare parts
.
3.Q: Can your factory produce equipment according to our drawing or samples?
A: Yes, we can do.
4.Q:Is the 15 day set-up by your engineers mandatory, or can we opt to pass on that service?
A:Yes ,you can,we will offer the manual or video to let you know how to connect the equipment.
5.Q: How to calculate the daily output? How many fermenters do I need?
A: Usually theequipment models such as 300L and 500L are only 300L, 500L wort for mashing capacity. Beer production is according to your fermentation process requirements and the number of fermenters configured.
6.Q: How you pack the products?
A: Normally as the export standard packaging or as you required.
7.Q: What is your available port of shipment?
A: Qingdao port,shanghai etc.
