Quick Details
-
Panel Efficiency:
-
20%-22%
-
Type:
-
Standard Solar Panel, Flexible
-
Material::
-
Fabric + PET/ETFE Solar Panel
-
Product name::
-
120W 12V solar panel
-
Application::
-
Charging power pack, batteries
-
Color::
-
Black fabric, customized color;
-
Solar cell::
-
Monocrystalline solar cell
-
Efficiency::
-
20%-22%
-
Power max::
-
120W
-
Output::
-
18V+5V
-
Warranty::
-
1Year warranty
-
Warranty:
-
1year
-
Size:
-
Open size: 1420mm*725mm*5mm
-
Certificate:
-
CE ROHS FCC
Quick Details
-
Brand Name:
-
Shenzhen Solare
-
Model Number:
-
SOL-MP120W
-
Place of Origin:
-
Guangdong, China
-
Panel Efficiency:
-
20%-22%
-
Type:
-
Standard Solar Panel, Flexible
-
Material::
-
Fabric + PET/ETFE Solar Panel
-
Product name::
-
120W 12V solar panel
-
Application::
-
Charging power pack, batteries
-
Color::
-
Black fabric, customized color;
-
Solar cell::
-
Monocrystalline solar cell
-
Efficiency::
-
20%-22%
-
Power max::
-
120W
-
Output::
-
18V+5V
-
Warranty::
-
1Year warranty
-
Warranty:
-
1year
-
Size:
-
Open size: 1420mm*725mm*5mm
-
Certificate:
-
CE ROHS FCC

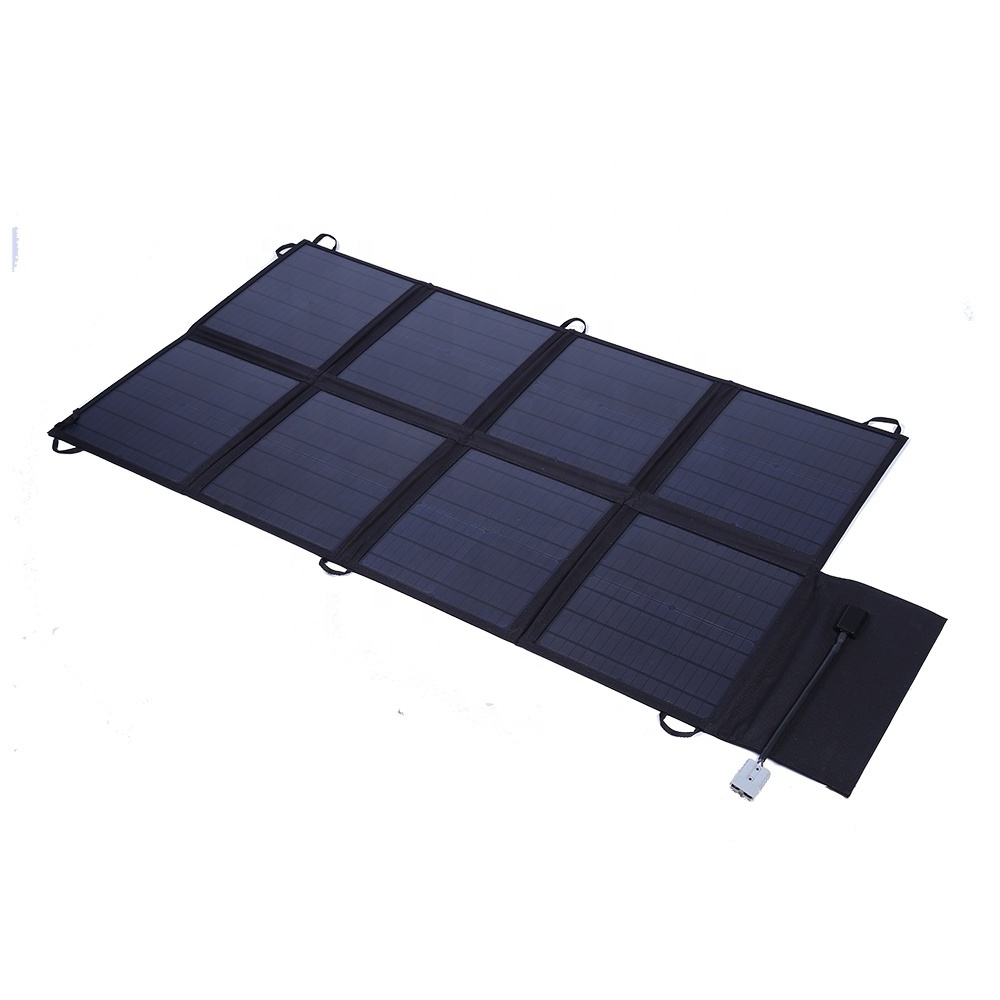

Lightweight Solar Panel Monocrystalline A Grade Folding 120W 12V solar panel kit from solar panel manufacturer
Dear Customers:
Thank you for visiting our page.
The product you are viewing is the high quality sunpower solar folding panel charger, this is mainly used for converting the solar energy into DC electricity, for using in the camping, or caravanning etc.The voltage we designed is mainly 18V, suitable for camping, charging 12V batteries or other 18V devices etc.
We can also customize into other voltages, such as 21V that suitable for charging laptops.
Specification:
Product name: Monocrystalline A Grade Folding 120W 12v solar panel kit from solar panel manufacturer
Model No : FLF-MP120W
Cloth material: Nylon 1000D
Bag color: Black, camouflage, or other color, can be customized;
Open size: 1420mm*725mm*5mm;
Folding size : 355mm*365mm*40mm;
Folding number: 8folds
Net weight: 6.5KGS
Solar Cell: High quality monocrystalline solar panel 18%-19%
Maximum power(Pm): 120W
Solar Panel type: PET laminated solar panel, with PCB stiffness backer sheet, to strengthen the product. (Optional with ETFE lamination solar panel with Cordura material)
Power Tolerance +3%~-3%
Voltage at max power(Vmp): 18.0V
Current at max power(Imp): 6.6A
Open circuit voltage(Voc): 21.6V
Short circuit current(Isc): 7.26A
Operating Temperature: - 40℃-+85℃
Output cable: MC4, SAE, DC, Anderson connector, Battery Clip Jumper, Car Cigarette Lighter Sockets
Detailed Specification:
Product name | Folding 120W 12v solar panel kit |
Model No : | FLF-MP120W |
Bag material: | Nylon 1000D |
Bag color : | Black, camouflage, or other color, can be customized |
Open size: | 1420 mm* 725 mm*5mm |
Folding size : | 355mm*36 5 mm*40mm; |
Folding number: | 6folds |
Net weight: | 6.5KGS |
Solar Cell: | Monocrystalline solar panel |
Operating Temperature: | - 40℃-+85℃ |
Output cable |
MC4,
SAE, DC,
Anderson connector,Battery Clip Jumper,Car Cigarette Lighter Socket
|
More Product Photos:
2018 hot sale 120W 12v solar panel,solar panel kit from solar panel manufacturer
2018 hot sale 120W 12v solar panel,solar panel kit from solar panel manufacturer
2018 hot sale 120W 12v solar panel,solar panel kit from solar panel manufacturer
PWM Controller:
Regulator Type: |
PWM (Power Width Modulator) Charge controller |
Max Solar Input: |
<50V |
Float Charge: |
13.7V – Default, adjustable |
Discharge Stop: |
10.7V - Default, adjustable |
Discharge Reconnect: |
12.6V - Default, adjustable |
USB Output: |
5V / 3A |
Dimensions: |
150 x 78 x 35 mm |
Weight: |
0.2kg |
Warranty Policy:
(1)All these products will be covered with 1year warranty;
(2) Within the warranty period, the products you found with defects, can be offered with new ones as replacements.
(3)Other service: Apart from these, we will also provide OEM/ODM service based on your requirements.
Company Introduction:
We are an honest factory, only focus on the manufacturing qualified products to all our customeres. Any problem/defect you find in our products, we will sort out without any hesitation.
Hope you can give us a chance to prove everything to you.
On the other hand, we have 3 professional engineers, with rich experience in electronic and structural design of solar products. Our cheif engineer is already 70years old, but still energetic in R&D of all new products.
Please send me an email at:sales(at)lonsemsolar(dot)com;
