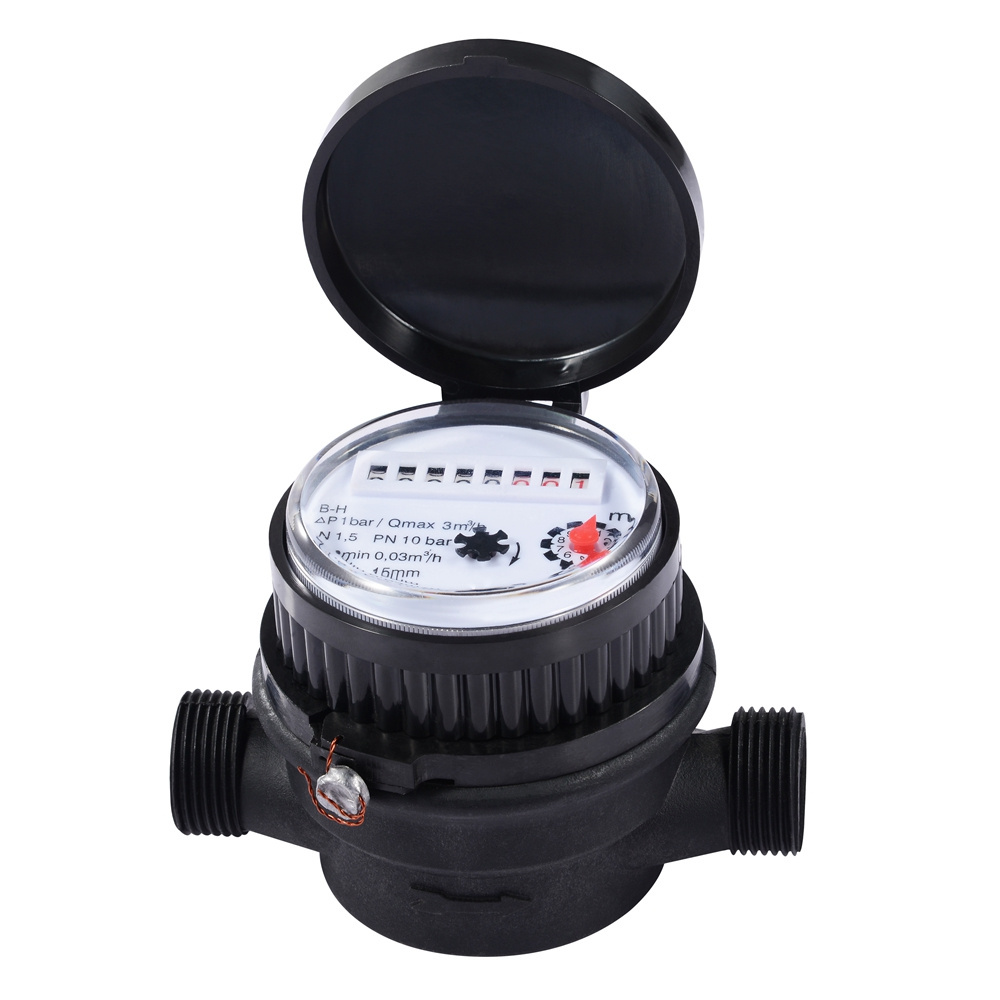

Quick Details
-
Brand Name:
-
OEM
-
Model Number:
-
LXDG-13A-20A
-
Material:
-
Nylon body
-
Dial face:
-
Dry type
-
Accuracy:
-
Class B
-
Product name:
-
LXDG-13A-20A
-
Color:
-
Black body color
-
Temperature:
-
0-40 ℃
Quick Details
-
Warranty:
-
5 years
-
Type:
-
Turbine meters
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
OEM
-
Model Number:
-
LXDG-13A-20A
-
Material:
-
Nylon body
-
Dial face:
-
Dry type
-
Accuracy:
-
Class B
-
Product name:
-
LXDG-13A-20A
-
Color:
-
Black body color
-
Temperature:
-
0-40 ℃
MAIN TECHNICAL DATA According to ISO4064 (GB/T778.1-1996) Standard
|
Size |
Class |
Qs
|
Qp
|
Qt
|
Qmin
|
Min reading |
Max reading |
|
|
DN(mm) |
Inch |
m³/h |
L/h |
m³ |
||||
|
15 |
1/2" |
B |
3 |
1.5 |
120 |
30 |
0.0001 |
99999 |
|
20 |
3/4" |
B |
5 |
2.5 |
200 |
50 |
0.0001 |
99999 |
MAIN TECHNICAL DATA According to ISO4064 (GB/T778.1-1996) Standard
|
DN
|
Mm
|
15
|
20
|
|
Q4(m³/h) |
3.125 |
5 |
|
|
Q3(m³/h) |
2.5 |
4 |
|
|
R80 |
Q2(L/h) |
50 |
80 |
|
Q1(L/h) |
31.25 |
50 |
|
|
R100 |
Q2(L/h) |
40 |
64 |
|
Q1(L/h) |
25 |
40 |
|
|
Min reading(m³) |
0.0001 |
0.0001 |
|
|
Max reading(m³) |
99999 |
99999 |
|
|
Max pressure(MAP) |
16 |
16 |
|
|
Max loss(ΔP) |
63 |
63 |
|
|
Max temperature |
T50 |
T50 |
|
INDICATING ERROR
At low zone is ± 5% from minimum flow rate (qmin) to transitional flow rate (qt) exclusive boundary
At high zone is ± 2% from transitional flow rate (qt) to overload flow rate (qs)
DIMENSIONS AND WEIGHT
|
Meter size |
L |
W |
H |
Connecting Thread |
Weight |
|
Dia |
Length |
Width |
Height |
D |
Kg |
|
DN |
|
|
|
|
|
|
(mm) |
mm |
|
|
||
|
15 |
110 |
77 |
80 |
G 3/4B |
0.35 |
|
20 |
130 |
77 |
80 |
G 1''B |
0.45 |
WORKING CONDITION
Water temperature:≤4 0 ℃ for cold water meter
Working pressure:≤ 1.6Mpa
