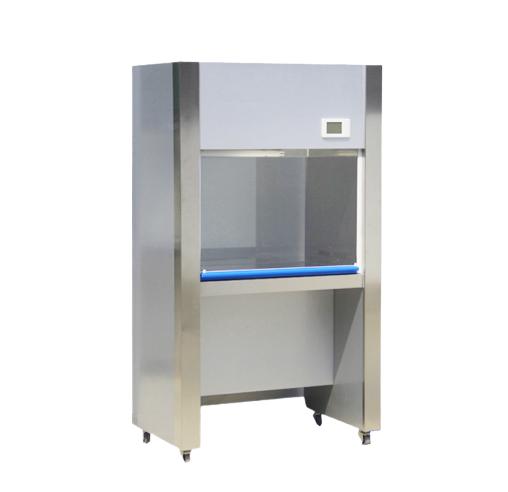

SW-CJ-1D High Quality Air Cleaning Laboratory Laminar Flow Cabinet Laminar Flow Cabinets Laminar Air Flow Cabinet
SW-CJ-1D High Quality Air Cleaning Laboratory Laminar Flow Cabinet Laminar Flow Cabinets Laminar Air Flow Cabinet
SW-CJ-1D High Quality Air Cleaning Laboratory Laminar Flow Cabinet Laminar Flow Cabinets Laminar Air Flow Cabinet
SW-CJ-1D High Quality Air Cleaning Laboratory Laminar Flow Cabinet Laminar Flow Cabinets Laminar Air Flow Cabinet
SW-CJ-1D High Quality Air Cleaning Laboratory Laminar Flow Cabinet Laminar Flow Cabinets Laminar Air Flow Cabinet
SW-CJ-1D High Quality Air Cleaning Laboratory Laminar Flow Cabinet Laminar Flow Cabinets Laminar Air Flow Cabinet
SW-CJ-1D High Quality Air Cleaning Laboratory Laminar Flow Cabinet Laminar Flow Cabinets Laminar Air Flow Cabinet
SW-CJ-1D High Quality Air Cleaning Laboratory Laminar Flow Cabinet Laminar Flow Cabinets Laminar Air Flow Cabinet

SW-CJ-1D High Quality Air Cleaning Laboratory Laminar Flow Cabinet Laminar Flow Cabinets Laminar Air Flow Cabinet

FOB Reference Price: Get Latest Price
≥1 Pieces
US $478
≥15 Pieces
US $448
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Model Number:
SW-CJ-1D
Clean grade:
Grade 100(209 E U.S. Federal)
Number of bacteria:
≤0.5per utensil.hour(90mm utensil)
Noise:
≤62dB
Power:
220V/50HZ
Wind Speed:
0.25-0.45m/s (fast and slow 2 speeds)
illumination:
≥300LX
Working area dimension(W*D*H):
700*490*515mm
Overall dimension(W*D*H):
855*550*1600mm

Quick Details

Weight (KG):
120
Place of Origin:
Chongqing, China
Brand Name:
Drawell, Drawell
Model Number:
SW-CJ-1D
Clean grade:
Grade 100(209 E U.S. Federal)
Number of bacteria:
≤0.5per utensil.hour(90mm utensil)
Noise:
≤62dB
Power:
220V/50HZ
Wind Speed:
0.25-0.45m/s (fast and slow 2 speeds)
illumination:
≥300LX
Working area dimension(W*D*H):
700*490*515mm
Overall dimension(W*D*H):
855*550*1600mm
SW-CJ-1D High Quality Air Cleaning Laboratory Laminar Flow Cabinet Laminar Flow Cabinets Laminar Air Flow Cabinet
Working Principle:
First, the air is inhaled through the fan and then filtered by the HEPA filter through the static pressure
box. After that the filtered clean air is sent out in the state of vertical or horizontal air flow, so that the operation area continues to reach the 100-level cleanliness under the control of clean air and to ensure the production of environmental cleanliness requirements.

Application Range:
The vertical flow clean bench is noisy than horizontal clean bench because its fan is installed at the top. The
wind blowing vertically so it is often used in medical engi- neering to ensure the operator’s health. Vertical laminar flow clean bench is widely used in areas requiring partial cleaning, laboratories, biopharmaceuticals, optoelectronics, microelectronics, hard disk manu- facturing and other fields.

Characteristics:
1. Adopt Arbitrary positioning sliding door system
2. The shell is made of colored steel plate, and the working table is SUS304 brushed stainless steel, which is corrosion resistant and easy to clean.
3. Lighting and sterilization system safety interlock
4. Digital explicit liquid crystal control panel. Three stages wind speed(fast, medium and slow ). Except SW-CJ-1D and SW-CJ-1G which only has two stages of wind speed.
5. Vertical quasi-closed table, air curtain stroke of downdraft in the operation room, which can effectively prevent external gas input to keep the operation area clean.
6.Equipped with HEPA filter. With primary filter for preliminary filtration, which can effectively extend the life span of HEPA filter.
Model
SW-CJ-1D
SW-CJ-2D
Clean grade
Grade 100(209 E U.S. Federal)
Grade 100(209 E U.S. Federal)
Number of bacteria
≤0.5per utensil.hour(90mm utensil)
≤0.5per utensil.hour(90mm utensil)
Noise
≤62dB
≤62dB
Power
220V/50HZ
220V/50HZ
wind speed
0.25-0.45m/s(fast and slow 2 speeds)
0.25-0.45m/s(slow,medium and fast 3 speeds)
illumination
≥300LX
≥300LX
Working area dimension(W*D*H)
700*490*515mm
1140*485*515mm
Overall dimension(W*D*H)
855*550*1600mm
1300*550*1600mm
HEPA filter size and quantity
695*460*38*1pc
1135*460*38mm*1pc
Fluorescent/UV lamp specifications and quantity
15W*1PC / 15W*1PC
30W*1PC / 30W*1PC
Operator
one person
two persons
