Quick Details
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Anytester
-
Weight:
-
80 KG
-
Number of spindles:
-
2
-
Mechanical speed:
-
Up to1000m/min
-
Package bobbin:
-
0°, 3°30, 4°20, 5°57, 9°15
-
Package diameter:
-
Up to 290 mm
-
Package weight:
-
Up to 3kg
-
Yarns / count:
-
Cotton. flax, wool
-
Power consumption:
-
Installed power:100W/spindle, Power consumption:65W/spindle
-
Auto stop while yarn brea:
-
With electronic yarn sensor
-
Automatic length fixing:
-
Automatic length fixing,max:999999m
-
Power supply:
-
1 phased 220V ,50/60HZ
Quick Details
-
Marketing Type:
-
Hot Product 2024
-
Application:
-
laboratory
-
Production Capacity:
-
500
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Anytester
-
Weight:
-
80 KG
-
Number of spindles:
-
2
-
Mechanical speed:
-
Up to1000m/min
-
Package bobbin:
-
0°, 3°30, 4°20, 5°57, 9°15
-
Package diameter:
-
Up to 290 mm
-
Package weight:
-
Up to 3kg
-
Yarns / count:
-
Cotton. flax, wool
-
Power consumption:
-
Installed power:100W/spindle, Power consumption:65W/spindle
-
Auto stop while yarn brea:
-
With electronic yarn sensor
-
Automatic length fixing:
-
Automatic length fixing,max:999999m
-
Power supply:
-
1 phased 220V ,50/60HZ
Product Description

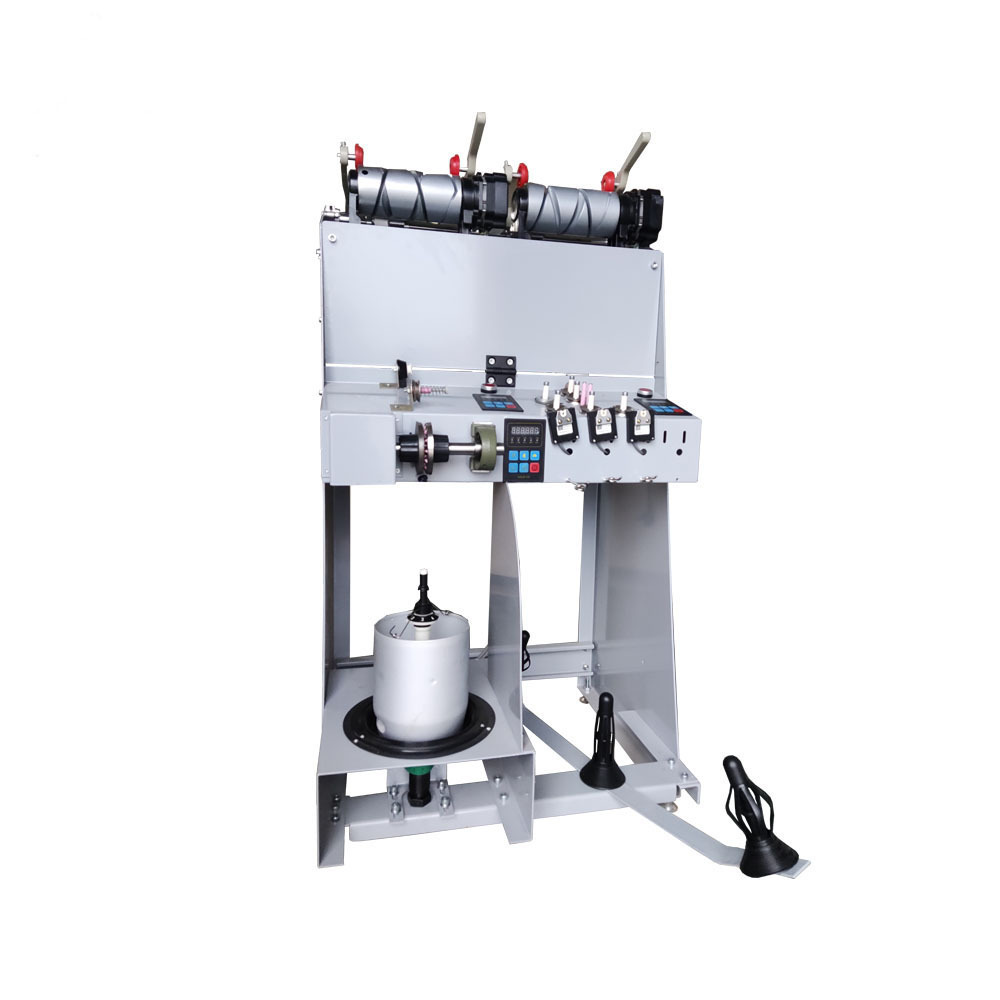

AT207A Doubling and Twisting Machine
is a combination machine of winding ad twisting.
Specification
|
Model
|
AT207A
|
|
Number of spindles
|
1 for winding
1 for double twisting |
|
Mechanical speed
|
Up to1000m/min (depending on yarn quality and count) Down to 25m/min
|
|
Package bobbin
|
0°, 3°30’, 4°20’, 5°57’, 9°15′
|
|
Package diameter
|
Up toφ 290 mm
|
|
Package weight
|
Up to 3kg
|
|
Yarns / count
|
Cotton. flax, wool,
|
|
Power consumption
|
Installed power:100W/spindle,
Power consumption:65W/spindle |
|
Auto stop while yarn break
|
With electronic yarn sensor, the spindle will stop when yarn break
|
|
Automatic length fixing
|
Automatic length fixing,max:999999m
|
|
Slow start
|
For smooth start and better winding quality,supporting individual slow start for each spindle
|
|
Power supply
|
220V , 50/60HZ, 1 phased
|
Details & Features
★
Using high quality alloy drums with optimized groove shape, which has the advantages of good anti-overlapping characteristics, light weight, good wear resistance, and static elimination.
★
. Single winding motor control for each spindle, electronic fixed-length, and single spindle automatic stop while yarn breaking or fully filled.
★
. High-speed creel with gas spring, which can keep constant winding pressure. This creel is stable and reliable.
★
.Twist by independent regulation in 10-500 NC twist.
Our Company
Onsite service
Installation and training service is available
Testing service
Free sample testing before order is available
Lead time
15 working days lead time for most product
Packing & Delivery
|
Packaging
|
|
|
|
Dimensions
|
1160x510x1050mm
|
|
|
Weight
|
Approx. 80kg
|
|
|
Packaging Details
|
1. The equipment is covered with film is protect it from water vapour during the trip.
2. The box is filled with foam to protect the equipment from impact.
3. Exported wooden box made from plywood, don't need fumigated.
|
|
Payment
|
Payment Term
|
T/T
|
EXW
|
30% T/T in advance, paid the balance before shipment
|
||
|
|
|
FOB
|
|
||
|
|
|
CFR(C&F)
|
|
||
|
|
|
CIF
|
|
||
|
|
L/C
|
L/C amount above 50,000 usd, we can accept L/C at sight
|
|
||
|
|
West Union
|
Amount lower than 5000usd
|
|
||
|
|
West Union
|
|
|
||
|
Delivery Time
|
7~10days after receiving payment for one container
|
|
|
||
