All of our products are always packed with anti-static bags, then packed by bubble bags, and finally packed in cardboard boxes.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
FEIXIAN
-
Weight (KG):
-
2 KG
-
Product Shape:
-
Cylindrical
-
Surface Treatment/Color:
-
Brass colored shell
-
External Dimensions:
-
6*14mm(diameter * length)
-
Peak Wavelength:
-
520nm±10nm
-
Output Optical Power:
-
<0.5mW, < 1mW, < 5mW, < 10mW
-
Beam Shape:
-
Dot
-
Operating Voltage:
-
2.6~4.2VDC
-
Operating current:
-
< 80mA(0.5mW), < 100mA(1mW), < 150mA(5mW), < 180mA(10mW)
-
Operating temperature:
-
-30℃~+50℃
-
Laser Safety Class:
-
CLASS II(0.5mW, 1mW), CLASS IIIA(5mW), CLASS IIIB(10mW)
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Spare Parts Type:
-
Laser type
-
Marketing Type:
-
Hot Product 2024
-
Brand Name:
-
FEIXIAN
-
Weight (KG):
-
2 KG
-
Product Shape:
-
Cylindrical
-
Surface Treatment/Color:
-
Brass colored shell
-
External Dimensions:
-
6*14mm(diameter * length)
-
Peak Wavelength:
-
520nm±10nm
-
Output Optical Power:
-
<0.5mW, < 1mW, < 5mW, < 10mW
-
Beam Shape:
-
Dot
-
Operating Voltage:
-
2.6~4.2VDC
-
Operating current:
-
< 80mA(0.5mW), < 100mA(1mW), < 150mA(5mW), < 180mA(10mW)
-
Operating temperature:
-
-30℃~+50℃
-
Laser Safety Class:
-
CLASS II(0.5mW, 1mW), CLASS IIIA(5mW), CLASS IIIB(10mW)
Products Description

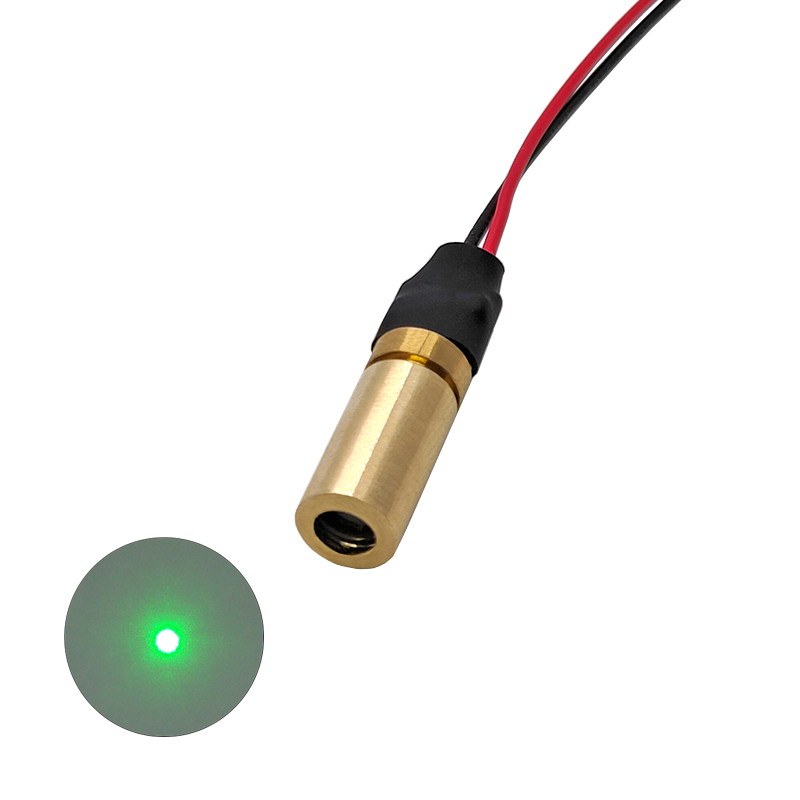

This product is a small size of green laser module, dot punching laser module, high quality green light, wavelength is 520nm, power can be done 0.5mW, 1mW, 5mW, 10mW shell colour copper and black can be selected, need to be the kind of customer service to ask for prices.
Details Images
Product Paramenters
|
Product Code
|
H6352005D, H635201D, H635205D, H6352010D
|
|
External Dimensions
|
Φ6×14mm(
Other sizes customizable
)
|
|
Housing Material
|
Brass(All metal shell),
Lens material is A grade high quality glass lens
|
|
Surface Treatment/Color
|
Brass colored outer shell(
Customizable black colored shell, with surface insulation treated with oxide mist black
)
|
|
Peak Wavelength
|
520nm±10nm(
Other wavelengths customized
)
|
|
Output Optical Power
|
< 0.5mW, < 1mW, < 5mW, < 10mW
|
|
Operating Distance
|
< 200M(Indoor environment, laser will be affected by ambient light interference, and the distance may vary)
|
|
Beam shape and size
|
Dot, Elliptical, < 1mm(Close range fixed point focusing), < 6mm at 10m (can be adjusted according to customer requirements for optimal effect)
|
|
Focal Mode
|
External focusing or Fixed focus(
Optional, default to External focusing
)
|
|
Circuit Control
|
APC(
TTL customised
)
|
|
Operating Voltage
|
2.6~4.2VDC
|
|
Operating Current
|
I < 80mA(0.5mW), I < 100mA(1mW), I < 150mA(5mW), I < 180mA(10mW)
|
|
Operating Temperature
|
-30℃~+50℃
|
|
Storage Temperature
|
-40℃~+80℃
|
|
Mean Time To Failure
|
≥ 10000 hours
|
|
Tail Wire
|
28#The red and black electronic cable is approximately 15cm long
(taken together with the power adapter, equipped with a 1-meter long DC female plug cable)
|
|
Laser Safety Class
|
CLASS II(0.5mW, 1mW), CLASSIIIA(5mW), CLASSIIIB(10mW)
|
|
Packaging Content
|
One Laser
|
|
Use To
|
Can be used in industrial laser positioning, aiming devices, laser flashlights, instrument equipment, medical equipment (health equipment), military, anti-counterfeiting and security, stage lighting, tools, USB drives, mobile phones, projection teaching flip pens, temperature (ranging) instruments, leveling instruments, marking instruments, level rulers, electronics enthusiasts, indoor and outdoor decoration and other products.
|
Light Effect Display
Product packaging
