Vehicle Truck Car Real Time Tracking GPS Speed Limiter

Vehicle Truck Car Real Time Tracking GPS Speed Limiter

FOB Reference Price: Get Latest Price

≥2 Pieces

US $59

≥10 Pieces

US $58

≥500 Pieces

US $57

≥1000 Pieces

US $55

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: UniGuard

Usage:: GPS Speed Limiter

Network:: GSM/GPRS 850/900/1800/1900MHz

Certificate:: CE ROHS

Battery:: 800 mAh Rechargeable Li-ion

Battery life:: 3 hrs

Weight:: 270g

Tracking system:: Web and APP

Size:: 137*75*29mm

Quick Details

Function:: GPS / GSM

Control Distance:: Unlimited

Warranty:: 24 Months

Place of Origin:: Guangdong, China

Brand Name:: UniGuard

Usage:: GPS Speed Limiter

Network:: GSM/GPRS 850/900/1800/1900MHz

Certificate:: CE ROHS

Battery:: 800 mAh Rechargeable Li-ion

Battery life:: 3 hrs

Weight:: 270g

Tracking system:: Web and APP

Size:: 137*75*29mm

3G Vehicle Truck Car Real Time Tracking GPS Speed Limiter

Brands

Product attributes

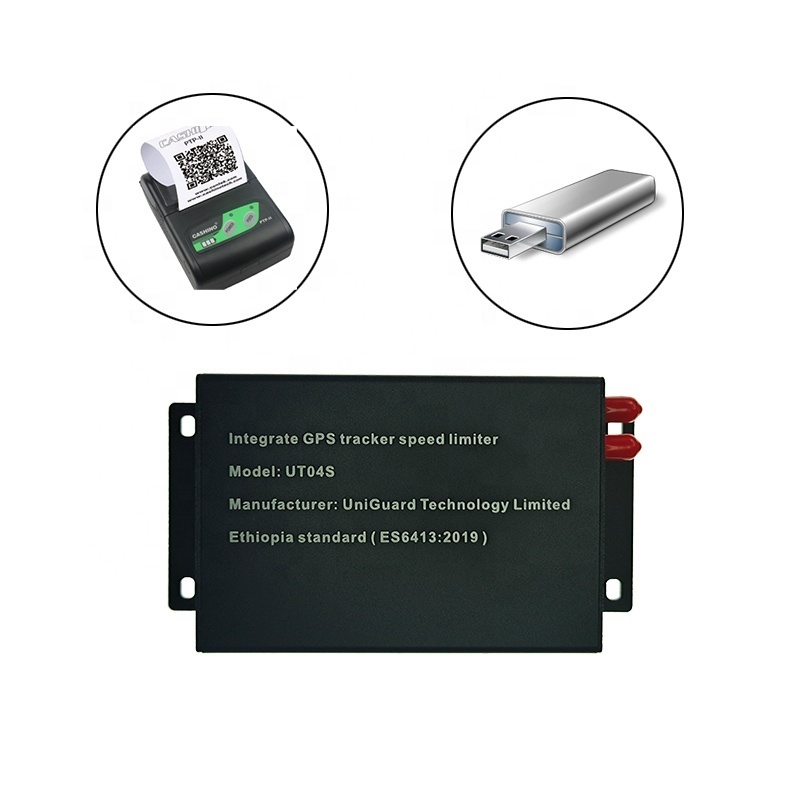

UT04 GPS Speed Limiter Features:

Kenya and Ethiopia Standard

Vehicle speed limit from 20KM/H to 120KM/H

Data storage for 7hrs and Print

Support config by computer through USB cable

Limp mode to limit speed at 40KM/H

Live Tracking by WEB, SMS and APP

Internal Backup Battery Lasting 5-8hrs

External Power cut Alarm (Anti-break function)

ACC Detection (Engine ON/OFF Checking)

Door status checking (Door Open/Close)

Fuel Monitoring with fuel sensor

UT04 GPS Speed Limiter Specs

Size	1377529mm	Working Voltage	DC:6.3~40V
Color	Black	Application	free android and IOS app
Input Fuse	5A	CPU	TI:MSP430F5419(100MHz)
Battery	Lithium battery :400mA( working time is about 3.5 hours)	Warranty	2 years
Item Name	Top selling shine	Function	camera gps fleet tracker
Working Temperature	Anna Shi	MOQ	5 Pieces
GSM Module	GSM Module:SIM5320 Band:850/900/1800/1900/2100MHz, Tally with: GSM phase 2/2+ -Class 4 (2W @ 850/900MHz) -Class 1 (1W @ 1800/1900MHz) Max RF Output: 33.0dBm±2dBm Dynamic Input Range: -15 ~ -102dBm Receiving delicacy: Class RBER≤2%(-102dBm) Frequency Stability: > 2.5ppm Max Frequency Deviation: ±0.1ppm RMS Deviation: ≤5deg	GPS Module	GPS chip set: SiRF Star III Frequency: L1, 1575.42 MHz Number of Channel: 20 Reacquisition: 0.1 sec, average Hot boot: 2 sec., average Warm boot: 38 sec., average Cold boot: 44 sec., average Altitude limit: 18000 m Velocity limit: 515 m/s
Current	Not working Current 16mA working Current:60~150mA Current of opening infrared of Camera at night :100~200mA Charging current: Max<500mA	Input I/O	8 I/O input/output Port 1 main power check 1 port use to check the engine ( ACC check) 1 port use to SOS 1 analog Input port( Fuel sensor) 1 Output port ( Car engine control ) 3 Extend ports ( Input/Output control by software)
