Name
:Slewing Steel
Steel structure,tough and strong.
wear-resistant and practical.Low-Profile
jib arm permits an efficiently large lifting height
- Product Details
- {{item.text}}
Quick Details
-
Rated Lifting Moment:
-
Capacity
-
Max. Lifting Height:
-
8m, Customizable
-
Span:
-
2-10m, Customizable
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Dingya Crane
-
Weight (KG):
-
2000 kg
-
Product name:
-
500kg Floor Mounted jib crane 3 ton
-
Lifting mechanism:
-
Wire Rope Electric Hoist
-
Keywords:
-
Small Jib Crane
-
Type:
-
BZ BZD Jib Crane
-
Control method:
-
Ground Control+ Remote Control (customized)
-
Power Source:
-
3 Phase 380V 50hz / Custmized
-
Hoisting mechanism:
-
Hoist Electric
-
Capacity:
-
3 ton Jib Crane
-
Usage:
-
LIft Cargos
-
Certification:
-
CE ISO
Quick Details
-
Marketing Type:
-
Hot Product 2024
-
Application:
-
widely
-
Rated Loading Capacity:
-
0.25-10 Ton
-
Rated Lifting Moment:
-
Capacity
-
Max. Lifting Height:
-
8m, Customizable
-
Span:
-
2-10m, Customizable
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Dingya Crane
-
Weight (KG):
-
2000 kg
-
Product name:
-
500kg Floor Mounted jib crane 3 ton
-
Lifting mechanism:
-
Wire Rope Electric Hoist
-
Keywords:
-
Small Jib Crane
-
Type:
-
BZ BZD Jib Crane
-
Control method:
-
Ground Control+ Remote Control (customized)
-
Power Source:
-
3 Phase 380V 50hz / Custmized
-
Hoisting mechanism:
-
Hoist Electric
-
Capacity:
-
3 ton Jib Crane
-
Usage:
-
LIft Cargos
-
Certification:
-
CE ISO
Products Description

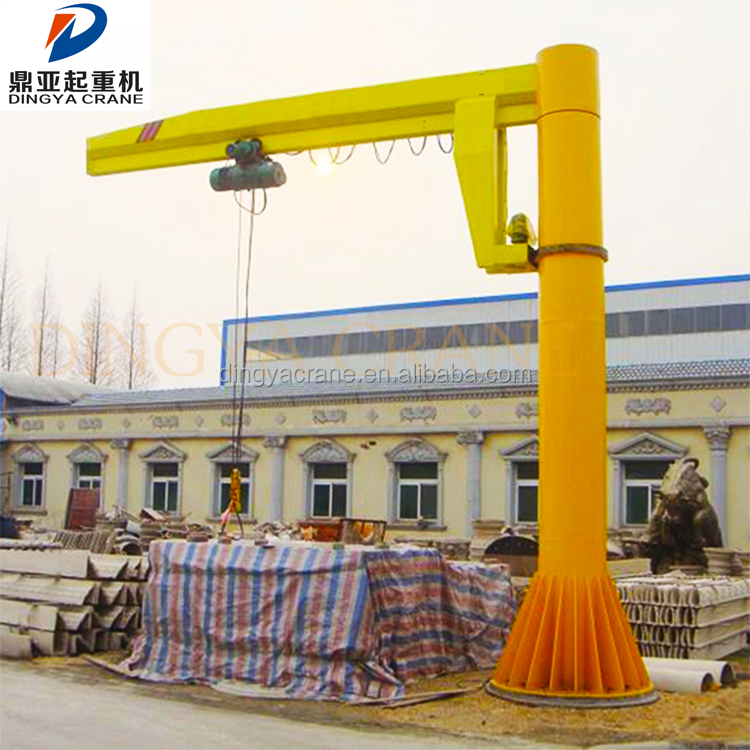

Jib crane Description
Jib Crane is a kind of light crane using with PK type electric chain hoist or CD, MD electric hoist. It consists of the column,
the rotating arm, the cantilever drive unit and hoists. The lower end of the column is fixed by anchor bolts in the concrete
foundation. The boom slewing is driven by motor driving the reducer. The hoist runs back and forth on the cantilever beam.
Jib Crane has advantages of simple structure, easy operation, small space using, large working range. It is widely used in lifting materials in production lines of machinery manufacturing, automotive making and shipbuilding. It is being used in warehouses, docks, laboratories and other occasions. It is a ideal lifting equipment for the enterprises to improve efficiency and working conditions.
Jib Cranes are light and intermediate working level, rated workload has 0.25t, 0.5t, 1t, 2t, 3t, 5t with total six specifications.
According to work specifications need the users can choose different types of cranes, lifting speed and running speed. The machine has two forms of manipulation: motor-driven rotation and manual rotation. The rotation angle of the rotating arm needs to be selected according to the use of premises such as 180 °, 270 °, 345 °, 360 °.
Jib Crane is a kind of light crane using with PK type electric chain hoist or CD, MD electric hoist. It consists of the column,
the rotating arm, the cantilever drive unit and hoists. The lower end of the column is fixed by anchor bolts in the concrete
foundation. The boom slewing is driven by motor driving the reducer. The hoist runs back and forth on the cantilever beam.
Jib Crane has advantages of simple structure, easy operation, small space using, large working range. It is widely used in lifting materials in production lines of machinery manufacturing, automotive making and shipbuilding. It is being used in warehouses, docks, laboratories and other occasions. It is a ideal lifting equipment for the enterprises to improve efficiency and working conditions.
Jib Cranes are light and intermediate working level, rated workload has 0.25t, 0.5t, 1t, 2t, 3t, 5t with total six specifications.
According to work specifications need the users can choose different types of cranes, lifting speed and running speed. The machine has two forms of manipulation: motor-driven rotation and manual rotation. The rotation angle of the rotating arm needs to be selected according to the use of premises such as 180 °, 270 °, 345 °, 360 °.
Product Detail
Name:
Pillar
Pillar made of steel pipe.Steel structure
tough and strong,wear-resistant and practical.
Name:
Cable
Trailing cable system running in C rail beside the jib
Name:
Motor
Better performance,stable frequency. durable for a long time.Easy to operate
|
Type
|
|
BZ0.25
|
BZ0.5
|
BZ1
|
BZ2
|
BZ3
|
BZ5
|
BZ8
|
BZ10
|
|||||||||
|
Lift Capacity (t)
|
|
0.25
|
0.5
|
1
|
2
|
3
|
5
|
8
|
10
|
|||||||||
|
Max. Lift Height(m)
|
|
3
|
3
|
3
|
3
|
4
|
4
|
6
|
8
|
|||||||||
|
Slew Angle(0)
|
|
360
|
360
|
360
|
360
|
360
|
360
|
360
|
360
|
|||||||||
|
Lift Speed (m/min)
|
Normal
|
4;10;8
|
5;10;8
|
8
|
8
|
8
|
8
|
8
|
8
|
|||||||||
|
|
Slow
|
1;2.5;0.8
|
1.25;2.5
|
0.8
|
0.8
|
0.8
|
0.8
|
0.8
|
0.8
|
|||||||||
|
Level Travel Speed (m/min)
|
|
20
|
20
|
20
|
20
|
20
|
20
|
20
|
20
|
|||||||||
|
Slewing Speed (r/min)
|
|
0.7
|
0.7
|
0.7
|
0.7
|
0.6
|
0.6
|
0.6
|
0.6
|
|||||||||
|
Lift mechanism
|
|
wire rope electric hoist or chain electric hoist
|
|
|
|
|
|
|
|
|||||||||
|
Power supply
|
|
220~6900V,50/60HZ,3phase or customized
|
|
|
|
|
|
|
|
|||||||||
|
Control mode
|
|
Pendent pushbutton control or remote control
|
|
|
|
|
|
|
|
|||||||||
|
Above parameter just for your reference,jib crane can be customized design Max.20t according to your demands
.
|
|
|
|
|
|
|
|
|
|
|||||||||
