Quick Details
-
Frequency:
-
433mhz
-
Wireless Communication:
-
RF
-
Support APP:
-
No
-
Use:
-
Universal,Lighting,Electric Door,Automated curtains,SWITCH
-
Channel:
-
6
-
Package:
-
Yes
Quick Details
-
Function:
-
Automatic
-
Brand Name:
-
SMG
-
Place of Origin:
-
Guangdong, China
-
Frequency:
-
433mhz
-
Wireless Communication:
-
RF
-
Support APP:
-
No
-
Use:
-
Universal,Lighting,Electric Door,Automated curtains,SWITCH
-
Channel:
-
6
-
Package:
-
Yes
Products Description

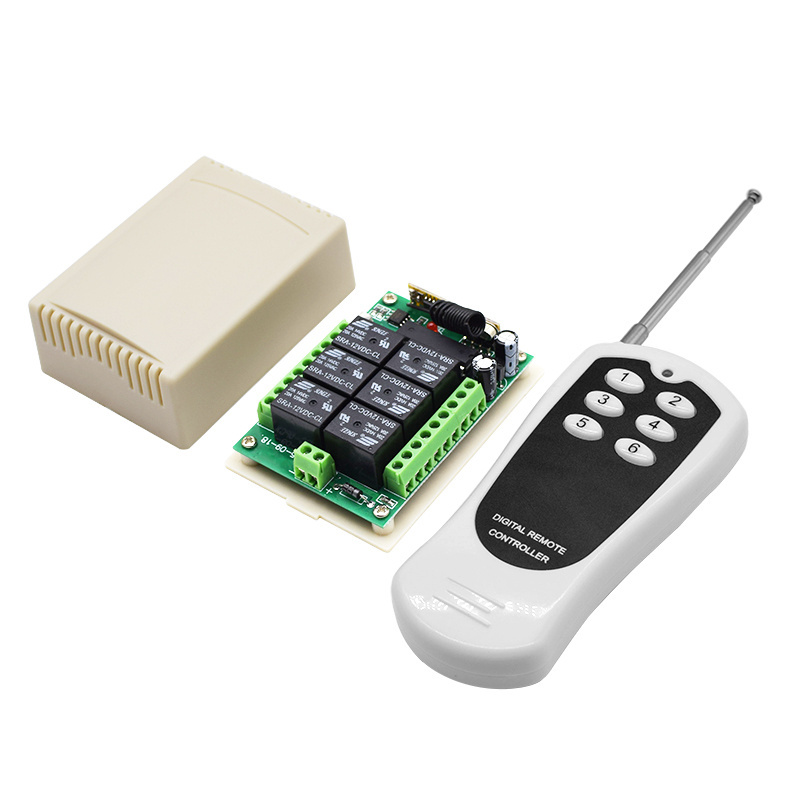

DC 12V 24V 6 Channel Universal Remote Relay Module Wireless Light Switch Receiver Control 433MHz with 6 Button RF Transmitter
Features:
Wireless control, easy to install.
Control Lights, Motors, Fans, electrically operated Doors/Locks/Windows/Blinds/Cars or Other Appliances with DC12V.
You can turn on/off the receiver with transmitter (remote control) from any place within a reliable distance; the wireless RF
signal can pass through walls, floors and doors.
This switch can learn different coding remote controls (such as 2262, 1527)
One/several transmitters can control one/several receivers simultaneously.
If you use two or more receivers in the same place, you can set them with different codes. If you use multi-button transmitter,
you can control the controller with different buttons, it won't affect each other.
Operating Frequency: 433MHz
The wireless receiving controller, with high confidentiality, stable performance, low power consumption characteristic, jump line
or dial the code switch coding.
About Receiver:
Channel: 6 CH
Radio Frequency: 433MHZ
Operating Voltage: DC12V
Operating Type:
Jog /Momentary/Non-Latched (Press and hold->On, Release->Off )
Interlock /Latched (Press -> On; Press other button -> Off )
Self-lock/Toggle (Press->On, Press again->Off)
Coding Type: Learning code
Maximum Working Current: 10A
Output Mode: Without voltage output (also called Contact output)
Step-down approach: resistance-capacitance (RC)
About Working way/ output Way:
Output Working way for learning code switch-Jog, Self-Lock, interlock, changed by soldering or jump cap.
Momentary/ Jog--Press and hold -> On; Release -> Off
Toggle/ Self-lock--Press -> On; Press again -> Off
Latched/ Interlock--Press -> On; Press other button -> Off
About Transmitter:
Buttons: 6 Buttons
Working Voltage: DC12V (battery not included)
Frequency:433MHz
Remote Control Distance: 50-200m
Encode: Fixed code by soldering and learning code
About Learning and cleaning Method:
Learning: Press the learning key, it means the controller putting in the learning state when the indicator goes ON, then please
press any buttons of the remote control to transmit signals, the indicator will flash for 3 times after 1 second, then recover to
normally OFF, which means successfully studied.
After pressing any buttons of the remote control to transmit signal, the indicator didn't flash, 10 seconds later it still
recovers to normally on, but it study unsuccessfully.
Cleaning: Hold press learning button about 8 seconds, indicator from ON to OFF, then press remote receiver did not work, it means
cleaning code successful.
A: Signal non-lock (jog): press the NO.1 button of the remote control to learn
B: Signal self-lock (self-lock): press the No.2 button to learn, each channel is independent of the others
C: Signal inter-lock: press the NO.3 button to learn
D: 1CH-3CH is jog, 4CH-6CH is self-lock press the NO.4button to learn
E: 1CH-3CH is jog, 4CH-6CH is inter-lock press the NO.5button to learn
F: 1CH-2CH is jog, 3CH-6CH is inter-lock press the NO.6 button to learn
Pay attention:
The default setting of output way is momentary, press is on, release is off. If you need other output way can leave a message to
change it for you before the delivery.
Here is 6 Channel switch and 6-button remote control. You can choose the working way as you need. We default is momentary.
Package included:
1 x Remote Control Switch
1 x Transmitter
Wireless control, easy to install.
Control Lights, Motors, Fans, electrically operated Doors/Locks/Windows/Blinds/Cars or Other Appliances with DC12V.
You can turn on/off the receiver with transmitter (remote control) from any place within a reliable distance; the wireless RF
signal can pass through walls, floors and doors.
This switch can learn different coding remote controls (such as 2262, 1527)
One/several transmitters can control one/several receivers simultaneously.
If you use two or more receivers in the same place, you can set them with different codes. If you use multi-button transmitter,
you can control the controller with different buttons, it won't affect each other.
Operating Frequency: 433MHz
The wireless receiving controller, with high confidentiality, stable performance, low power consumption characteristic, jump line
or dial the code switch coding.
About Receiver:
Channel: 6 CH
Radio Frequency: 433MHZ
Operating Voltage: DC12V
Operating Type:
Jog /Momentary/Non-Latched (Press and hold->On, Release->Off )
Interlock /Latched (Press -> On; Press other button -> Off )
Self-lock/Toggle (Press->On, Press again->Off)
Coding Type: Learning code
Maximum Working Current: 10A
Output Mode: Without voltage output (also called Contact output)
Step-down approach: resistance-capacitance (RC)
About Working way/ output Way:
Output Working way for learning code switch-Jog, Self-Lock, interlock, changed by soldering or jump cap.
Momentary/ Jog--Press and hold -> On; Release -> Off
Toggle/ Self-lock--Press -> On; Press again -> Off
Latched/ Interlock--Press -> On; Press other button -> Off
About Transmitter:
Buttons: 6 Buttons
Working Voltage: DC12V (battery not included)
Frequency:433MHz
Remote Control Distance: 50-200m
Encode: Fixed code by soldering and learning code
About Learning and cleaning Method:
Learning: Press the learning key, it means the controller putting in the learning state when the indicator goes ON, then please
press any buttons of the remote control to transmit signals, the indicator will flash for 3 times after 1 second, then recover to
normally OFF, which means successfully studied.
After pressing any buttons of the remote control to transmit signal, the indicator didn't flash, 10 seconds later it still
recovers to normally on, but it study unsuccessfully.
Cleaning: Hold press learning button about 8 seconds, indicator from ON to OFF, then press remote receiver did not work, it means
cleaning code successful.
A: Signal non-lock (jog): press the NO.1 button of the remote control to learn
B: Signal self-lock (self-lock): press the No.2 button to learn, each channel is independent of the others
C: Signal inter-lock: press the NO.3 button to learn
D: 1CH-3CH is jog, 4CH-6CH is self-lock press the NO.4button to learn
E: 1CH-3CH is jog, 4CH-6CH is inter-lock press the NO.5button to learn
F: 1CH-2CH is jog, 3CH-6CH is inter-lock press the NO.6 button to learn
Pay attention:
The default setting of output way is momentary, press is on, release is off. If you need other output way can leave a message to
change it for you before the delivery.
Here is 6 Channel switch and 6-button remote control. You can choose the working way as you need. We default is momentary.
Package included:
1 x Remote Control Switch
1 x Transmitter
