Quick Details
-
Use:
-
Agriculture
-
Production Capacity (kg/h):
-
3000 - 5000
-
Marketing Type:
-
New Product 2021
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Free spare parts
-
Capacity:
-
5T/H
-
Power(Kw):
-
1.55
-
Dimension (L*W*H):
-
2150*800*2400
-
Weight:
-
700
-
Raw material:
-
Carbon Steel
-
MOQ:
-
1set
-
Color:
-
White
-
Certification:
-
ISO9001-2008, TUV, SGS SONKAP
Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
RUIXUE
-
Type:
-
Electric
-
Use:
-
Agriculture
-
Production Capacity (kg/h):
-
3000 - 5000
-
Marketing Type:
-
New Product 2021
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Free spare parts
-
Capacity:
-
5T/H
-
Power(Kw):
-
1.55
-
Dimension (L*W*H):
-
2150*800*2400
-
Weight:
-
700
-
Raw material:
-
Carbon Steel
-
MOQ:
-
1set
-
Color:
-
White
-
Certification:
-
ISO9001-2008, TUV, SGS SONKAP

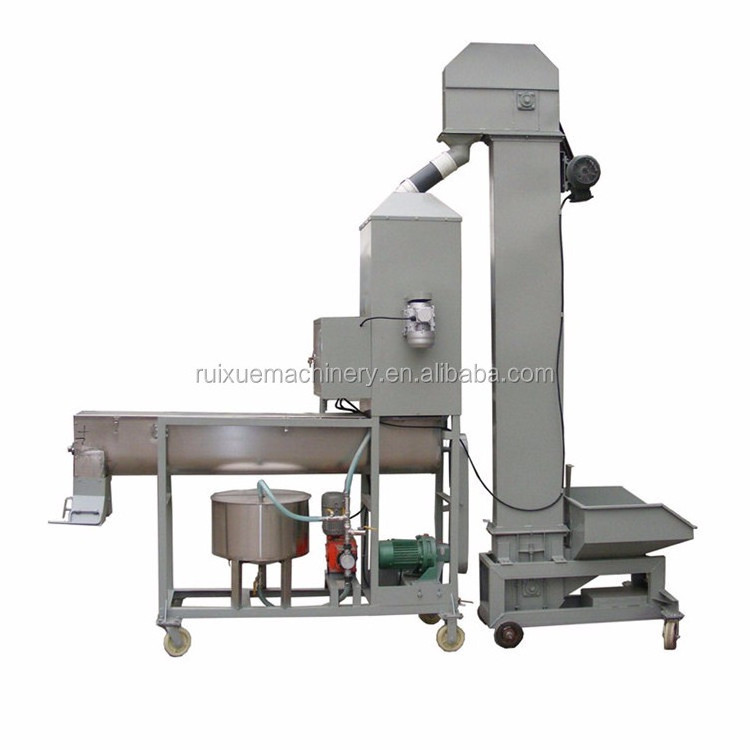

Seed coating machine
1.0 Introduction of Seed coating machine
The
Seed coating machine 5by-5b is the main machine for seed processing, the machine
For coating seed of various crops, such as seed of wheat, barley, maize, sorghum, soybeans, cotton,
Vegetables, fruits and so on.
Seed coating machine 5by-5b has the optimal design, and is very famous in Chinese market. It has many advanced designs such
As use the high-speed centrifugal rotational disk for atomization of seed coating medicine, and use the
Soft auger for mixing. It has many advantages such as compact size, easy for operation, low failure,
Reliable, easy to clean-up, no gas release and accurate coating medicine injection, make uniform film
Of coating medicine and using widely
2.0 Working principle of Seed coating machine 5by-5b
The seeds go into the mixed box through the elevator, the seeds will evenly spread around by the
Cone-shaped grain scattering gear, in the scattering process, the medicament will deliver to the
Centrifugal rotational disk (which in the mixed box) by the measuring pump, under the high-speed
Centrifugal force, medicament will be atomized uniformly and effectively attached to the seed surface,
Forming an primary coated body, and then the primary coated body go into the blender, that will be
Mixed round and coated by soft auger, finally exit from the outlet.
| Model | Capacity(T/H) | Power(KW) | Weight(KG) | Dimension | Agent Supply Mde |
| 5BY-2 | 2 | 1.65 | 200 | 1600*800*1500 | Spoon |
| 5BY-5A | 5 | 4.5 | 800 | 2200*900*2500 | Spoon |
| 5BY-5B | 5 | 2.3 | 700 | 2150*800*2400 | Dosing Pump |
