Quick Details
-
Welding Mode:
-
seam welding
-
Welding Diameter:
-
80mm-100mm
-
Dimensions:
-
ajustable
-
Use:
-
seam welding
-
Voltage:
-
380V, 380V
-
Weight (KG):
-
300 KG
-
Power (kW):
-
/
-
product name:
-
Automatic Rolling Seam Welding Machine
-
Application:
-
seam welding
-
Reled capacity:
-
50KVA-200KVA
-
Certification:
-
ISO CE, ISO CE CCC
-
Welding speed:
-
0.6-2M/min
-
Weight:
-
≥368kg
-
Power(W):
-
50KVA-200KVA
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support, Video technical support
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
TRINTFAR
-
Forming Time:
-
/
-
Welding Mode:
-
seam welding
-
Welding Diameter:
-
80mm-100mm
-
Dimensions:
-
ajustable
-
Use:
-
seam welding
-
Voltage:
-
380V, 380V
-
Weight (KG):
-
300 KG
-
Power (kW):
-
/
-
product name:
-
Automatic Rolling Seam Welding Machine
-
Application:
-
seam welding
-
Reled capacity:
-
50KVA-200KVA
-
Certification:
-
ISO CE, ISO CE CCC
-
Welding speed:
-
0.6-2M/min
-
Weight:
-
≥368kg
-
Power(W):
-
50KVA-200KVA
-
After Warranty Service:
-
Video technical support, Online support, Spare parts, Field maintenance and repair service
-
Local Service Location:
-
None
-
After-sales Service Provided:
-
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support, Video technical support

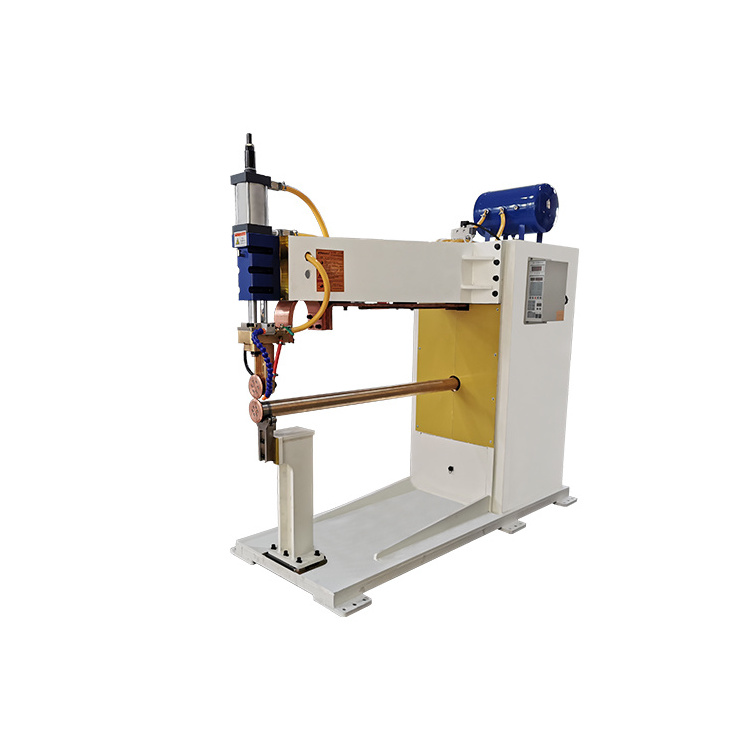

FN SERIES AC ROLLING SEAM WELDING MACHINE
Feature
- 3phase regulator controls the welding speed uniformly and without jerks.
- Longitudinal and horizontal welding make it possible for various jobs and working conditions.
- Robust structure capable to withstand heat and maintain welding performance.
- The rotation conductance or silver axis tile provides excellent contact and reduces electrical energy loss.
- Widely used in Household appliances,auto,and other metal working industries.
|
Item
|
Reled capacity |
Rated Primary voltage |
Rated frequency |
Maximum short current |
Electrode stroke |
Welding speed |
Electrode pressure |
Motor power resource |
Cooling water flow |
Weight |
|
|
KVA |
V |
Hz |
A |
mm |
M/min |
N |
V |
M/min |
Kg |
||
|
FN-50 |
50 |
380 |
50/60 |
13000 |
80 |
0.6-2 |
4700 |
3-380V |
30 |
368 |
|
|
FN-75 |
75 |
380 |
50/60 |
16000 |
80 |
0.6-2 |
6280 |
3-380V |
30 |
520 |
|
|
FN -100 |
100 |
380 |
50/60 |
18000 |
80 |
0.6-2 |
6280 |
3-380V |
30 |
880 |
|
|
FN-150 |
150 |
380 |
50/60 |
23000 |
100 |
0.6-2 |
12000 |
3-380V |
30 |
- |
|
|
FN -200 |
200 |
380 |
50/60 |
26000 |
100 |
0.6-2 |
12000 |
3-380V |
30 |
- |
Appication
Widely used in Household appliances,auto,and other metal working industries.
