Quick Details
-
Product Name:
-
hydraulic winch
-
CERTIFICATE:
-
CCS ABS LR BV GL NK DNV KR RINA
-
Motor:
-
Hydraulic Motor
-
Brake:
-
Disk Brake
-
Usage:
-
Construction Hoist
-
Structure:
-
Compact Desgin
Quick Details
-
Power Source:
-
Hydraulic
-
Application:
-
CRANES
-
Capacity:
-
10KN~1000KN
-
Product Name:
-
hydraulic winch
-
CERTIFICATE:
-
CCS ABS LR BV GL NK DNV KR RINA
-
Motor:
-
Hydraulic Motor
-
Brake:
-
Disk Brake
-
Usage:
-
Construction Hoist
-
Structure:
-
Compact Desgin

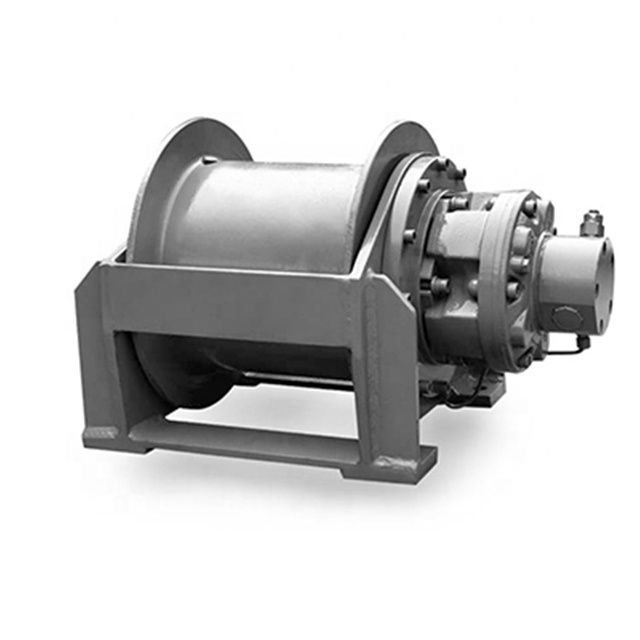

GMW series hydraulic winch is composed with all sorts of distributors that consist of one-way balance valve, control brake, high pressure shuttle valve, GM type hydraulic motor, Z type brake, C type gearbox, and drum. Users only configure hydraulic power unit and change valve. As the winch has valve sets, its not only simplified the hydraulic system, but also enhances the working reliability of the transmission drives.
It can be applied in traction equipment, pedrail and automobile crane, pipe hoist machine, grab bucket, drilling machine, construction and marine industry.
|
Model |
First layer |
Motor power (KW) |
Total disp. (ml/r) |
Differentia of working pressure (MPa) |
Rope dia. (mm) |
Rope capacity (M) |
Model of hydraulic motor |
Model of planetary gearbox |
Weight
(KG) |
|
|
Pulling force (kN) |
Rope speed (M/min) |
|||||||||
|
GMW2.5-10-60-10-ZP |
10 |
0-25 |
20 |
575 |
15 |
10 |
60 |
GM05-110D51 |
C2.5-5 |
120 |
|
GMW2.5-20-50-12-ZP |
20 |
0-25 |
20 |
1050 |
17 |
12 |
50 |
GM05-200D51 |
C2.5-5 |
120 |
|
GMW3-30-65-15-ZP |
30 |
0-30 |
59 |
2125 |
15.9 |
15 |
65 |
GM2-420D51 |
C3-5 |
300 |
|
GMW3-40-60-16-ZP |
40 |
0-30 |
59 |
2712 |
16.4 |
16 |
60 |
GM2-500D51 |
C3-5.5 |
300 |
|
GMW4-50-70-20-ZP |
50 |
0-35 |
80 |
4365 |
16.3 |
20 |
70 |
GM3-900D240101 |
C4-5 |
550 |
|
GMW4-60-68-21.5-ZP |
60 |
0-35 |
80 |
5429 |
16 |
21.5 |
68 |
GM3-900D240101 |
C4-5.5 |
550 |
|
GMW5-80-100-24-ZP |
80 |
0-35 |
120 |
9080 |
15.6 |
24 |
100 |
GM5-1800D240101 |
C5-5 |
1200 |
|
GMW5-100-90-28-ZP |
100 |
0-35 |
120 |
11039 |
16 |
28 |
90 |
GM5-1800D240101 |
C5-5.5 |
1200 |
|
GMW6-120-170-30-ZP |
120 |
0-25 |
170 |
16725 |
17 |
30 |
175 |
GM6-3000D480101 |
C6-5.5 |
2300 |
|
GMW6-150-150-34-ZP |
150 |
0-20 |
170 |
16725 |
19.8 |
34 |
150 |
GM6-3000D480101 |
C6-5.5 |
2300 |
|
GMW7-180-143-38-ZP |
180 |
0-25 |
210 |
23639 |
17.8 |
38 |
143 |
GM7-4300D480101 |
C7-5.5 |
2800 |
