Quick Details
-
Grinding Length(mm):
-
2000
-
Max. Weight of Workpiece(kg):
-
150
-
Center Height (mm):
-
180
-
Wheel Size(mm):
-
Dia.400x50xdia.203
-
Wheel Speed (rpm):
-
300
-
Roundness(mm):
-
0.0015
-
Cylindricity (mm):
-
0.008
-
Place of Origin:
-
China
-
Brand Name:
-
LFM
-
Voltage:
-
Customer's Requirement
-
Dimension(L*W*H):
-
5880x1810x1665 mm
-
Weight (KG):
-
8900
-
Power (kW):
-
5.5
-
After-sales Service Provided:
-
Online support,Free spare parts,Video technical support
-
Machine Type:
-
CNC & Cylindrical grinder machine
-
Color:
-
Factory Standard or Customized OPT.
-
Certification:
-
CE,ISO9001,GB/T 19001:2008
-
Max. Workpiece Weight:
-
150kg
-
Outside diameter grinding:
-
320mm
-
Grinding wheel motor power:
-
5.5kW
Quick Details
-
Grinding Diameter(Outer)(mm):
-
320
-
Max. Length of Workpiece (mm):
-
2000
-
Surface Roughness(μm):
-
0.32
-
Grinding Length(mm):
-
2000
-
Max. Weight of Workpiece(kg):
-
150
-
Center Height (mm):
-
180
-
Wheel Size(mm):
-
Dia.400x50xdia.203
-
Wheel Speed (rpm):
-
300
-
Roundness(mm):
-
0.0015
-
Cylindricity (mm):
-
0.008
-
Place of Origin:
-
China
-
Brand Name:
-
LFM
-
Voltage:
-
Customer's Requirement
-
Dimension(L*W*H):
-
5880x1810x1665 mm
-
Weight (KG):
-
8900
-
Power (kW):
-
5.5
-
After-sales Service Provided:
-
Online support,Free spare parts,Video technical support
-
Machine Type:
-
CNC & Cylindrical grinder machine
-
Color:
-
Factory Standard or Customized OPT.
-
Certification:
-
CE,ISO9001,GB/T 19001:2008
-
Max. Workpiece Weight:
-
150kg
-
Outside diameter grinding:
-
320mm
-
Grinding wheel motor power:
-
5.5kW

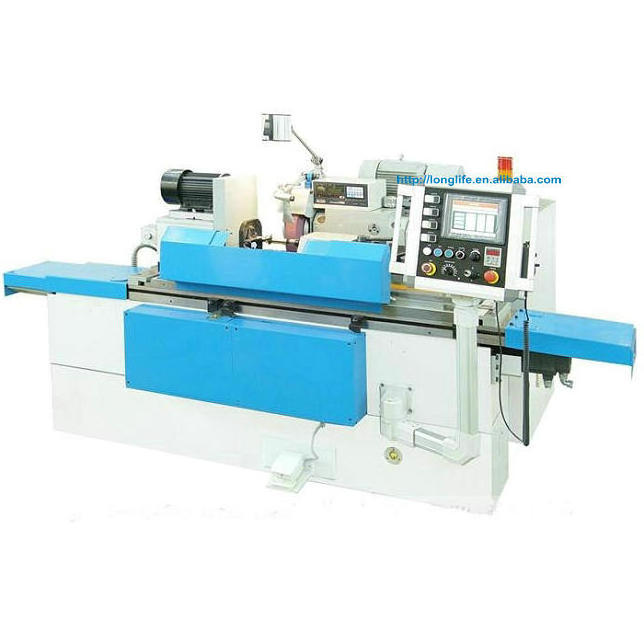

MKA1332x2000 CNC Cylindrical Grinder/CNC Cylindrical Grinding Machine
Such cnc rectificadora cilindrica/cnc cylindrical grinder has following features:
Economic automatic type, but with mature structure and steady performance
High precision, high rigidity and high stability
CNC controller is easy to operate.
Suitable for many fields such as motor, hydraulic, automobiles, for external grinding of shaft parts in large quantity.
* As we are constantly working to improve our products, we reserve the right to update this information data. It is subject to change without notice.
|
Item |
Unit |
parameter |
|
Unidirectional repeatability of positioning X-axis |
mm |
0.006 |
|
Unidirectional repeatability of positioning Z-axis |
mm |
0.013 |
|
Roundness |
mm |
0.0015 |
|
Consistency of diameter of longitudinal section |
mm |
0.006/0.008 |
|
Consistency of diameter of 20 workpieces (without gage) |
mm |
0.02 |
|
Consistency of diameter of 20 workpieces (with gage) |
mm |
0.01 |
|
Surface roughness(feed-in grinding) |
μm |
Ra 0.63 |
|
Surface roughness(longitudinal grinding) |
μm |
Ra 0.32 |
|
Specifications |
Unit |
Parameter |
|
Outside diameter grinding No Center Frame |
mm |
Min/Max: Dia.8 / 320 |
|
Max. Workpiece Weight |
kg |
150 |
|
Max. Grinding Length |
mm |
2000 |
|
Distance between centers |
mm |
2000 |
|
Height of center |
mm |
180 |
|
Wheelhead size |
mm |
Dia.400x50xdia.203 |
|
workhead |
|
Fixed spindle Rotation spindle(optional) |
|
3-jaw chuck Chuck(should use the rotation spindle) |
mm |
200 |
|
4-jaw chuck (should use the rotation spindle) |
mm |
160 |
|
Workhead center |
|
MT-5 |
|
Tailstock center |
|
MT-4 |
|
Manual tailstock sleeve travel |
mm |
30 |
|
Workhead rotating speed (stepless speed control based on Converter) |
rpm |
30~300 |
|
Wheel peripheral velocity |
m/s |
35(hydrodynamic bearing) |
|
Wheel peripheral velocity |
m/s |
Optional 35/45(Hydro-hybrid bearing) |
|
Max. swing angle of upper table(clockwise) |
° |
3 |
|
Max. swing angle of upper table(counter-clockwise) |
° |
5 |
|
Grinding wheel motor power |
kW |
5.5 |
|
Net weight |
kg |
8900 |
|
Machine Size |
mm |
5880x1810x1665 |
Pls send inquiry to me for optioanl accessories and other further information about cnc rectificadora cilindrica/cnc cylindrical grinder.
