Quick Details
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
Ashining
-
Supplier Type:
-
Manufacturer
-
Brand:
-
Ashining
-
Product name:
-
AS14-TTL
-
Weight:
-
25g
-
Warranty:
-
1 year
-
Antenna:
-
50Ω
-
Dimension:
-
20*36mm
-
Frequency:
-
2.4-2.525GHz
-
Transmitting Power:
-
20dBm
-
Function:
-
Wireless data transmission
-
Certification:
-
CE ISO9001RoHS
Quick Details
-
Chipset:
-
nRF24L01P
-
Application:
-
Industrial IOT
-
Model Number:
-
AS14-TTL
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
Ashining
-
Supplier Type:
-
Manufacturer
-
Brand:
-
Ashining
-
Product name:
-
AS14-TTL
-
Weight:
-
25g
-
Warranty:
-
1 year
-
Antenna:
-
50Ω
-
Dimension:
-
20*36mm
-
Frequency:
-
2.4-2.525GHz
-
Transmitting Power:
-
20dBm
-
Function:
-
Wireless data transmission
-
Certification:
-
CE ISO9001RoHS
Product Description
High speed nRF24L01 PA LNA 2.4ghz wireless audio transmitter module track detection device uart lora module
Ⓐ

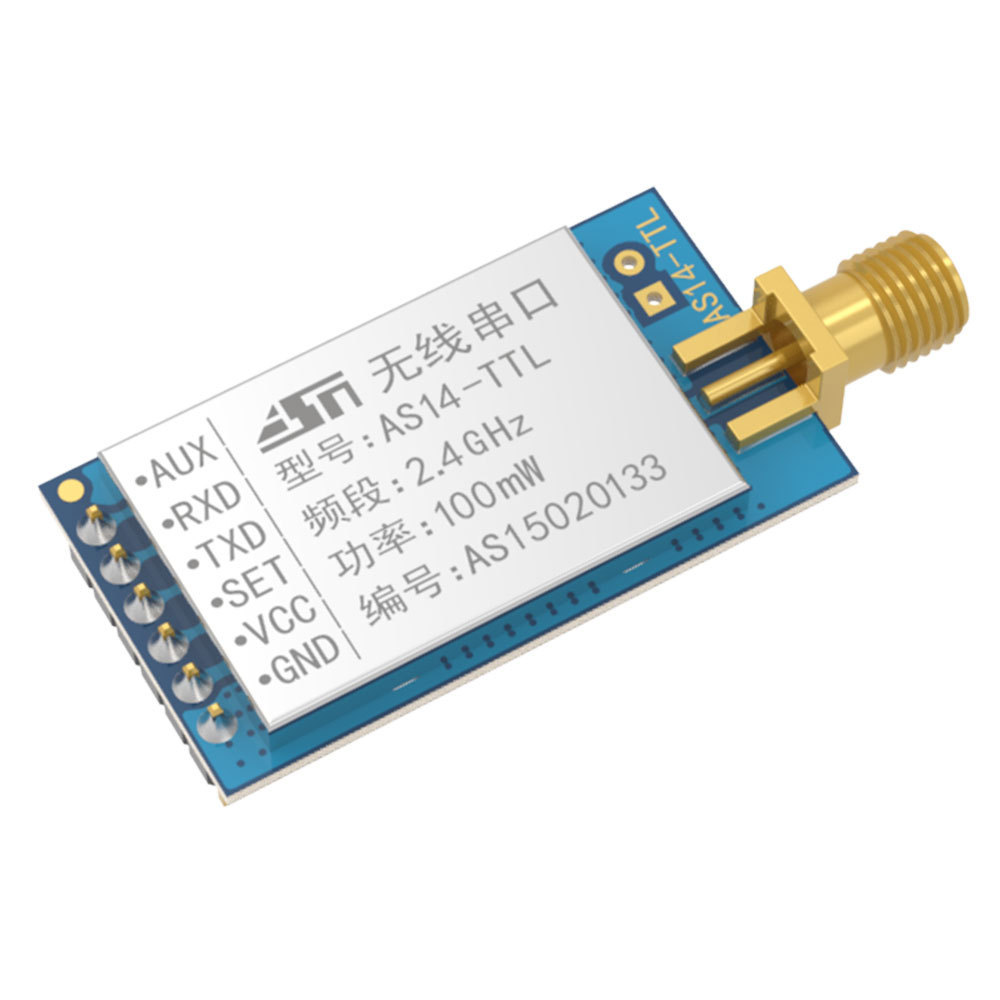

AS14-TTL is a frequency of 2.405~2.525GHz, with high stability, industrial-grade wireless data transmission module.
Ⓑ It is designed and developed by the radio frequency chip nRF24L01P, with small module size, high sensitivity, long transmission distance and high communication rate.
Ⓒ The function of automatic completion of communication protocol conversion and data sending and receiving control can be realized internally.
Ⓓ The module has 2 working modes and can be switched freely at runtime.
Ⓑ It is designed and developed by the radio frequency chip nRF24L01P, with small module size, high sensitivity, long transmission distance and high communication rate.
Ⓒ The function of automatic completion of communication protocol conversion and data sending and receiving control can be realized internally.
Ⓓ The module has 2 working modes and can be switched freely at runtime.
Electronical Parameters
|
NO.
|
Item
|
Value
|
Description
|
|
1
|
Product Size
|
20*36mm
|
Without antenna
|
|
2
|
Product Weight
|
25g
|
Without antenna
|
|
3
|
Package Form
|
DIP
|
Standard
|
|
4
|
Transmit Power
|
20dBm
|
100mW
|
|
5
|
Working Frequency
|
2.4-2.525GHz
|
2.4G as factory default
|
|
6
|
Transmitting Range
|
2 km
|
Receive sensitivity up to -130dBm
|
|
7
|
Baud Rate
|
1200bps~115200bps
|
9.6kbps as factory default
|
|
8
|
Working Mode
|
2
|
Standard
|
|
9
|
Working Temperature
|
-40℃~+85℃
|
Meet the needs of industrial use
|
|
10
|
Antenna Type
|
SMA-K
|
Standard 50Ω characteristic impedance
|
Products Features
Application
AS14-TTL
owns 2 working states, which can be switched freely at runtime. In the power-saving working state, the current consumption is extremely low, which is very suitable for ultra-low power IoT applications.
It can be widely used in the following scenarios:
●
Security alarm
●
Automobile detection instrument
●
Environment monitoring management system
●
LED screen control
●
Warning fog lights on the highway
●
Explosion-proof video surveillance etc
Customer Review
Packing & Delivery
1. 500 Pcs/carton, Net Weight: 10kg.
2. Customized package is available.
3. We provide multiple shipping methods: FedEx,DHL,UPS,TNT etc are available.
2. Customized package is available.
3. We provide multiple shipping methods: FedEx,DHL,UPS,TNT etc are available.
4.
Paypal/Credit card/ L/C and T/T are all acceptable.
