High Accuracy Dual Axis Inclinometer Tilt Angle inclination Sensor for Solar Tracking System
High Accuracy Dual Axis Inclinometer Tilt Angle inclination Sensor for Solar Tracking System
High Accuracy Dual Axis Inclinometer Tilt Angle inclination Sensor for Solar Tracking System
High Accuracy Dual Axis Inclinometer Tilt Angle inclination Sensor for Solar Tracking System
High Accuracy Dual Axis Inclinometer Tilt Angle inclination Sensor for Solar Tracking System
High Accuracy Dual Axis Inclinometer Tilt Angle inclination Sensor for Solar Tracking System
High Accuracy Dual Axis Inclinometer Tilt Angle inclination Sensor for Solar Tracking System
High Accuracy Dual Axis Inclinometer Tilt Angle inclination Sensor for Solar Tracking System

High Accuracy Dual Axis Inclinometer Tilt Angle inclination Sensor for Solar Tracking System

FOB Reference Price: Get Latest Price
≥2 Pieces
US $21.8
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Model Number:
RS-DIP-N01-1
Place of Origin:
Shandong, China
Brand Name:
Renke
Theory:
Dual Axis Angle
Output:
RS485, RS485
Brand:
Dual Axis Angle Inclination Sensor
Product name:
High Accuracy Dual Axis Inclinometer Tilt Angle inclination Sensor
Power supply:
DC 5-30V
Measuring range:
X,Z axis: -180°~180° Y axis: -90°~90°
Resolution:
0.01°
Response time:
<1S
Operating temperature:
-40℃-60℃, 0-95%RH (non-condensing)
Ingress Protection:
IP65
Temperature drift:
±(0.5°~1°), (-40°C ~ +60°C)
Certificate:
CE, ISO9001

Quick Details

Usage:
Inclination Sensor
Mounting Type:
tilt sensor
Description:
tilt sensor
Model Number:
RS-DIP-N01-1
Place of Origin:
Shandong, China
Brand Name:
Renke
Theory:
Dual Axis Angle
Output:
RS485, RS485
Brand:
Dual Axis Angle Inclination Sensor
Product name:
High Accuracy Dual Axis Inclinometer Tilt Angle inclination Sensor
Power supply:
DC 5-30V
Measuring range:
X,Z axis: -180°~180° Y axis: -90°~90°
Resolution:
0.01°
Response time:
<1S
Operating temperature:
-40℃-60℃, 0-95%RH (non-condensing)
Ingress Protection:
IP65
Temperature drift:
±(0.5°~1°), (-40°C ~ +60°C)
Certificate:
CE, ISO9001
High Accuracy Dual Axis Inclinometer Tilt Angle inclination Sensor for Solar Tracking System
Product Description

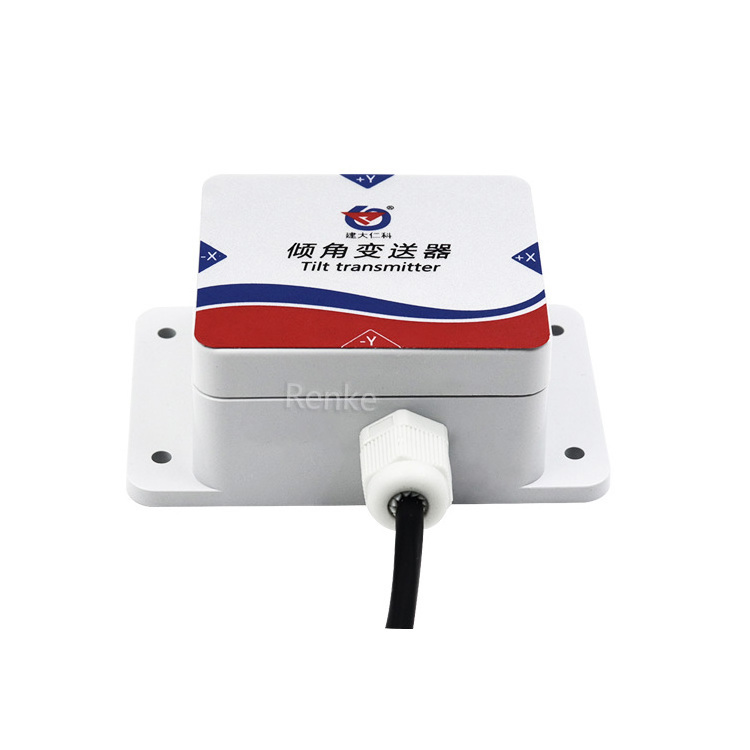

RS-DIP-N01-1 Inclinometer Sensor is a standard industrial dual-axis inclinometer. It can judge the inclination state of the equipment by detecting the inclination angle in the use environment. It can be used outdoors for a long time.
It has a dual-channel gravitational tilt unit, which converts the static gravitational acceleration into the tilt change, so that the tilt and pitch angle of the sensor relative to the horizontal plane can be measured.
Power supply
DC 5-30V
Maximum power consumption
≤0.15W
Operating temperature
-40℃—60℃, 0—95%RH (non-condensing)
Range
X axis: -180°~180° , Y axis: -90°~90°, Z axis: -180°~180°
Resolution
0.01°
Precision
X, Y axis: static accuracy ±0.1°, dynamic accuracy ±0.5°, Z axis: static accuracy ±0.5°, dynamic integral error
Response time
<1S
Protection level
IP65
Default cable length
60cm, cable length can be customized according to requirements
Output signal
RS485 (Modbus protocol)
The default installation direction of the sensor is horizontal installation. When the module needs to be placed vertically, it can be installed vertically. Vertical installation method: When installing vertically, place the module vertically by rotating 90° around the X axis, and select “vertical” in the “installation direction” option in the configuration bar of the host computer. After the setting is completed, calibration is required before it can be used. When installed vertically, the X axis is horizontal to the left, and the Y axis is perpendicular to the wall and inward.
Details Images
1. The Kalman filter algorithm is used to make the angle value collected by the device accurate and stable. 2. It has a wide angle measurement range, and the output signal has good linearity, which can be used in most environments. 3. Using dedicated 485 circuit, standard ModBus-RTU communication protocol, communication address and baud rate can be set. 4. 5~30V DC wide voltage range power supply. 5. It has the characteristics of wide measuring range, good linearity, easy to use, easy to install, and long transmission distance.
Installation method
Output Method
Related Products
Company Introduction
Shandong Renke Control Technology Co.,Ltd.is a leading environmental monitoring high technology enterprise in China. Renke is engaged in industrial sensor, communication gateway, industrial data platform, cloud computing service,and measurement control technology solution. We have won good reputation for high quality products and sincere service. Renke insists on the policy that"technology first, exquisite design, customer satisfied" we are careful with every detail. Every drawing has to be considered and revised repeatedly. Every products is the thought of designer.
FAQ
Q: Are you manufacturer?
A: Yes, We are Tranmitter manufacturer and exporter in china over 10 years experience with CE, ROHS, FCC, ISO and 11patents.

Q: Do you offer the OEM service?
A: Yes, we can offer OEM service and design the shell and logo for you.

Q: Do you offer free samples?
A: Sorry , we do not offer free samples. After you bulk order, we will deduct the sample fee from second order.

Q: What payment ways do you accept?
A: You can pay us by T/T , PayPal , and West Union .

Q: What is your delivery time?
A: It is in 3-5 working days since the payment confirmed. If your order is over 3000pcs, we need 10 days.

Q: How is your quality assurance service?
A: 24 months quality guarantee.

Q: Could we make a visit to your factory?
A: Yes, you are welcomed .
