Quick Details
-
Brand Name:
-
CO-NET
-
Product name:
-
CWDM
-
Connector type:
-
SC LC FC
-
Use:
-
FTTH
-
Operating Wavelength:
-
1260~1620 or 1460~1620
-
Channel Center Wavelength:
-
CWDM ITU-T
-
Channel Space:
-
20
-
Pigtail Type:
-
0.9 loose tube or Client Specify
-
connector Type:
-
Client Specify
-
Fiber Type:
-
SMF-28e or Client Specify
-
Fiber length:
-
≥1.0 or Client Specify
Quick Details
-
Type:
-
CWDM
-
Model Number:
-
CWDM
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
CO-NET
-
Product name:
-
CWDM
-
Connector type:
-
SC LC FC
-
Use:
-
FTTH
-
Operating Wavelength:
-
1260~1620 or 1460~1620
-
Channel Center Wavelength:
-
CWDM ITU-T
-
Channel Space:
-
20
-
Pigtail Type:
-
0.9 loose tube or Client Specify
-
connector Type:
-
Client Specify
-
Fiber Type:
-
SMF-28e or Client Specify
-
Fiber length:
-
≥1.0 or Client Specify
Product Description

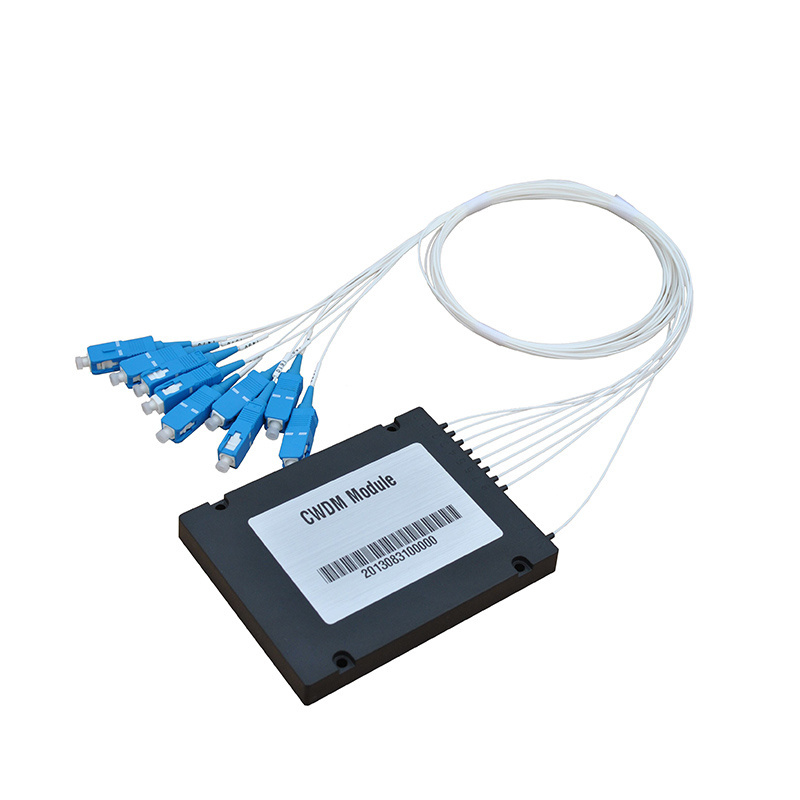

CWDM
Product Parameter
|
Parameter
|
|
Unit
|
DEMUX
|
|
|
MUX
|
|
|
||||||
|
Operating Wavelength
|
|
nm
|
1260~1620 or 1460~1620
|
|
|
|
|
|
||||||
|
Channel Center Wavelength
|
|
nm
|
CWDM ITU-T
|
|
|
|
|
|
||||||
|
Channel Space
|
|
nm
|
20
|
|
|
|
|
|
||||||
|
Channel Count
|
|
|
1×2
|
1×4
|
1×8
|
|
1×16
|
1×N
|
||||||
|
Insertion Loss
|
Max
|
dB
|
1.2
|
1.5
|
2.5
|
|
4.5
|
N=0.28×(N-1)+0.5
|
||||||
|
Channel Passband
|
Min
|
nm
|
±6.5
|
|
|
|
|
|
||||||
|
Isolation (Adjacent channel)
|
Min
|
dB
|
30
|
|
|
|
|
|
||||||
|
Isolation (Non-adjacent channel)
|
Min
|
dB
|
40
|
|
|
|
|
|
||||||
|
Passband Ripple
|
Max
|
dB
|
0.3
|
|
|
|
|
|
||||||
|
Polarization Dependent Loss
|
Max
|
dB
|
0.1
|
|
|
|
|
|
||||||
|
Temperature Dependent Loss
|
Max
|
dB/°C
|
0.005
|
|
|
|
|
|
||||||
|
Directivity
|
Min
|
dB
|
50
|
|
|
|
|
|
||||||
|
Return Loss
|
Min
|
dB
|
45
|
|
|
|
|
|
||||||
|
Polarization Mode Dispersion
|
Max
|
ps
|
0.1
|
|
|
|
|
|
||||||
|
Power Handling
|
Max
|
mW
|
300
|
|
|
|
|
|
||||||
|
Pigtail Type
|
|
mm
|
0.9 loose tube or Client Specify
|
|
|
|
|
|
||||||
|
Connector Type
|
|
--
|
Client Specify
|
|
|
|
|
|
||||||
|
Fiber Type
|
|
--
|
SMF-28e or Client Specify
|
|
|
|
|
|
||||||
|
Fiber length
|
|
m
|
≥1.0 or Client Specify
|
|
|
|
|
|
||||||
|
Operating Temperature
|
|
°C
|
-20 ~ 70
|
|
|
|
|
|
||||||
|
Storage Temperature
|
|
°C
|
-40 ~ 85
|
|
|
|
|
|
||||||
|
Package Dimension
|
|
mm
|
100×80×10 or Client Specify
|
|
|
|
|
|
||||||
Note: 1. All Parameters Are For Device Without Connectors.
2. Special Specifications Can Be Customized According To Customer Requirements.
Structure Chart
Dimensions(mm)
Steel type
80×60×12
100×80×10
120×80×18
141×115×18
Module type
LGX BOX
Rack-mounted
Related Products
Packing information
Our Company
Certifications
FAQ
|
Q1. May I have a sample for evaluation?
|
|
A1: Yes, we're pleased to offer samples for evaluation.Free samples can be offered if you prepay the freight cost.
|
|
Q2. What's the lead time?
|
|
A2: 1 week for Sample and 2-4 weeks for mass production.
|
|
Q3. How do you ship the goods and how long will it take to arrive?
|
|
A3: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 7-10 days to be received by customers.
|
|
Q4: Do you offer guarantee for the products?
|
|
A4: Yes, we offer more than 5 years warranty to our products.
|
