Quick Details
-
Dimension(L*W*H):
-
1400*600*1900
-
Weight (KG):
-
900
-
Power (kW):
-
6.4
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
WG
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
1400*600*1900
-
Weight (KG):
-
900
-
Power (kW):
-
6.4
Products Description

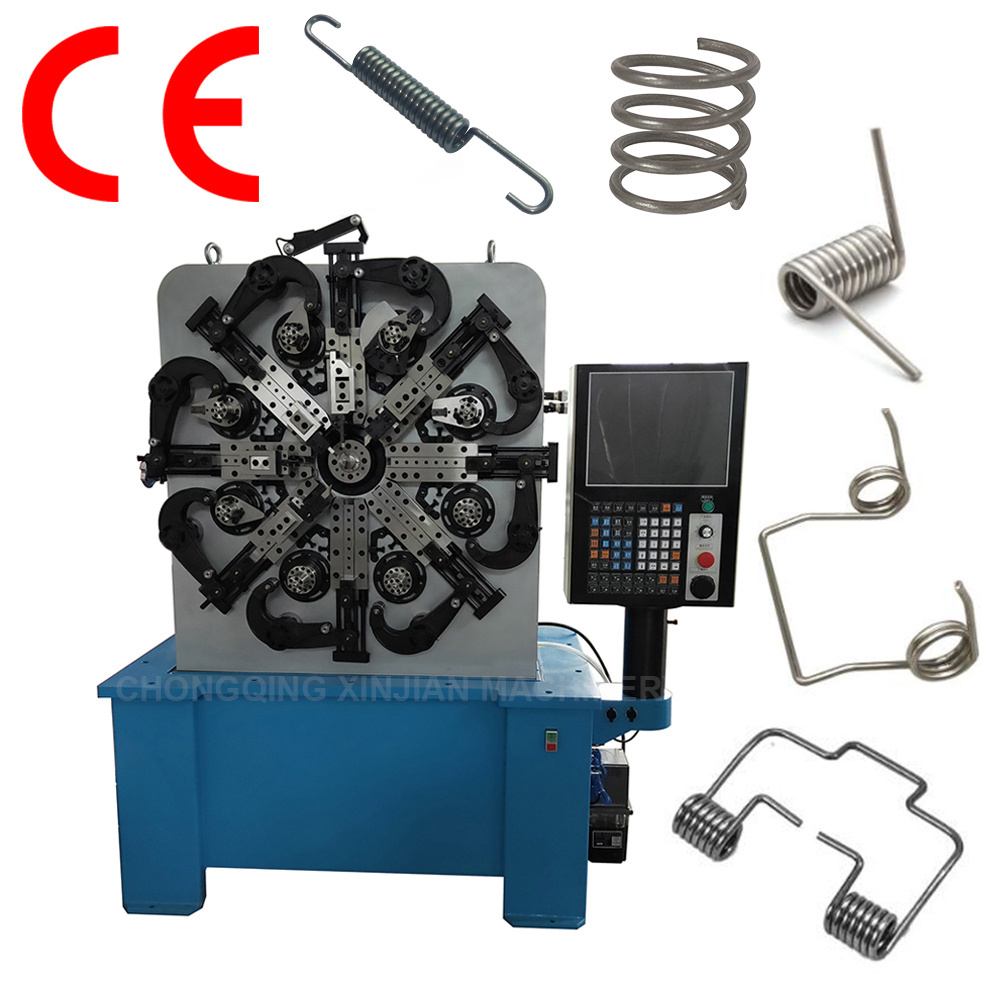

CNC spring forming machine is to produce kinds of springs expertly with high precision and fast speed. Adopts Japanese Sanyo Denki servo motor and high quality controlling system. It can produce kinds of compression spring, torsion spring, tension spring,abnormal spring and other wire forms. Can be extended to 4 axis with spinner upon request.
|
Model
|
GT-SF-20B
|
GT-SF-35W
|
GT-SF-50W
|
GT-SF-65W
|
|
Wire size(mm)
|
0.2-2.3
|
1.0-4.0
|
1.0-5.0
|
3.0-6.5
|
|
Max. outer dia.
|
50mm
|
50mm
|
60mm
|
110mm
|
|
Axes
|
3(4)
|
3(4)
|
3(4)
|
3(4)
|
|
Feeding length
|
unlimited
|
unlimited
|
unlimited
|
unlimited
|
|
Wire feed speed
|
0-100M/min
|
0-75M/min
|
0-75M/min
|
0-75M/min
|
|
Production rate
|
0-120pcs/min
|
0-100pcs/min
|
0-180pcs/min
|
0-60pcs/min
|
|
Wire feed Motor
|
2.7kw
|
5.5kw
|
7.5kw
|
15.0kw
|
|
Cam motor
|
2.7kw
|
5.5kw
|
7.5kw
|
7.5kw
|
|
Quill motor
|
1.0kw
|
1.0kw
|
1.0kw
|
1.5kw
|
|
the feeding tray
|
100KG
|
200KG
|
500KG
|
500KG
|
|
Size(L*W*H)mm
|
1400x600x1900
|
1600x700x1900
|
2100x800x1900
|
2200x900x1900
|
|
Weight
|
900.0kg
|
1100.0kg
|
1300.0kg
|
1500.0kg
|
Our Service
Pre-Sales Service
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* Engineers available to service machinery overseas.
