Quick Details
-
Window:
-
PVC Window or Customized
-
Door:
-
Steel Security Door or Customized
-
Wall Panel:
-
75-100 mm EPS sandwich panel
-
Roof Board:
-
corrugated steel plate
-
Floor:
-
18mm MGO Board
-
Column:
-
3mm Galvanized
-
Color:
-
Blue, Gray, Red, White
-
Performance:
-
Seismic Resistance,Wind Resistance,Fire Resistance
-
Size:
-
6058 mm(L)*2438 mm(W)*2896 mm(H)
-
Life Time:
-
20-25 years
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
UPS
-
Model Number:
-
UPS-G-0171
-
Window:
-
PVC Window or Customized
-
Door:
-
Steel Security Door or Customized
-
Wall Panel:
-
75-100 mm EPS sandwich panel
-
Roof Board:
-
corrugated steel plate
-
Floor:
-
18mm MGO Board
-
Column:
-
3mm Galvanized
-
Color:
-
Blue, Gray, Red, White
-
Performance:
-
Seismic Resistance,Wind Resistance,Fire Resistance
-
Size:
-
6058 mm(L)*2438 mm(W)*2896 mm(H)
-
Life Time:
-
20-25 years

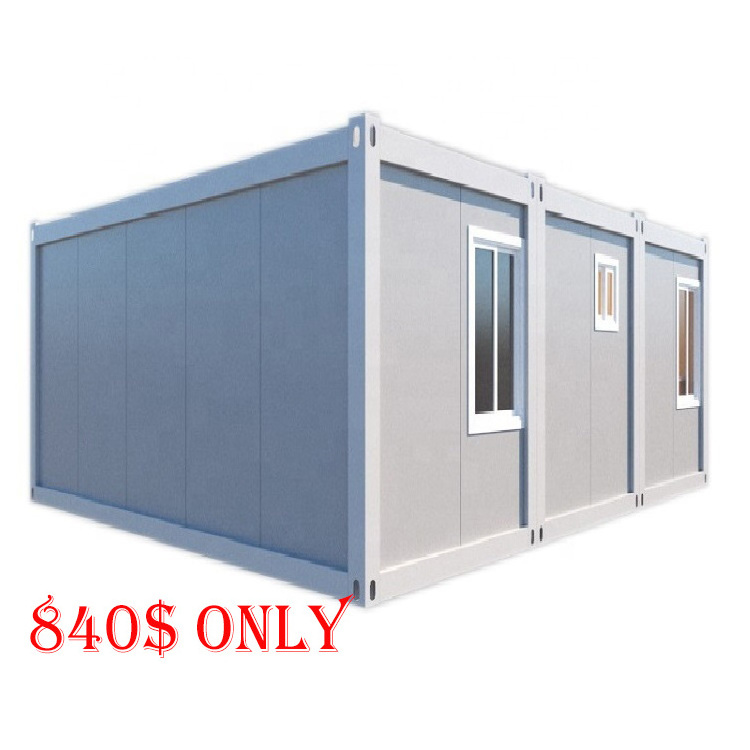

2021 ups new design new service eco shipping flat pack containerized office/garage/houses
Container house is a kind of building system that has hit the fashion trend again and again, and can be moved anywhere anytime to make more convenient and comfortable life for people.
The house is the overall structure, with the frame, the wall is the steel plate and sandwich panels, the service life can be more than 30 years.
The Usage of UPS Flat Pack Container House
It is widely used to offices, villa, terraced house, affordable house, coffee bar, storage room, restaurant, toilet, shop, hotel, motel, camp, kitchen, bathroom, labor accommodation, school, dormitory, showroom, studio etc.
Technical Parameters of Prefab UPS Flat Pack Container House
|
Outside Size |
6058 mm(L)*2438 mm(W)*2 896 mm(H) |
|
Roof Board |
Corrugated Steel Plate |
|
Wall Panel |
75-100 mm thickness Panel |
|
Floor |
18 mm M GO Board |
|
Door |
900 mm*2000 mm or Customized |
|
Window |
W800 mm*H1000 mm PVC or Customized |
|
Frame |
Steel Profile Q235 |
|
Material |
All Steel Galvanized |
|
Live L oad C apacity of R oofing |
0.6 KN /m ² |
|
Second Floor Load Capacity |
150 KG /m ² |
|
Live L oad of C orridor |
2.0 KN / m ² |
|
Wall P ermitted L oading |
0.6 KN/ m ² |
|
Ceiling Permitted L ive L oading |
0.5 KN/m ² |
|
Wall Coefficient of T hermal C onductivity |
K=0.442 W/m ·K |
|
Ceiling Coefficient of T hermal Co nductivity |
K=0.55 W/ m ·K |
|
External and I nternal W all H eat T ransmission C oefficient |
0.35 K · cal/m · h ·℃ |
|
Wind R esistance |
Grade 11 |
|
( W ind S peed≤ 120 km/h) |
|
|
Earthquake R esistance |
Grade 9 |
Safe, environmentally friendly, intelligent and comfortable combination architectural space.
Introduction of the Bottom of the Container House
Frame made of s teel pr ofile Q235 , seamless bended, seamless welded, surface galvanized. Painted with anticorrosive paints, laying materials: laminate board, PVC board, blockboard, cement fiber board etc.
Introduction of the Wall System
Consists of 0.42 mm colored steel sheets on both sides or one 0.42 colored sheet and one 0.42 mm stainless sheet, integrated with EPS \ ROCK WOOL etc. The thickness of the external wall is 75 -100 mm, and the internal wall is 50 -100 mm. The density of the EPS is 12 kg\m³ , the density of the rock wool is 100 kg\m ³ . And the color of the wall is as per the clients ’ demands.
Advantages of Prefabricated Container Homes
1.Cost Effective: make full use of container space. Many modular units can be stacked and linked together to create more space.
2.Fast Assembling: 5 workers finish 1unit in 1 hours. Easy for low skilled workers to assemble.
3.Neat inside: plumbing and wires are hidden into the sandwich panel.
4.Good sealing performance, good fireproof, good heat insulation and thermal resistance.
5.Movable, reusable, flexible - you can live anywhere you like.
Checking & Packing
1.Checking: Carefully check the shipping list. Making sure no mistake.
2.Packing: Flat pack container house can be compressed into small volume. With our packing process one 40ft HC shipping container can load 6units of 20ft standard container house. This packing process also will avoid damage during shipping.
