Quick Details
-
Productivity:
-
5-8m³/h
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HS
-
Weight:
-
500 kg
-
Dimension(L*W*H):
-
1800*700*1100
-
Rated voltage:
-
380v
-
Motor Power:
-
15kw
-
Delivery Pipe Specifications:
-
80/100/125mm
-
Conveying cylinder stroke:
-
100*500mm
-
Outlet diameter:
-
100mm
-
Main oil pump specification:
-
Gear/Plunger
Quick Details
-
Power Type:
-
Electric/Diesel
-
Max. vertical conveying distance:
-
10M
-
Max. horizontal conveying distance:
-
60M
-
Productivity:
-
5-8m³/h
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HS
-
Weight:
-
500 kg
-
Dimension(L*W*H):
-
1800*700*1100
-
Rated voltage:
-
380v
-
Motor Power:
-
15kw
-
Delivery Pipe Specifications:
-
80/100/125mm
-
Conveying cylinder stroke:
-
100*500mm
-
Outlet diameter:
-
100mm
-
Main oil pump specification:
-
Gear/Plunger
Product Paramenters
|
Product number
|
Horizontal
|
Walking while lying down
|
Oblique large aggregate
|
Type 20
|
|
Rated voltage
|
380v
|
380v
|
380v
|
380v
|
|
Motor Power
|
15kw
|
15kw
|
15kw/diesel
|
22kw/diesel
|
|
Theoretical delivery
|
5-8m³/h
|
5-8m³/h
|
5-8m³/h
|
5-8m³/h
|
|
Aggregate diameter
5-15mm |
Vertical height 35M
Horizontal distance 100M |
Vertical height 35M
Horizontal distance 100M |
Vertical height 35M
Horizontal distance 100M |
Vertical height 35M
Horizontal distance 100M |
|
Aggregate diameter
10-25mm |
Vertical height 10M
Horizontal distance 60M |
Vertical height 10M
Horizontal distance 60M |
Vertical height 15M
Horizontal distance 80M |
Vertical height 20M
Horizontal distance 80M |
|
Delivery Pipe Specifications
|
80mm
|
80mm
|
80/100/125mm
|
80/100mm
|
|
Conveying cylinder stroke
|
100*500mm
|
100*500mm
|
100*500mm
|
120*650mm
|
|
Outlet diameter
|
100mm
|
100mm
|
100mm
|
100mm
|
|
Main oil pump specification
|
Gear/Plunger
|
Gear/Plunger
|
Gear/Plunger
|
Gear/Plunger
|
|
Dimensions mm
|
1800*700*1100
|
2000*700*1100
|
1800*700*1100
|
3000*1200*1500
|
|
Total Weight
|
500kg
|
600kg
|
500kg
|
1200kg
|
Product Advantages

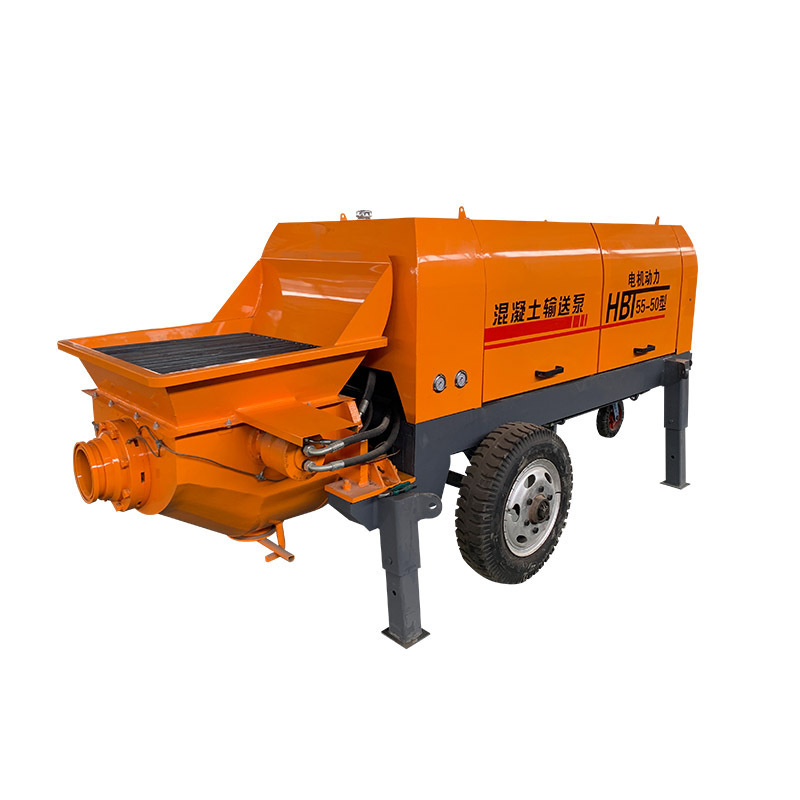

1.CONCRETE PUMP,also called trailer mounted concrete pump or concrete trailer pump, is the kind of small concrete pump mounted on the moveable trailer to to convey concrete to hard to access flexibly.
2.Concrete pump trailer is specially designed and engineered with latest differential pressure induction control technology to keep reliability, simplify and efficiency.
3.Our concrete pump trailer main components such as wear plate, piston, cylinder, discharge port and hopper are made with wear resistant high chrome alloy materials, strict welding and heat treatment processes.
4.Our concrete trailer pump is equipped with advanced hydraulic system which can be powered by diesel engine or electric motor for your selection.
5.It features energy saving, large flow, wider adaptability, high efficiency, good wear resistance and easy to operate, it is widely used for concrete pumping in housing building, elevated road, bridge or tunnel construction projects.
Application
Widely used for concrete pumping in house construction, elevated road, bridge or tunnel construction.
