Products Description

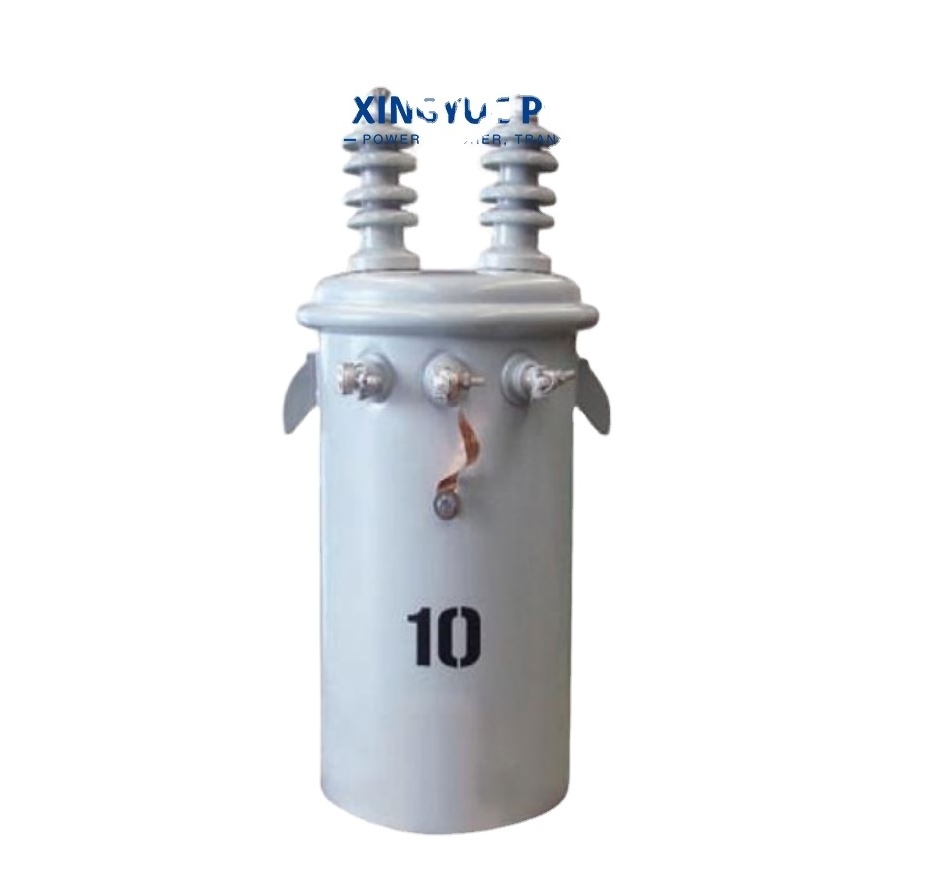

Single phase Transformer
Rating
- 10, 15, 25, 37.5, 50, 75, 100, 167 kVA
- 10, 15, 25, 37.5, 50, 75, 100, 167 kVA
High Voltage - 4160 GrdY/2400 to 34500 GrdY/19920 or 2400 to 19920 (Dual voltajes available)
- BIL: 60 kV to 150 kV
Low Voltage - 240/120 and 480/240
Low Voltage - 240/120 and 480/240
Meets or exceeds current RUS, NEMA and ANSI Standards C57.12.00, ANSI C57.12.20 as applicable
* Mild steel tank with welded lifting lugs and hanger brackets for direct-to-pole mounting
* Single piece clamped cover band meets cover retention requirements of applicable ANSI standards
* Electrostatically applied polyester powder paint system for superior corrosion protection
* High-voltage porcelain cover-mounted bushings (wall mounted for units with high voltage 4160 or below)
* Tank wall mounted porcelain or polymer low-voltage bushings
* Tin-plated bronze terminals for connection to copper or aluminum
* Low-voltage ground provisions
* Tank ground provision
* Insulated cover for wildlife protection
* Laser engraved aluminum nameplate
* Non-PCB insulating oil
* KVA rating on tank wall
* Arrester mounting nuts welded to tank (single bushing designs)
* One HV bushing with tank ground strap for grounded wye applications or two HV bushings for wye applications
* Recessed tank bottom
* Broad selection of design efficiencies to meet specific customer applications and new DOE minimum requirements
* Mild steel tank with welded lifting lugs and hanger brackets for direct-to-pole mounting
* Single piece clamped cover band meets cover retention requirements of applicable ANSI standards
* Electrostatically applied polyester powder paint system for superior corrosion protection
* High-voltage porcelain cover-mounted bushings (wall mounted for units with high voltage 4160 or below)
* Tank wall mounted porcelain or polymer low-voltage bushings
* Tin-plated bronze terminals for connection to copper or aluminum
* Low-voltage ground provisions
* Tank ground provision
* Insulated cover for wildlife protection
* Laser engraved aluminum nameplate
* Non-PCB insulating oil
* KVA rating on tank wall
* Arrester mounting nuts welded to tank (single bushing designs)
* One HV bushing with tank ground strap for grounded wye applications or two HV bushings for wye applications
* Recessed tank bottom
* Broad selection of design efficiencies to meet specific customer applications and new DOE minimum requirements
Product Paramenters
|
Rated Power
(KVA) |
High Voltage
(V) |
Low Voltage(V)
|
LOSS(W)
|
|
Weight(KG)
|
|
||
|
|
|
|
No-load Loss(W)
|
On-load Loss(W)
|
Oil Weight
|
Total Weight
|
||
|
10
|
34500/
19920
13800/ 7957 13200/ 7620 12470/ 7200 or others |
120-240
240-480 347 600 |
36
|
120
|
22
|
150
|
||
|
15
|
|
|
50
|
195
|
30
|
210
|
||
|
25
|
|
|
80
|
290
|
45
|
258
|
||
|
37.5
|
|
|
105
|
360
|
50
|
340
|
||
|
50
|
|
|
135
|
500
|
62
|
395
|
||
|
75
|
|
|
190
|
650
|
88
|
480
|
||
|
100
|
|
|
210
|
850
|
95
|
540
|
||
|
167
|
|
|
350
|
1410
|
140
|
690
|
||
|
333
|
|
|
--
|
--
|
--
|
--
|
||
Tests
• All transformers are tested in strict accordance with the latest revision of applicable ANSI™, IEEE™,NEMA, and RUS with test reports available by serial number of the transformer
Routine tests are:
• Leak test
• Polarity and phase relation
• Resistance
• No-load losses and excitation current
• Load losses and impedance
• Applied voltage
• Induced voltage
• Full wave impulse
• Ratio test
Certifications
All products of the company have passed the national type test like
UL,CCC,CQC, CTQC,CE,SGS
and other national mandatory product certification, and has a perfect quality, occupational health and environmental management system certification system.
Our products have passed
ISO9001, 14001,45001
and other international quality system certification.
Hot Products
Product packaging
Packaging: Wooden case ,Steel frames made of special materials or according to client's requirements
The requirements for the making and reinforcement of packing boxes were strictly in accordance with the international standards.
Shipping: Land transportation/Ocean transportation
Our products have been shipped all around the world, with an extensive logistic network, we provide the best transportation option for our clients.
Xingyue Story
Henan Xingyue Power Equipment Co., Ltd. is a modern enterprise integrating transformer design, production, sales and installation. Since 2001, Xingyue Company has continued to upgrade and reform, expand its R&D team, and become one of the world's high-quality power equipment suppliers. Xingyue Company's main product categories: oil-immersed transformers, dry-type transformers, compact substations, pad mounted transformers, single phase transformers, high and low voltage complete sets of switchgear, distribution cabinet, rectifier transformers, electric furnace transformers, high overload transformers, medium frequency furnace transformers, scott transformers and other various special transformers .
At present, we have established overseas agent offices in more than 50 countries including Mexico, Chile, Brazil, Romania, South Africa, Ethiopia, Pakistan, Philippines, and Indonesia, and can customize products that meet standards according to customers' regional needs; in addition, in Indonesia We have overseas factories to meet the needs of the power market in Central and South Asia and provide customers with the shortest delivery time and more powerful after-sales support services.
