Quick Details
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LaserMen
-
Dimension(L*W*H):
-
2.1m*1.95m*1.12m
-
Weight (KG):
-
430 KG
-
Mode of Operation:
-
CO2 laser tube
-
Product name:
-
LM-1490-XH
-
Cooling system:
-
Water cooling, water pump
-
Working voltage:
-
Single phase 220V±10% 50Hz
-
Transmission system:
-
Integrated guide bar with rail and belt
-
Driving system:
-
Stepper motors and drivers
-
Processing materials:
-
nonmetal
-
Machine table:
-
Blade table
-
Control system:
-
RuiDa controller
-
Exhaust system:
-
Exhaust fan
-
Software:
-
RDworks laser sofware
Quick Details
-
Engraving Area:
-
1400mm*900mm
-
Laser Type:
-
CO2
-
Engraving Speed:
-
0-600mm/sec
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Cooling Mode:
-
WATER COOLING
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LaserMen
-
Dimension(L*W*H):
-
2.1m*1.95m*1.12m
-
Weight (KG):
-
430 KG
-
Mode of Operation:
-
CO2 laser tube
-
Product name:
-
LM-1490-XH
-
Cooling system:
-
Water cooling, water pump
-
Working voltage:
-
Single phase 220V±10% 50Hz
-
Transmission system:
-
Integrated guide bar with rail and belt
-
Driving system:
-
Stepper motors and drivers
-
Processing materials:
-
nonmetal
-
Machine table:
-
Blade table
-
Control system:
-
RuiDa controller
-
Exhaust system:
-
Exhaust fan
-
Software:
-
RDworks laser sofware

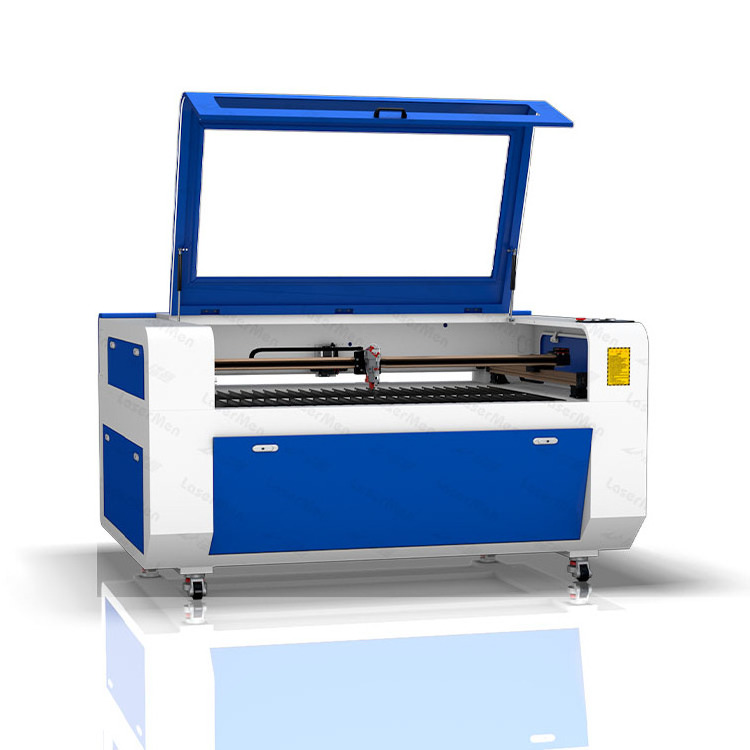

High Precision Leather Laser Engraving Machine Engraving Laser Machine Cutting Made In China
* Key points of co2 laser engraver cutter
* laser power of wood laser cutter : 80w, 100w, 130w, 150w, 180w, 240w, 300w
* cutting area of wood laser cutter : 600 x400mm, 900 x600mm, 1300 x 900mm, 1400 x900mm, 1600 x1000mm
* with CE ISO certificated
* laser power of wood laser cutter : 80w, 100w, 130w, 150w, 180w, 240w, 300w
* cutting area of wood laser cutter : 600 x400mm, 900 x600mm, 1300 x 900mm, 1400 x900mm, 1600 x1000mm
* with CE ISO certificated
Machine Parameters
|
Product name
|
LM-1490-XH co2 laser engraving cutting machine
|
|
Cooling system
|
Water cooling, water pump / S&A industrial water chiller
|
|
Working voltage
|
Single phase 220V±10% 50Hz (Optional: 220V±10% 60Hz, 110V±10% 60Hz)
|
|
Transmission system
|
Integrated guide rail transmission
|
|
Driving system
|
Stepper motors and drivers
|
|
Processing materials
|
acrylic wood mdf plywood glass leather fabric stone plastic rubber PVC etc.
|
|
Machine table
|
Blade table (alternative: honeycomb table)
|
|
Control system
|
RuiDa controller RDC6445G
|
|
Air assist
|
Air compressor
|
|
Exhaust system
|
Exhaust fan
|
|
Machine color
|
Blue and white, Accept customization
|
|
Optional function
|
Wifi, Rotaty, Red dot, auto-focus, motorized up-down table, safety interlock
|
|
Software
|
RDworks laser sofware
|
|
Laser power
|
80w, 100w, 130w, 150w, 180w
|
|
Working area
|
1400*900mm
|
Advantages :
1.)
This co2 laser engraver cutter software supporting 10 commonly used graphic formats.
2.)
O
ff-line control with wood laser cutter USB port interface.
3.)
This acrylic laser cutter use brand tube focusing lenses, choice of 4", 2.5" 2" focal lengths.
4.)
Focusing of this mdf laser cutter is simple, if you equip with up and down working table, only need to adjust in the control panel.
5.)
All plywood laser cutter are featured a red dot alignment pointer (extra features) , helping you to properly position your work under the laser head.
6.)
Integrated guide rail transmission, higher cutting precision, faster cutting speed and better cutting effect.
7.)
Un-limited feed-through door, front and rear feeding can be realized.
8.)
Air asist of this leather co2 laser cutter, we will provide you one set leather laser cutter air compressor, you can transfer switch to control the strength of air blowing. Pevent smoke and dust inter the laser head, protect the lens and improve the service life.
9.)
Exhaust fan & vacuum table，
this installation of wood laser cutter pulls fumes and debris away from the work piece; the resulting vacuum is strong enough to straighten and flatten thin materials against the wood laser cutter work table for cutting and engraving in good focus.
Product Details
Features of MDF laser cutter
1.This mdf laser cutter clean cut edges without burr for more efficient and high speed material utilization and reduced secondary operations.
2. This wood laser cutter can cut various material thicknesses.
3.This mdf
laser cutter has highly controllable, repeatable and accurate processing.
Automatic focus laser head
Double heads can be selected
Control panel
Integrated guide rail
Working table
Laser tube
Control cabinet
Stepper motor
Chuck rotation axis
Roller rotation axis
Exhaust fan
Air compressor
Tools
Details of co2 mdf laser cutter
1. laser tube of acrylic co2 laser cutter
There are engraving function and good auxiliary engraving function.
Cutting of large power rate and long service time, applicable to the cutting of thick acrylic plates.
2.
Guide rail of wood laser cutter
the XH series integrated linear guideways can achieve a long life with high speed, high accuracy and smooth linear motion.
3. Stepper motor of leather laser cutter
Low noise / low vibration
Smooth running / high torque
Higher acceleration / better accuracy
Better Acceleration performance
Optional Functions
Product Application
Applicable Industries:
Model industry (construction models, aviation and navigation models and wooden toys), advertisement, decoration, arts and crafts, electronic and electric appliances, garment industry fabric leather cut, etc.
Working materials:
Nonmetal materials such as acrylic, MDF, wood planks (light planks, paulownia wood), bamboo ware, double-color sheets, paper, leather, shells, coconut shells, ox horns, resin, animal grease, ABS boards, lampshade, etc.
Related Products
Customer Feedback Video ：
Customers are satisfied with the use of our co2 laser engraving machine and highly praised it. The engraving speed is fast and exquisite, and the application range is wide.
