100% genuine high quality A-grade solar inverter with factory QR code on it. Not fake or used or bad quality inverter!!!
Explore More Products
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Felicitysolar
-
Model Number:
-
IVEM5048
-
Input Voltage:
-
48V
-
Output Voltage:
-
230V
-
Output Current:
-
30A
-
Output Frequency:
-
50/60Hz
-
Size:
-
415x320x129mm
-
Certificate:
-
CE/ISO, CE/ISO
-
Warranty:
-
2, 12 Months
-
Weight:
-
12
-
Product name:
-

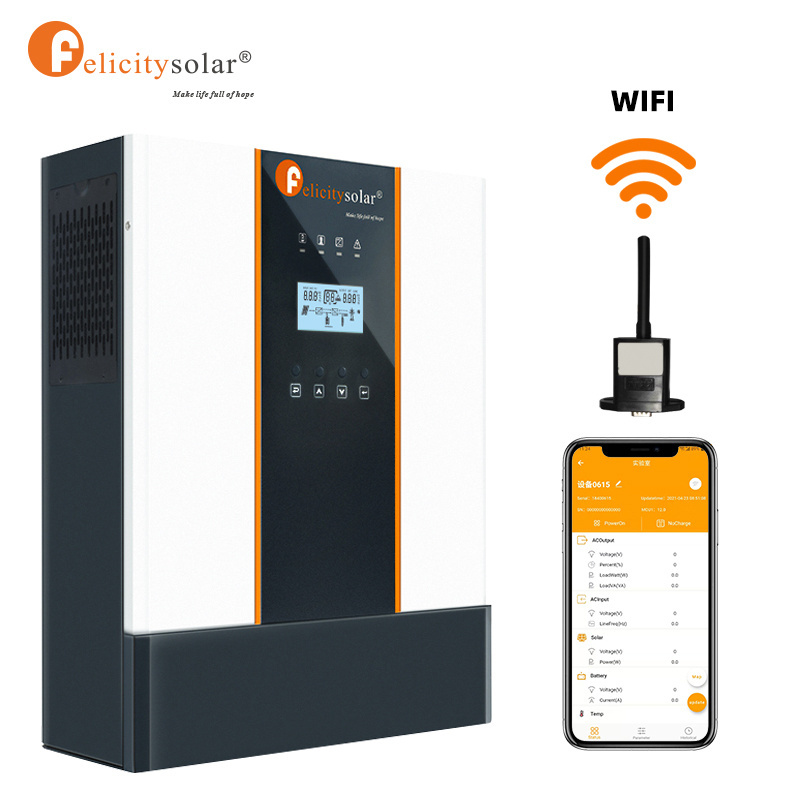

Hybrid Solar Inverter
-
Application:
-
Solar Power System Home
-
Output waveform:
-
Pure Sine Wave Output
-
Display:
-
LCD+LED Display
-
OEM:
-
Accepted
-
controller:
-
100A MPPT
-
Color:
-
White
-
Protection:
-
Overload
Quick Details
-
Output Type:
-
Single
-
Type:
-
DC/AC Inverters
-
Inverter Efficiency:
-
98%
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Felicitysolar
-
Model Number:
-
IVEM5048
-
Input Voltage:
-
48V
-
Output Voltage:
-
230V
-
Output Current:
-
30A
-
Output Frequency:
-
50/60Hz
-
Size:
-
415x320x129mm
-
Certificate:
-
CE/ISO, CE/ISO
-
Warranty:
-
2, 12 Months
-
Weight:
-
12
-
Product name:
-
Hybrid Solar Inverter
-
Application:
-
Solar Power System Home
-
Output waveform:
-
Pure Sine Wave Output
-
Display:
-
LCD+LED Display
-
OEM:
-
Accepted
-
controller:
-
100A MPPT
-
Color:
-
White
-
Protection:
-
Overload
To become a distributor or agent of Felicitysolar, please contact us！！！
We can ship from 30+
Overseas branches
in the
United States, the European Union, Nigeria, South Africa, the Philippines,Myanmar, Dubai, Mali...
and provide fast transportation services. If you need it, please click here to contact us directly.
Features
·Pure sine wave inverter.
·Built-in MPPT solar charge controller.
·Configurable input voltage range for home appliances and personal computers via LCD setting.
·Configurable battery charging current based on applications via LCD setting.
·Configurable AC/Solar Charger priority via LCD setting
·Compatible to mains voltage or generator power.
·Auto restart while AC is recovering.
.Inverter running without battery.
·Lithium battery activation function.
·Cold start function.
|
Model
|
IVEM3024
|
IVEM5048
|
||
|
Rated Output Power(VA)
|
3000VA
|
5000VA
|
||
|
Rated Output Power(W)
|
3000W
|
5000W
|
||
|
Nominal DC Input Voltage
|
24V
|
48V
|
||
|
Nominal Input Voltage
|
230Vac
|
|
||
|
Max AC Input Voltage
|
280Vac
|
|
||
|
Nominal Input Frequency
|
50Hz/60Hz(Auto detection)
|
|
||
|
Efficiency (Line Mode)
|
>95%(Rated R load,battery full charged)
|
|
||
|
Pass Through Without Battery
|
Yes
|
|
||
|
Utility Charge Mode Specifications
|
|
|
||
|
Input Voltage Range
|
90-280Vac
|
|
||
|
Over Charge Protection
|
Yes
|
|
||
|
General Specifications
|
|
|
||
|
Operating Temperature
|
0℃~55℃
|
|
||
|
Range Storage Temperature
|
-15℃~60℃
|
|
||
|
Net Weight(KG)
|
9.1KG
|
11.2KG
|
||
|
Gross Weight(KG)
|
10.8KG
|
13.2KG
|
||
|
Product Size (D*W*H)
|
395x295x129mm
|
415x320x129mm
|
||
|
Package Dimension (D*W*H)
|
492x392x222mm
|
514x419x222mm
|
||
Many customers have used Felicitysolar batteries and received good feedback:
Felicity solar is the best supplier for you
:
*A professional supplier of solar energy products, headquartered in Guangzhou, China, with a history of 16 years, including 24V and 48V lithium batteries, 12V strong acid batteries, 2v OPZV batteries, solar inverters, controllers, street lights, and solar panels.
*OEM/ODM services are acceptable.
We can customize products according to your requirements, ensuring 100% of the quality you expect.
*Provide fast transportation services.
There are30+
Overseas branches
in China, United States, the European Union, Nigeria, South Africa, the Philippines, Myanmar, Dubai, Mali, and more.
*High quality local after-sales service.
If there is a problem with the product, we have professional after-sales technical engineers in 30+ countries, including United States, the European Union, Nigeria, South Africa, the Philippines, Myanmar, Dubai, Mali, to help you solve it.
*Alibaba TUV Verified Supplier.
Felicitysolar is a professional supplier of gold products certified by Alibaba TUV in 2009
If you are interested in our products or services, please come to contact us immediately！
