High Quality Zebra Zxp Series 7 Retransfer Plastic Pvc Business Driver License Nfc Id Credit Card Printer

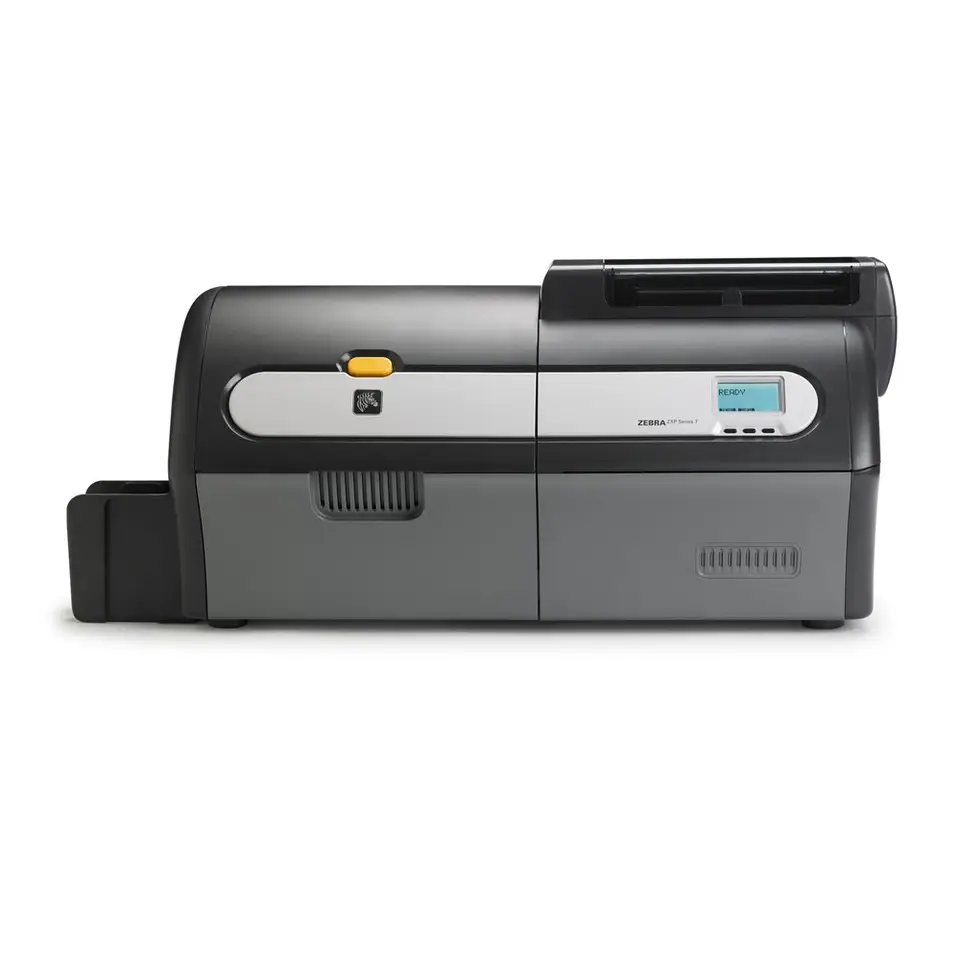

The fast and reliable Zebra ZXP Series 7 prints photo-like plastic cards and badges. Ideal for high-volume card print applications, Zebra ZXP7 combines the powerful printing capabilities of the popular Zebra p330i and p430i printer models with the laminating capabilities of Zebra p630i and p640I printers.

Zebra ZXP7 printer has an innovative modular design, automatically adjusting to the thickness of each card you print.  Even with its high performance print technology, Zebra ZXP7 remains simple to use with easy ribbon loading, handy color-coded guides, and an intuitive LCD control panel. Top reasons to buy a Zebra ZXP7 include

• Fast click-to-drop and batch-print speed coupled with a low maintenance schedule boosts productivity and efficiency
• High image quality produces photo-like color images
• Low cost per card using Zebra high capacity ribbons and wasteless laminate
• Modular design allows easy field upgrades – when you need them, right in your office!
• Reliable and sturdy design that works out of the box in a wide range of environments and applications
• High performance software provide control and flexibility, allowing you to design cards from handy templates and enables remote print monitoring

Design Flexibility – Upgrade your ZXP7 Only When you Need It

The ZXP Series 7 printer offers real flexibility. You can buy options and install them whenever you need them—at your own facility—so you can add to your portfolio of card-printing applications and manage your investment at the same time. The printer can be ordered in our online store with several standard options, including:

• Card Print Capacity – Single or Double-sided Printing
• Lamination Module—Single or Double-sided Card Lamination (can only be ordered on double-sided ZXP7 printers)
• Magnetic Encoding—with or without Magnetic Encoder to produce plastic cards with magnetic stripe swipe data

High-Performance Supplies—Lower Cost-per-Card

Zebra supplies make it easier than ever to manage your printer. Recommended for optimal printing quality and proper printer performance, these supplies—including color ribbons, monochrome (single-color)ribbons, laminates, printer cleaning kits and printer upgrades—meet stringent quality standards. ZXP Series 7 printer is designed to work only with Zebra True Colours® ix Series™ ribbons and laminates.

High-capacity ribbons reduce costs by delivering more images per roll and feature an improved formulation for printing high-quality images at higher speeds. Many ribbon types are available in two sizes to meet the needs of every printing task. Zebra True Secure laminates reduce the risk of counterfeiting and extend the life of your high-security cards. The unique laminate design dramatically reduces waste by eliminating the need for carrier material, backings and liners. Specially designed cartridges make laminate replacement simple

Both the ribbons and laminates utilize intelligent media technology, which automatically detects and calibrates the printer.

High Performance Software—For High Performance Hardware

Zebra ZXP Series 7 works with high performance software that allows you to control and monitor your card output. The printer comes standard with Windows Certified printer drivers and the ZXP Toolbox, a separate Windows application that allows easy access to all printer configuration and maintenance functions. Zebra ZXP7 also works with several optional advanced software packages including ZMotif Software Development Kit (SDK) and Zebra Virtual PrintWare for easy application integration and third-party printer management. These software packages allow you to print to one or more networked card printers and remotely monitor printers’ health and status. To increase print capacity and throughput, you can also use the software to pool and manage multiple printers as if they were one printer

Specifications :

Standard features

• 300 dpi/11.8 dots per mm print resolution
• USB 2.0 and Ethernet 10/100 connectivity
• Microsoft® Windows-certified drivers
• 200-card capacity feeder (30 mil)
• 15-card reject hopper (30 mil)
• 100-card output hopper (30 mil)
• Single-card feed capability
• ix Series intelligent media technology
• 21-character x 6-line LCD operator display with configurable soft keys
• Kensington® physical lock slot
• Two-year unlimited warranty on printer and printhead

Optional Features - Contact an ID Expert at 877-868-0012

• Extended product warranty programs
• 250-card capacity output hopper (30 mil)
• 802.11b/g wireless connectivity
• AAMVA and ISO HiCo/LoCo magnetic stripe encoder
• Combined MIFARE® ISO 14443 A & B (13.56MHz) contactless and ISO 7816 Contact
• Linear barcode scanner
• Encoder with EMV level 1 certification, and PC/SC compliance
• ISO 7816 Smart Card Contact Station for third-party external contact encoders
• Single- and dual-sided laminator (available with dual-sided printers only)
• FIPS 201 compliant dual-sided laminator
• Lockable enclosures and card feeder cartridge
• UhF Gen 2 rFID encoder
• Zebra Zirtual PrintWare software
• Zmotif SDK software

Printing and laminating specifications

• Color dye sublimation or monochrome thermal-transfer printing
• Single- and dual-sided printing near photographic print quality edge-to-edge printing on standard CR-80 media
• Simultaneous printing, encoding, and laminating capability one-pass single- and dual-sided wasteless lamination
• 1375 cards/hour monochrome single-sided or 555 cards/hour dual-sided printing
• 300 cards/hour full-color YMCKO single-sided printing
• 225 cards/hour full-color YMCKOK dual-sided printing
• 270 cards/hour full-color YMCK single-sided printing with lamination
• 200 cards/hour full-color YMCKK dual-sided printing with lamination

NOTE: Printing throughput (cards per hour) based on batch printing with USB connectivity. Times may vary depending on the computer configuration.

Card specifications/compatibility

• Card thickness: 10–50 mil (0.25–1.27mm)
• Card thickness for lamination: 30 mil (0.76mm)
• Card size: Cr-80, ISo 7810 format, Type ID-1
• Card material: PvC and composite, abS cards, PeT, PeT-G, PeT-F, PeTix, and Teslin® composite
• Technology cards: contact and contactless smart cards
• Specialty cards: adhesive backed, transparent (Ir-blocked), signature panel, and select key-tag types

NOTE: For optimum print quality and printer performance, use genuine Zebra™ supplies.

Software

• Microsoft Windows-certified printer drivers with ZXP Toolbox utility features: Windows 7, Windows vista®, Windows Server® 2008 (all 32- and 64-bit-compatible), and Windows XP, Server 2003 (both 32-bit-compatible)
• CardStudio card design software version 1.2

Communications interfaces

• USB 2.0
• USB supports plug-and-play printer identification
• 10/100 Ethernet
• Ethernet is IPv6-ready

Electrical specifications

• Auto-switching single-phase aC power
• 90v–264v aC and 47–63hz (50–60hz nominal)
• FCC Class a
• Energy Star® qualified printer

Physical characteristics

• Height: 12"/306 mm
• Width (printer only): 27.5"/699 mm
• Width (printer with laminator): 38"/964 mm
• Depth: 10.9"/277 mm
• Weight (printer only): 26.9 lbs/12.2 kg
• Weight (printer with laminator): 39.5 lbs/17.9 kg

Environmental

• Operating temperature: 59° F/15° C to 95° F/35° C
• Storage temperature: 23° F/-5° C to 158° F/70° C
• Operating humidity: 20% to 80% inclusive, non-condensing
• Storage humidity: 10% to 90% inclusive, non-condensing media should not be above 140° F/60° C for longer than 200 hours, and above 90% relative humidity at 104° F/40° C for longer than 100 hours
