Quick Details
-
certificate:
-
ISO9001, ISO14001, PEI, OIML, ATEX
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Censtar
-
Model Number:
-
CS52
-
certificate:
-
ISO9001, ISO14001, PEI, OIML, ATEX

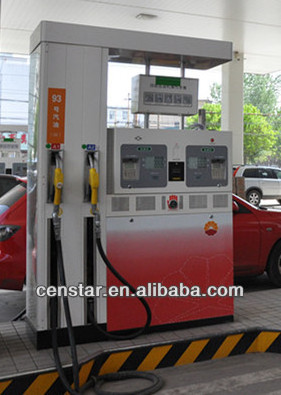

automatic self-service Dresser Wayne fuel dispenser
Censtar fuel dispensers, stand from the coldest Siberia to the hottest Sri Lanka.
Censtar, top brand in Chinese greaser industry, pioneered a number of "FIRSTS" in Chinese fuel-servicing equipment industry, won 14 national patents in the R&D of fuel-servicing equipments.
Product configuration option
1. CS***G
G series is LLJ05 flow meter
+GP03 gear pump
2. CS***F
F series is LLJ05
+Combined Vane Pump
|
Suction Dispenser
|
model |
Nozzle/Flow meter |
Product |
Pump/Engine |
Display each side |
Main board number |
Flow rate |
|
CS52J4221G |
4 |
2 |
2 |
1 |
2 |
50L |
|
|
CS52J6321G |
6 |
3 |
3 |
1 |
2 |
50L |
|
|
CS52J8421G |
8 |
4 |
4 |
1 |
2 |
50L |
|
|
CS52J4221F |
4 |
2 |
2 |
1 |
2 |
50L |
|
|
CS52J6321F |
6 |
3 |
3 |
1 |
2 |
50L |
|
|
CS52J8421F |
8 |
4 |
4 |
1 |
2 |
50L |
|
|
Remote Dispenser |
CS52D4221F |
4 |
2 |
0 |
1 |
2 |
50L |
|
CS52D6321F |
6 |
3 |
0 |
1 |
2 |
50L |
|
|
CS52D8421F |
8 |
4 |
0 |
1 |
2 |
50L |
Inner Structure
Transportation
Net size:1480*690*2150/ 1889*690*2150mm
Package size: 1650*840*2270/ 2059*840*2270mm
Gross weight: from 505KG to 790KG
6 units can be loaded in one 20” container
Technical Parameters
Accuracy: ±0.25%
Flow rate range: 5 to 50 liter per minute
Noise: ≤80dB(A)
Intake vacuum: ≥54kPa
Display: Sales 0.00 to 9999999
Volume: 0.00 to 99999.99
Unit price : 0.00 to 99999
Decimal point position can be chosen
Electrical totalizer: Volume 0 to 42949672.95L
Money 0 to 42949672.95
Power supply: AC380V or AC220V with a changing range from -15% to +10%
Motor's output power: 750W
Working environmental temperature: -40 o C to +55 o C
Relative humidity: 30% to 90%
Option
Vapor recovery system, low temperature solution, printing customer’s logo, international solenoid valve, breakaway valve and swivel, international brand nozzle, receipt printer, IC card payment terminal, stainless steel arm-side and canopy, Mechanical totalizer.
