Quick Details
-
Brand Name:
-
Jubaoly
-
Lead Free Status:
-
Lead free/RoHS
-
Measurement:
-
8*3.6*3cm
-
Lead time:
-
In stock
-
Lowest price:
-
Plz contact us
-
Shipping by:
-
DHL\UPS\Fedex\EMS\HK Post
-
Payment:
-
Paypal/TT/Western Union/Credit card
-
BOM list:
-
BOM Kitting+PCBA+Packing+Ship
Quick Details
-
Type:
-
16*2 LCD Display, Standard
-
Display Size:
-
69.5 * 22 * 11mm
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Jubaoly
-
Lead Free Status:
-
Lead free/RoHS
-
Measurement:
-
8*3.6*3cm
-
Lead time:
-
In stock
-
Lowest price:
-
Plz contact us
-
Shipping by:
-
DHL\UPS\Fedex\EMS\HK Post
-
Payment:
-
Paypal/TT/Western Union/Credit card
-
BOM list:
-
BOM Kitting+PCBA+Packing+Ship
Product Description

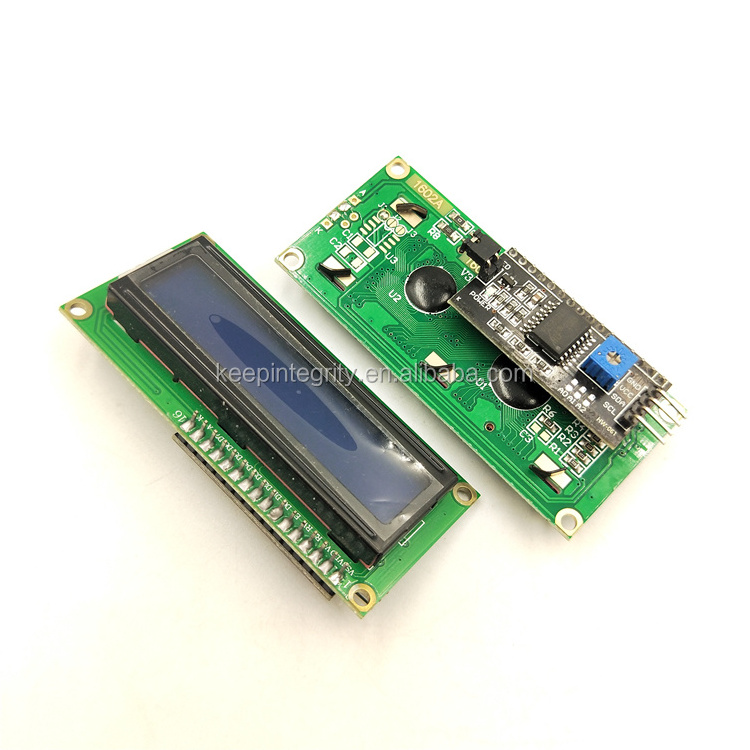

Factory 1602A LCD 5V Blue/Yellow-Green Screen Backlight 1602 16x2 LCD Display IIC/I2C Module LCD1602
|
1602 LCD module internal character memory (CGROM) has stored 160 different dot matrix character graphics, as shown in Table 1, these characters are: Arabic numerals, English letters of the case, commonly used symbols, and Japanese kana , Each character has a fixed code, such as the capital of the English letter "A" code is 01000001B (41H), the module shows the address 41H dot matrix
graphic display, we can see the letter "A " Standard 16X2 LCD display character module (backlight / blue screen) 1602 uses the standard 16-pin interface, where: 1st foot: VSS is ground power 2nd foot: VDD is connected to 5V power supply 3: V0 for the LCD contrast adjustment side, then the weakest contrast when the power supply, ground power when the highest contrast, the contrast is too high will produce "ghosting", you can use a 10K potentiometer to adjust the contrast Step 4: RS is the register select, select the data register at high level, select the instruction register when the low level is selected. 5 feet: R / W read and write signal lines, high when the read operation, low when the write operation. When RS and RW are low together, the instruction or display address can be written. When RS is low, RW is busy and the busy signal can be read. When RS is high, RW can write data. 6 feet: E-side to enable the end, when the E-side from high to high, the LCD module to execute the command. 7 ~ 14 feet: D0 ~ D7 for the 8-bit two-way data lines. 15 feet: backlight power positive 16 feet: backlight power supply negative |
