Quick Details
-
Model Number:
-
AC-112BS
-
Commodity Number:
-
24
-
Range:
-
0-1250um
-
Resolution:
-
0.1 um (0~99.9um)/1 um (over 100um)
-
Accuracy:
-
1~3%n or 2.5 um or 0.1mil (Whichever is the greater)
-
Minimum Measurement Area:
-
6 mm
-
Size:
-
140x70x30 mm
-
Weight:
-
130 g
Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
AM
-
Model Number:
-
AC-112BS
-
Commodity Number:
-
24
-
Range:
-
0-1250um
-
Resolution:
-
0.1 um (0~99.9um)/1 um (over 100um)
-
Accuracy:
-
1~3%n or 2.5 um or 0.1mil (Whichever is the greater)
-
Minimum Measurement Area:
-
6 mm
-
Size:
-
140x70x30 mm
-
Weight:
-
130 g
Products Display
Product Description

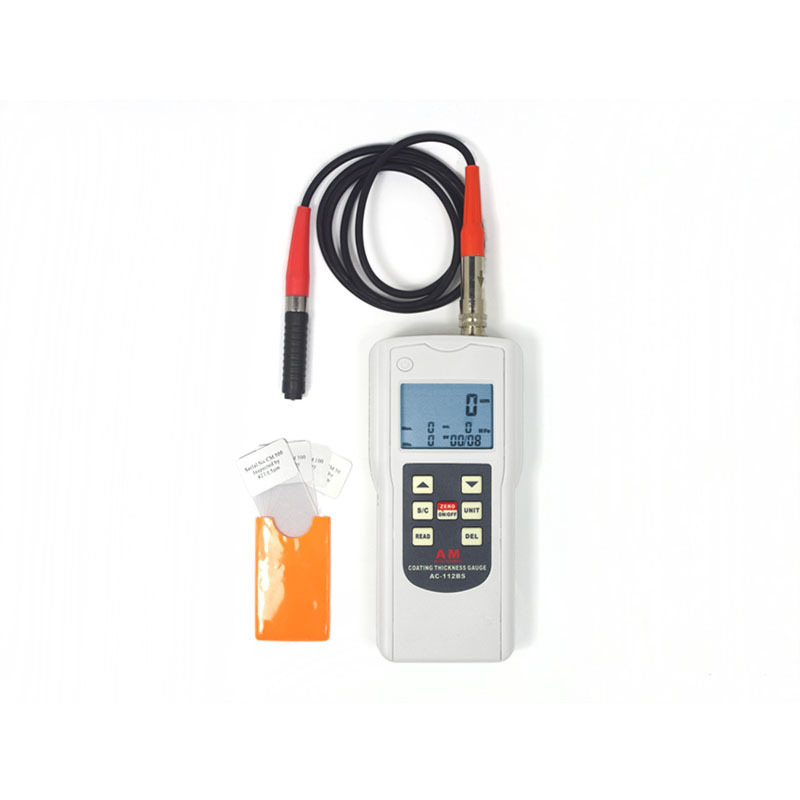

The Statistical Type Coating Thickness Gauge AC-112 Series have two types: Type B ( Integral Type ), Type BS ( Separate Type ). can store 99 groups of the latest measurements. Integral Type suitable for single-hand operation, large probe with large contact surface have better stability, users can get continuous, good repetitive and precise measurements. Separate Type can provide several type probe, measure can be more flexibility. It is a kind of portable measuring instrument, it can quickly, no damage and precise coating, coating thickness measurement. Not only can be used in the laboratory, also can be used in the engineering field. Through the use of different measuring head, but also can meet the needs of a variety of measurement. Widely used in manufacturing, metal processing industry, chemical industry, commodityinspection and testing field. Is the material protection professional.
Technical Data
|
Measuring Range
|
0~1250 um
|
|
|
0~50mil (other range may be specified)
|
|
Resolution
|
0.1 um (0~99.9um)/1 um (over 100um)
|
|
Accuracy:
|
1~3%n or 2.5 um or 0.1mil (Whichever is the greater)
|
|
Minimum Measurement Area
|
6 mm
|
|
Minimal Surface
|
F Type convex1.5 mm / concave 25 mm
|
|
|
NF Type convex 3 mm / concave 50mm
|
|
Operating Condition
|
Temp: 0~50°C /
|
|
|
Humidity: <95%
|
|
Size
|
140x70x30 mm
|
|
Power Supply
|
4x1.5vAAA Um-4 Battery
|
|
Weight
|
130 g (Not including batteries)
|
Standard Delivery
|
Standard Accessories |
Main Unit
|
|
|
Calibration Foils
|
|
|
Substrate ( Iron )
|
|
|
Substrate ( Aluminium )
|
|
|
Carrying Case
|
|
|
Operation Manual
|
|
Optional Accessories
|
USB data output
|
|
|
Bluetooth data output
|
FAQ
If you want to know more details, welcome to contact us.
Lin Gao
Zibo Senyuan Electric Co., Ltd.
Email:senyuan@zbsywm.com
Mobile/WhatsApp: ( 0086) 13869301972
Q: Is there an OEM service?
A: As the trusted and professional supplier, we accept the sample order, even for one piece. Also provide the OEM service, sample order is OK.
Q: Do you support after sales service?
A: Most products we provide warranty of 12months, some with the longer warranty of 24months.
