- Product Details
- {{item.text}}
Quick Details
-
Ice storage capacity:
-
Other, 1250kg
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Koller
-
Dimension(L*W*H):
-
4200mm * 1600mm*1850mm
-
Weight:
-
2000 KG
-
Certification:
-
ce, ISO
-
After-sales Service Provided 1:
-
Free spare parts
-
After-sales Service Provided 2:
-
Field installation, training, maintenance and repair service
-
After-sales Service Provided 3:
-
Online support and video technical support
-
2. Material for ice moulds,water tank:
-
Aluminum Plate
-
3. Refrigeration Components:
-
Danfoss or Castel
-
4. Refrigerant:
-
R22 or R404a or R507
-
5. Electrical components:
-
LG(LS)
-
8. Evaporator for ice tank:
-
Aluminum plate
-
9. Cooling way:
-
water cooling system
Quick Details
-
Ice Shape:
-
ice block
-
Voltage:
-
380V/50HZ/3P or 220V/60HZ/3P
-
Power:
-
18750
-
Ice storage capacity:
-
Other, 1250kg
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Koller
-
Dimension(L*W*H):
-
4200mm * 1600mm*1850mm
-
Weight:
-
2000 KG
-
Certification:
-
ce, ISO
-
After-sales Service Provided 1:
-
Free spare parts
-
After-sales Service Provided 2:
-
Field installation, training, maintenance and repair service
-
After-sales Service Provided 3:
-
Online support and video technical support
-
2. Material for ice moulds,water tank:
-
Aluminum Plate
-
3. Refrigeration Components:
-
Danfoss or Castel
-
4. Refrigerant:
-
R22 or R404a or R507
-
5. Electrical components:
-
LG(LS)
-
8. Evaporator for ice tank:
-
Aluminum plate
-
9. Cooling way:
-
water cooling system

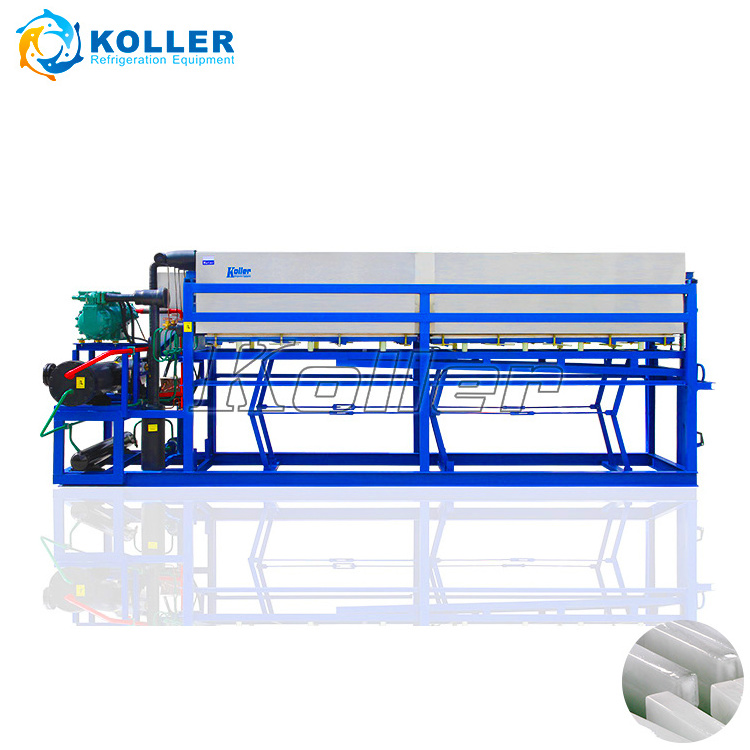

5 tons/day Directly Evaporated Ice Block Making Machine with Aluminum Plate Ice Moulds
Capacity: 5ton/day
Ice shape: block ice
Ice size: 10kg/piece; 25kg/piece;
Ice dimension: 95mm*260mm*500mm; 123mm*350mm*710mm
Ice freezing time: 3 hours per batch; 8 hours per batch;
2. Advantages:
Our DK series ice block machine adopt aluminum plate as ice can, the refrigerant will evaporate inside the aluminum plate so the plate can freeze ice making water quickly. This is the intergrated system, meanwhile, we design the lifting system to harvest ice blocks directly, no need hands to harvest ice blocks one by one.
3. Features:
(1). Edible ice block machine the biggest features is that the large-scale ice blocks no need salty water and other cooling medium during the freezing period.
(2). When after the ice formed, it will dropping into the special ice contact convey device from the ice models, the whole course of ice forming is sanitary, clean, it can reach the edible request.
(3). The machine adopt the cycle heat has harvesting ice technology and direct heat expansion, heating exchange technology, making the product performance become more steady, it has broken the question of the large-scale can't for eat...
4 . Installation for block ice machine:
1). Installing by the user: we will test and install the machine before shipment, all necessary sp are parts, operation manual and CD are provided to guide the installation.
2). Installing by Koller engineers:
- (1) We can send our engineer to assist the installation and provide technical support and train your workers. The end-user should provide accommodation and round-trip ticket for our engineer.
- (2) Before our engineers’ arrival, the installation place, electricity, water and installation tools should be prepared. Meanwhile, we will provide you a Tool List with the machine when delivery.
- (3) All spare parts are provided according to our standard. During installation period, any shortage of parts due to the actual installation site, the buyer is required to afford the cost, such as water pipes.
- (4) 2~ 3 workers are required to assist the installation for big project.
- (5) Any delay due to customer’s reason, it will be charged from the 8 th day, USD100/day for one person as installation fee. Free of charge for one week.
5.Warranty:
- 12 months warranty after delivery.
- Professional after-sales department to provide 24/7 technical support, all complaints should be replied within 24 hours.
- Over 10 engineers available to service machinery overseas.
- Free spare parts replacement within warranty period.
- Beyond guarantee period, we will charge market price for spare parts.
6.Koller Directly Evaporated Ice Block Machine Product Model :
| Model |
Capacity (Tons/24H) |
Compressor Brand | Total Power(KW) | Ice Size(L*W*H)(MM) |
Measurement
|
| DK10 | 1 | Manevrop/Bizter/Copeland/Refcomp | 6 | 125*950*500 | 2000*1200*1350 |
| DK20 | 2 | Manevrop/Bizter/Copeland/Refcomp | 9 | 125*950*500 | 2000*1200*1850 |
| DK30 | 3 | Bizter/Copeland/Refcomp | 14 | 100*200*570 | 3000*1200*1850 |
| DK50 | 5 | Bizter/Copeland/Refcomp | 25 | 100*200*570 | 4200*1600*1850 |
| DK60 | 6 | Bizter/Copeland/Refcomp | 32 | 100*200*570 | 4200*1600*1850 |
| DK80 | 8 | Bizter/Copeland/Refcomp | 40 | 150*320*570 | 7000*1400*1850 |
| DK100 | 10 | Bizter/Copeland/Refcomp | 100 | 150*320*570 | 7000*1800*1850 |
7 . Why choose us?
- So far, we have exported ice machines to 150 countries in the world.
- Excellent Brand of Chinese Ice Machine Industry.
- The Drafting Committee of National Ice Machine Industry Standard .
- Produce & Academic Research Strategy Cooperating Partner with Tsinghua University .
- Independent after-sales department , 8 engineers are ready to service abroad.
