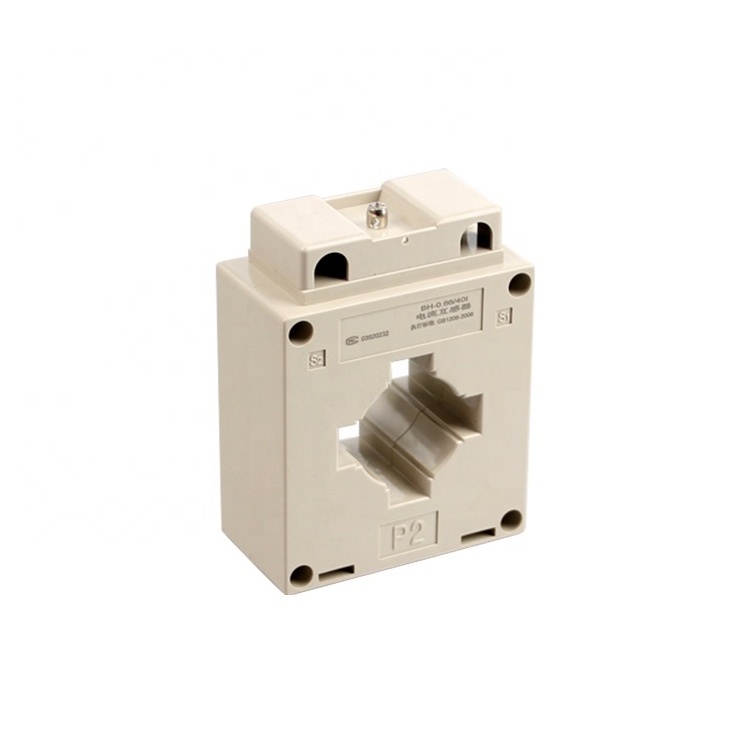

Manufacturer Electronic Small Current Transformer High quality low voltage MSQ-40 400/5A CT current transformer for switch gear

Manufacturer Electronic Small Current Transformer High quality low voltage MSQ-40 400/5A CT current transformer for switch gear

FOB Reference Price: Get Latest Price

≥5 Pieces

US $2.5

≥500 Pieces

US $2.3

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Certification:: CE.CCC

Rated Voltage:: 0.66KV

Usage:: Current

Phase:: Single

Coil Structure:: TOROIDAL

Coil Number:: Single Layer

Rated Secondary Voltage:: 380

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: CNTOPSUN/OEM

Model Number:: MSQ-60

Certification:: CE.CCC

Rated Voltage:: 0.66KV

Usage:: Current

Phase:: Single

Coil Structure:: TOROIDAL

Coil Number:: Single Layer

Rated Secondary Voltage:: 380

Product Description

CNTOPSUN Bh-0.66 Window Size 40mm Class 0.5 0.2 Low Voltage Current Transformer Price - Buy Low Voltage Current Transformer,Current Transformer,Current Transformer Price Product on Alibaba.com

Place of Origin :Zhejiang, China (Mainland) Brand Name:Cntopsun

Model Number:BH0.66-40I Usage:Current
Phase:Single Coil Structure: Toroidal Coil Number:Autotransformer

Certification:ISO9001. CEStandard:IEC60044-1, GB/T1208 Frequency:50/60Hz

Material:ABS Current range:100A ~ 800A

Rated voltage:660V and below Secondary Current:5A 1A

Working Temperature Range:-20℃ ~ +60℃ Window size:40mm

BH, LMK, MSQ- CT

LOW VOLTAGE CURRENT TRANSFORMER

1. Overview :

Low voltage current transformer is mainly used for indoor, For the rated voltage of 0.66kV and below, Rated frequency 50 /60 Hz AC circuit, As the current electric energy measurement and relay protection .The product is a new shell type current transformer, The product is a new shell type current transformer, its installation method can use bus or fixed plate fixed installation method, Suitable for any direction installation, A wire for the bus or cable. Product performance in line with the GB - 1208, and passed the CE certification.

2. Technical specification

CT consist of primary winding, secondary winding, magnetic core and insulated body. The high-grade silicon steel core is annealed, varnished then insulated with polycarbonate core caps. The secondary winding is toroidally wound by high precision semi-automatic machinery. For the tape wound ring type current transformer, the PEW coated windings are then covered with elephantite paper, varnished and double-tapped with PVS tapes. For the encapsulated type current transformer, the windings are enclosed in a compact and heat resistant split cap.

3. Product Features:

3.1 Magnetic circuit design, advanced compensation methods, technology skills, safe and reliable performance, compact appearance;

3.2 Made of high strength flame retardant ABS, fully enclosed structure, flame retardant grade V1;

3.3 High quality Internal oriented silicon steel core

3.4 Ensure safety wire strict according with the economic current density

3.5 Advanced and reliable testing equipment to ensure quality standards

3.6 Single busbar or double barbus optional

3.7 Standard accuracy: 0.5 ( optional 0.2 or 0.2S )

3.8 Secondard current 5A or 1A

4. Model and rate current ( Single BUSBAR )

BH0.66-20I	BH0.66-30I	BH0.66-40I	BH0.66-50I	BH0.66-60I	BH0.66-80I	BH0.66-100I
15/5A	30/5A	100/5A	300/5A	400/5A	750/5A	800/5A
20/5A	50/5A	150/5A	400/5A	500/5A	800/5A	1000/5A
30/5A	75/5A	200/5A	500/5A	600/5A	1000/5A	1200/5A
50/5A	100/5A	250/5A	600/5A	750/5A	1200/5A	1500/5A
75/5A	150/5A	300/5A	750/5A	800/5A	1500/5A	2000/5A
100/5A	200/5A	400/5A	800/5A	1000/5A	2000/5A	2500/5A
	250/5A	500/5A	1000/5A	1200/5A	2500/5A	3000/5A
	300/5A	600/5A		1500/5A
	400/5A	750/5A
		800/5A
