Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
FILN
-
Model Number:
-
FLM19-FJ-E-3
-
Mounting hole size:
-
19mm
-
Material:
-
Stainless steel, zinc alloy aluminum or nickel plated brass
-
Swtich Combination:
-
1NO1NC or 2NO2NC
-
Switch Function:
-
Momentary or Latching
-
Connecting way:
-
solder pins or wire soldering
-
Approval:
-
CE, RoHS, ISO9001
-
LED color:
-
red, green, blue, whilte, yellow, bi-color, tri-color
-
LED voltage:
-
3v,6v,12v,24v,36v,110v,220v,380v
-
OEM Service:
-
Available
-
Certification:
-
CE UL
Quick Details
-
Protection Level:
-
IP67, IP67, IK10
-
Max. Current:
-
5A
-
Max. Voltage:
-
250V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
FILN
-
Model Number:
-
FLM19-FJ-E-3
-
Mounting hole size:
-
19mm
-
Material:
-
Stainless steel, zinc alloy aluminum or nickel plated brass
-
Swtich Combination:
-
1NO1NC or 2NO2NC
-
Switch Function:
-
Momentary or Latching
-
Connecting way:
-
solder pins or wire soldering
-
Approval:
-
CE, RoHS, ISO9001
-
LED color:
-
red, green, blue, whilte, yellow, bi-color, tri-color
-
LED voltage:
-
3v,6v,12v,24v,36v,110v,220v,380v
-
OEM Service:
-
Available
-
Certification:
-
CE UL
[NEW]

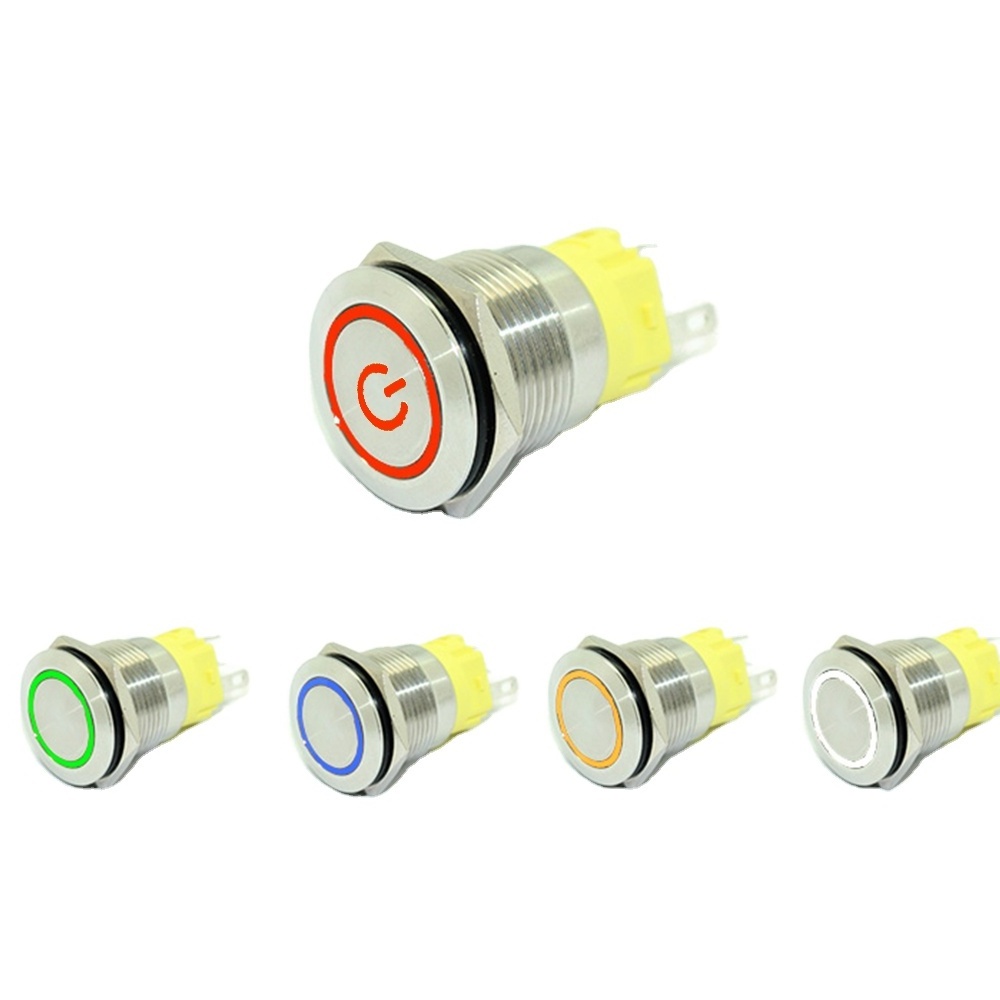

FILN 12mm 16mm 19mm 22mm 25mm 30mm stainless steel/ nickel plated with brass ring led illuminated metal push button switch is rather popular in the market all over the world.
They are much more beautiful and have better operation experience compared to classical one. Customization service is available.
We control every aspect for you!
| Items | Parameter |
| Install Hole Diameter | 19mm |
| Swtich Function | 1NO1NC/2NO2NC |
| Operation Type | Momentary/ Latching |
| Solder pin type | Connection terminal 2.8*0.5 |
| Rating | 5A/250VAC |
| Dielectric Intensity | 2000VAC |
| Contact Resistance | ≤50mΩ |
| Insulation resistance |
≥1000MΩ |
| Electrical Life |
≥50,000cycles |
| Mechanical Life |
≥500,000cycles |
| Temperature |
-20℃~+55℃ |
| Protection Level |
IP67, IK10 |
| Operation Force |
about 3~5N |
| Operation Stroke | about 2.5mm |
| Panel thickness | 1-10mm |
| Nut torque | 5-14Nm |
| LED voltage | 3-720VAC/DC |
| LED rated current | 20mA |
| LED color | red/blue/green/yellow/white/bi-color/tri-color |
