Quick Details
-
Brand Name:
-
Twilight Optic
-
Use:
-
Data Center/FTTH/FTTX/FTTB
-
Warranty Time:
-
Limited Life
-
Product name:
-
12Cores MPO Push Pull tab Trunk Cables
-
Pre-Terminated Connector:
-
12 Fibers Female MPO With Push Pull tab
-
Polished:
-
UPC, APC
-
Fiber Count:
-
12fibers or 8 fibers and 24 fibers for option
-
Fiber Mode:
-
MM-OM3 or SM for option
-
Jacket Color:
-
Aqua
-
Jaket Material:
-
PVC, LSZH
-
Insertion Loss:
-
<0.35db or 0.7db
-
Return Loss:
-
>30db
-
Warranty:
-
Limited Life
Quick Details
-
Type:
-
FTTx Solutions
-
Model Number:
-
TW-MPO-OM3-DL
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
Twilight Optic
-
Use:
-
Data Center/FTTH/FTTX/FTTB
-
Warranty Time:
-
Limited Life
-
Product name:
-
12Cores MPO Push Pull tab Trunk Cables
-
Pre-Terminated Connector:
-
12 Fibers Female MPO With Push Pull tab
-
Polished:
-
UPC, APC
-
Fiber Count:
-
12fibers or 8 fibers and 24 fibers for option
-
Fiber Mode:
-
MM-OM3 or SM for option
-
Jacket Color:
-
Aqua
-
Jaket Material:
-
PVC, LSZH
-
Insertion Loss:
-
<0.35db or 0.7db
-
Return Loss:
-
>30db
-
Warranty:
-
Limited Life

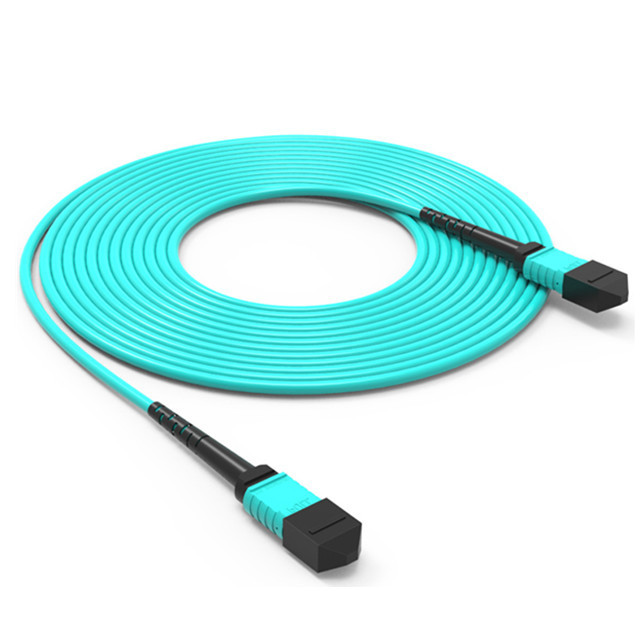

Fiber Optic Manufacturing Waterproof MTP Trunking Optical Cord Multimode MPO Fibre Patch Cable
Product details
| Product name | 12Cores MPO Push Pull tab Trunk Cables |
| Pre-Terminated Connector | 12 Fibers Female MPO With Push Pull tab |
| Polished | UPC, PC |
| Fiber Count | 12fibers or 8 fibers and 24 fibers for option |
| Fiber Mode | MM-OM3 or SM for option |
| Jacket Color | Aqua |
| Jaket Material | PVC, LSZH |
| Insertion Loss | <0.35db or 0.7db |
| Return Loss | >30db |
| Warranty | Limited Life |
| Product Keywords | cable trunking,optical patch cord,mpo fibre patch cable |
MPO patch cord is a type of fiber optic cable use for high-speed data transmission. MPO means”Multi-fiber Push-On/Pull-off”,as a connector type that allows multiple fibers to be connected and disconnected at once.
MPO patch cord typically consists of a single cable with an MPO connector on each end. The connector designing to plug into a corresponding MPO port, which is typically found on high-density fiber optic equipment such as switches, routers, and servers.
MPO Patch Cord Line Sequences
Polarity A (straight through) :
The positions of the fibers on both ends of the MPO patch cable are the same, it means, the “1” on one end corresponds to the “1” on the other end, and the “12” on one end corresponds to the “12” on the other end. The keys at both ends face opposite directions. “key up” corresponds to “key down”.
Polarity B (staggered type) :
The positions of the fibers on both ends of the MPO patch cable are opposite, that is, the “1” on one end corresponds to the “12” on the other end, and the “12” on one end corresponds to the “1” on the other end. The key orientation at both ends is the same, that is, “key up” corresponds to “key up”, and “key down” corresponds to “key down”.
Type C (paired staggered type) :
MPO patch cord cross a pair of adjacent fibers. That is, core “1” on one end corresponds to “2” on the other end, and core “12 “on one end corresponds to “11” on the other end. The keys at both ends face opposite directions. “key up” corresponds to “key down”
High density architectures
Storage area networking fiber channel
Parallel optics
Infiniband
More types for Option:
PACKAGE:
DELIVERY TIME:
3-20 days after confirming order,detail delivery date s hould be decided according to production season and order quantity.
Each product is packed in standard carton,The outer box is wrapped with plastic film,which is stronger and against rain.Wooden pallets can be customized to customer requirements and packed together.
