Quick Details
-
Brand Name:
-
Sanyuantang
-
Voltage:
-
110V/220V/230V
-
Power:
-
16kw
-
Dimension(L*W*H):
-
1600*600*1600
-
Weight:
-
250 KG
-
Product name:
-
Honey Processing Equipment
-
Material:
-
Stainless Steel
-
Color:
-
Customer's request
-
Capacity:
-
1.2-1.5t/8h
-
Motor:
-
Chinese Famous Brand
-
MOQ:
-
1 Set
-
Usage:
-
Honey Extrator
-
Model:
-
FM400 600
-
Local Service Location:
-
None
-
Certification:
-
ISO9001:2008
Quick Details
-
Marketing Type:
-
New Product 2022
-
Production Capacity:
-
99%
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Sanyuantang
-
Voltage:
-
110V/220V/230V
-
Power:
-
16kw
-
Dimension(L*W*H):
-
1600*600*1600
-
Weight:
-
250 KG
-
Product name:
-
Honey Processing Equipment
-
Material:
-
Stainless Steel
-
Color:
-
Customer's request
-
Capacity:
-
1.2-1.5t/8h
-
Motor:
-
Chinese Famous Brand
-
MOQ:
-
1 Set
-
Usage:
-
Honey Extrator
-
Model:
-
FM400 600
-
Local Service Location:
-
None
-
Certification:
-
ISO9001:2008
Introduction:
Currently, honey processing main used mechanical filters and low-temperature vacuum concentrated to remove impurities and excess water, Get a higher degree of vacuum systems and the reasonable structure of the low temperature evaporation device is the key to the processing technology of bee products. This equipment has fully realized honey enrichment process special requirements, and to meet the aspirations of bee products processing enterprises.
Technological process:
Technical parameters:
|
Model |
FM-600 |
FM-400 |
|
Production capacity |
1.2-1.5t/8h |
0.4-0.5t/8h |
|
Machine dimension |
1750*600*1660 |
1600*500*1555 |
|
Tank diameter |
600mm |
400mm |
|
The overall volume |
140L |
70L |
|
Effective volume |
120L |
60L |
|
Preheat tank power |
6KW |
|
|
Vacuum concentration tank power |
9KW |
|
Structural drawing:
1. Thermometer 2. Pipe filter 3. Exhaust port 4. Thermometer 5. Viewing port
6. Vacuum gauge 7. Electric control box 8. Condenser pipe 9. Concentrate tank
10. Water outlet 11. Water outlet 12. Honey outlet 13. Vacuum pump
14. Heater 15. Water outlet 16. Pedestal 17. Heater 18. Preheating tank
19. Filter net 20. Motor
Features
:
1.This set of Equipment are made of 304 stainless steel, easy to operate, reliable, efficient, vacuum suction honey.
2.They can achieve high vacuum and low concentration temperature is ideal for honey processing equipment.
3.Apparatus comprising: a preheating tank, filter, concentrate tank, a condenser, a vacuum pump.
4.The
honey thickener
machine can reach high vacuity and lower thickening temperature.
After concentrating the materials will not change color, not change flavor, the quality of materials after concentrating will be very good.
5.Good designed of the structure make the machine small, low noise, easy to operate.

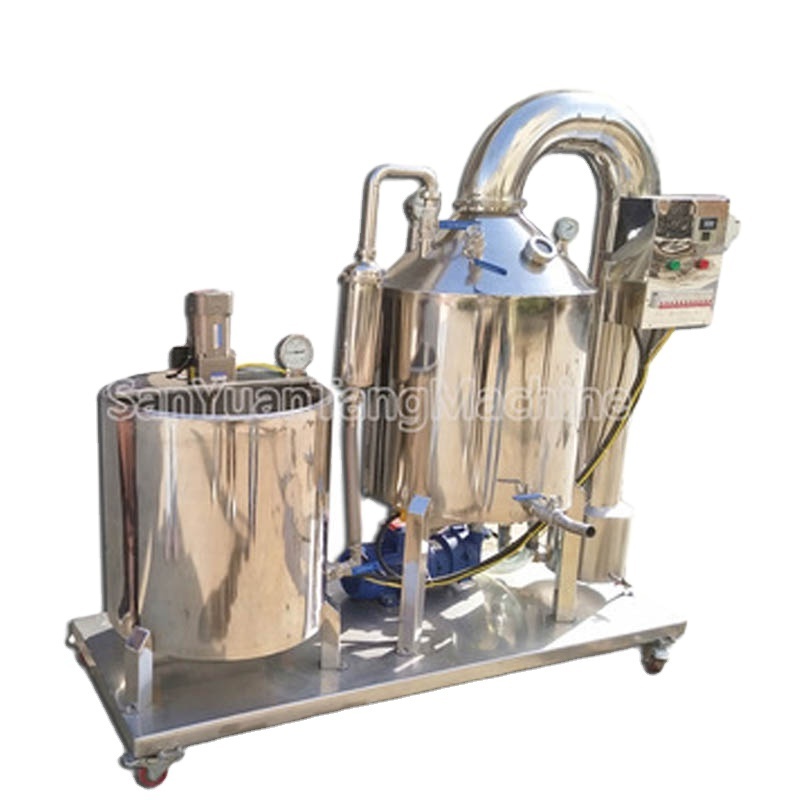

Product pictures:
