Quick Details
-
Power:
-
Different
-
Min. Lifting Height:
-
No limit
-
Table Size:
-
Different
-
Overall Dimensions:
-
Different
-
Weight:
-
1235 kg
-
Marketing Type:
-
Hot Product 2022
-
Description:
-
high quality scissor lift
-
Painting color:
-
According to your demand
-
Industrial voltage:
-
According to your demand
-
GB/T 19001-2000 idt ISO 9001:2000:
-
Pass
-
GB/T 24001-2004 idt ISO 14001:2004:
-
Pass
-
GB/T 28001-2001, OHSAS 18001:1999:
-
Pass
-
Application:
-
Maintenance
-
Keywords:
-
Hydraulic Vehicle-mounted Elevating Platform
-
Color:
-
Customers' Requirements
-
Product name:
-
Electric lifting scaffolding load bearing 500kg
Quick Details
-
Warranty:
-
1.5 years
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
YunTian
-
Power:
-
Different
-
Min. Lifting Height:
-
No limit
-
Table Size:
-
Different
-
Overall Dimensions:
-
Different
-
Weight:
-
1235 kg
-
Marketing Type:
-
Hot Product 2022
-
Description:
-
high quality scissor lift
-
Painting color:
-
According to your demand
-
Industrial voltage:
-
According to your demand
-
GB/T 19001-2000 idt ISO 9001:2000:
-
Pass
-
GB/T 24001-2004 idt ISO 14001:2004:
-
Pass
-
GB/T 28001-2001, OHSAS 18001:1999:
-
Pass
-
Application:
-
Maintenance
-
Keywords:
-
Hydraulic Vehicle-mounted Elevating Platform
-
Color:
-
Customers' Requirements
-
Product name:
-
Electric lifting scaffolding load bearing 500kg
Product Description

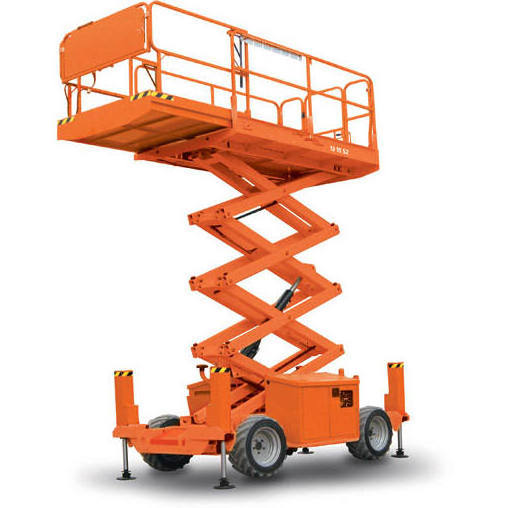

Self-propelled scissor-type aerial working platform
, which has the function of automatic walking, can be in different working conditions, fast, slow walking, working at height can operate the machine to complete the continuous lifting, forward, backward, steering and other actions, the whole machine is compact and flexible, small size, light weight, no noise, no pollution, can be randomly in and out of the manned elevator, specially tailored for the mezzanine floor of the building ascent operation.
1、The foot-operated extension platform can be spread to the working point quickly.
2、Foldable fence reduces the size of the whole machine.
3、Convenient to work in narrow space.
4、25% of the climbing ability, can smoothly climb up the slope.
5、Fault code is automatically displayed for easy maintenance.
Specification
|
Type
|
GTJZ06A
|
GTJZ06
|
GTJZ08A
|
GTJZ08
|
GTJZ10
|
GTJZ12
|
GTJZ14
|
|
Max. working height(m)
|
8
|
8
|
10
|
10
|
12
|
13.8
|
15.8
|
|
Safe Working Load(kg)
|
380
|
550
|
230
|
450
|
320
|
320
|
227
|
|
Size of working platform(m)
|
2.29*0.81*1.1
|
2.29*1.13*1.1
|
2.29*0.81*1.1
|
2.29*1.13*1.1
|
2.29*1.13*1.1
|
2.29*1.13*1.1
|
2.29*1.13*1.1
|
|
Wheelbases(m)
|
1.89
|
1.89
|
1.89
|
1.89
|
1.89
|
1.89
|
1.89
|
|
Lifting speed(m/min)
|
3-5
|
3-5
|
3-5
|
3-5
|
3-5
|
3-5
|
3-5
|
|
Tires(mm)
|
φ381*217
|
φ381*217
|
φ381*217
|
φ381*217
|
φ381*217
|
φ381*217
|
φ381*217
|
|
Weight(kg)
|
1880
|
2050
|
2030
|
2190
|
2500
|
2950
|
3390
|
Details Images
safety certification：
Conforms to the European Union EN280 standard and obtains CE certification.
stepless gearbox
All movements are controlled on the workbench with the operating handle, and the motor is stepless variable speed. Effectively extend the service life of the battery and motor, the motor only consumes the energy when working.
Extended platform.
The platform can be moved out, expanding the working range and meeting the special needs of some users.
Green and environmentally friendly.
the machine can be safe and quiet for indoor or outdoor work.
Packing & Delivery
Package:
1. Electric parts are packed by high quality plywood crate, to reduce distortion in conveying;
2. Main beams, end beams and electric hoist are packed by plastic woven cloth. It can reduce abrasion when transport.
Delivery:
1. If the size of whole crane are suitable for container ship, usually by container;
2. If the size is too big, usually by bulk ship or by container after truncation;
3. Transport ways are based on reducing cost for you and keep the crane performance!
